Pioneer Lead Removal System

Whole-house NSF 53 certified lead removal - plus PFAS, chlorine, chloramine & cyst protection

Video thumbnail
Watch This Before Buying Meet Aidan, your water treatment expert
Trusted by 10,000+ Homeowners
|
🇺🇸 Made in USA

Pioneer Lead Removal System

Whole-house NSF 53 certified lead removal - plus PFAS, chlorine, chloramine & cyst protection

Video thumbnail
Watch This Before Buying Meet Aidan, your water treatment expert
Free Shipping Included
Arrives ... to
In Stock — Ships from Ohio warehouse by
Aidan
Not sure if this is the right lead filter for your water? Lead contamination depends on your plumbing, water chemistry, and local infrastructure. Send us your water test results and Aidan will review them personally - he'll tell you whether the Pioneer is the right fit or if a different approach makes more sense for your situation.

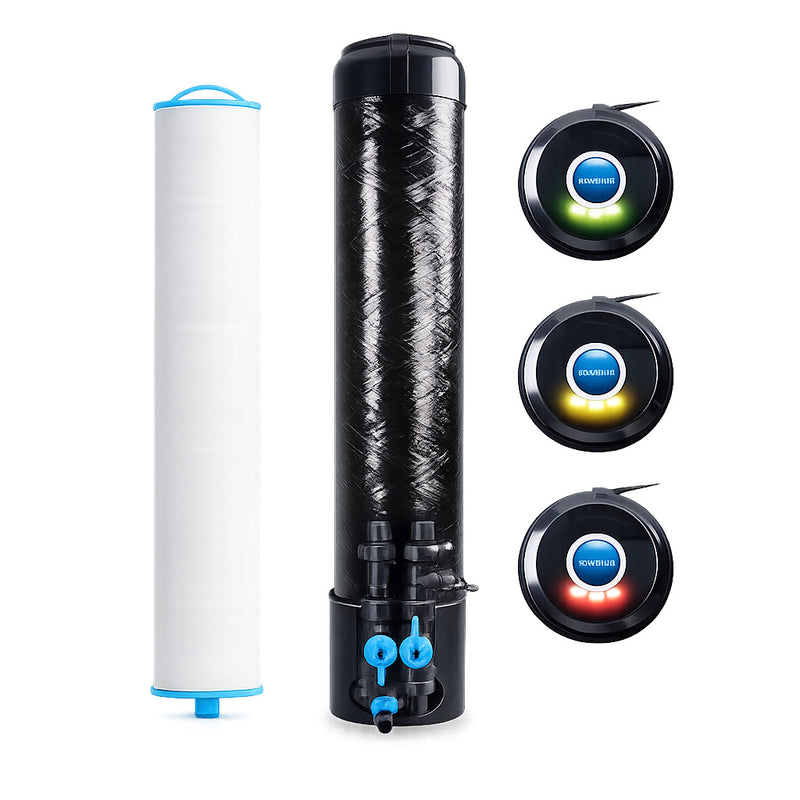

Complete Pioneer Lead Removal System

  • Enpress E3-M cartridge tank (8" diameter x 40" tall) - 100% non-metallic, NSF 44 and 61 listed, tested to 150 PSI with 4:1 burst safety factor
  • CT-05-CB-AMCYL 0.5 micron carbon block filter - NSF/ANSI 53 certified for lead and cyst reduction, NSF/ANSI P473 certified for PFOA/PFOS removal
  • Integrated bypass valve with 1" MNPT connectors - no gluing required, standard threaded fittings
  • Metered umbrella cap with LED status indicator - tracks water usage and alerts you when it's time to replace the filter (color-coded notification)
  • 3/8" drain fitting with shut-off - integrated into the inlet side for draining during filter change-out
  • Snap-ring top cap - no tools needed for filter replacement
  • Free shipping to all lower 48 states
Recommended: Install a sediment pre-filter upstream to protect the carbon block from particulates and extend cartridge life. Especially important for well water applications.

System Overview

System TypeWhole-house cartridge tank filtration (point-of-entry)
Filter Type0.5 micron certified carbon block (CT-05-CB-AMCYL)
Tank SizeApprox. 8" diameter x 40" tall
Connections1" NPT inlet/outlet
Max Flow Rate15 GPM (lead removal rated at 4.51 GPM)
Operating Pressure20 - 125 PSI
Operating Temperature34 - 120 F
ElectricalGrounded 110V outlet + 3 AAA batteries (for LED meter)
Pressure ReliefYes - button on top cap
System Weight~41 lbs (tank 21 lbs + cartridge 20 lbs)
Construction100% non-metallic - will not rust
Made InUSA

Certifications

NSF/ANSI 53 NSF/ANSI P473 NSF 44 & 61 IAPMO R&T
NSF/ANSI 53Certified for lead and cyst reduction (IAPMO R&T)
NSF/ANSI P473Certified for PFOA and PFOS removal
NSF 44 & 61Materials and structural integrity (NSF Intl.)
Burst TestTested to 150 PSI with 4:1 safety factor

Contaminant Removal Performance

Lead: 99.62% (100K gal at 4.51 GPM)
PFOA/PFOS: 97.8% (100K gal at 4.51 GPM)
Chlorine: >90% (300K gal at 15 GPM)
Chloramine: >85% (150K gal at 8 GPM)
Giardia/Cryptosporidium: >99.95%
Sediment: 0.5 micron filtration

Cartridge Life

Lead/PFOA/PFOS100,000 gallons at 4.51 GPM
Chlorine>300,000 gallons at 15 GPM
Chloramine>150,000 gallons at 8 GPM
No drain line. No programming. Standard 1" NPT plumbing. The Pioneer installs inline on your main water line. Just needs a grounded 110V outlet nearby for the LED usage meter.

Installation Steps

  1. Shut off the main water supply and relieve pressure at a nearby faucet
  2. Cut into the main water line and install the Pioneer's 1" NPT connections (standard threaded fittings, no gluing)
  3. Connect the bypass valve using the included 1" MNPT elbow or straight connectors
  4. Connect the 3/8" drain fitting (John Guest quick-connect) to a nearby drain or bucket for cartridge change-outs
  5. Plug the LED meter into a grounded 110V outlet and insert 3 AAA batteries
  6. Open the bypass slowly, switch to service position, and run water for 10-15 minutes to flush carbon fines

Recommended System Placement

City Supply / Well Pressure Tank (well) Sediment Pre-Filter Pioneer Lead Filter (this unit) House
Need help? Call or text Aidan at 800-460-5810 - available 7 days a week for installation guidance. The Pioneer is designed for DIY installation, but we're here to walk you through it step by step.
The LED meter does the thinking for you. The built-in metered umbrella cap tracks water usage and provides a color-coded status indicator, so you know exactly when the cartridge needs replacing.

Maintenance Schedule

  • LED Indicator Replace the carbon block cartridge when the LED meter signals replacement. Typical life: 100,000 gallons for lead/PFOA/PFOS removal, up to 300,000 gallons for chlorine removal. Actual life depends on your water quality and usage.
  • Every 3-6 Months Replace sediment pre-filter cartridge (if using one upstream). Protects the Pioneer's 0.5 micron carbon block from clogging with sediment, extending cartridge life.
  • Annual Replace 3 AAA batteries in the LED meter unit.

Cartridge Replacement

The Pioneer uses snap-ring technology - no tools required. Press the red pressure relief button, pull the snap ring, lift off the top cap, and swap the cartridge. The replacement cartridge is the CT-05-CB-AMCYL (Enpress part number). Contact us for replacement cartridge pricing and availability.

Important: If you have high chlorine or chloramine levels in your water, they will consume the carbon block capacity faster, reducing the cartridge's lead removal life. Consider adding a whole-house carbon filter upstream to handle chlorine/chloramine and let the Pioneer focus on lead and PFAS removal. This can extend your Pioneer cartridge life significantly.
Questions about when to replace? Call or text 800-460-5810. We can help you estimate cartridge life based on your water test results and household usage.

Video Guides

Watch how Aidan helps homeowners solve water quality problems has 32 years of industry experience.


Why Choose the Pioneer for Whole-House Lead Removal?

NSF 53 Certified Lead Removal for Your Entire Home

Lead in drinking water is a serious health risk with no safe exposure level. It enters your water through corroding pipes, solder joints, and brass fixtures - not from your water source. Homes built before 1986 are at highest risk, but lead service lines affect communities nationwide. The EPA action level is 15 ppb, but health experts increasingly recommend treatment at any detectable level. The Pioneer Lead Removal System is one of the few whole-house filters independently certified to remove both soluble and particulate lead. The 0.5 micron carbon block removes 99.62% of lead at 4.51 GPM for 100,000 gallons - certified by IAPMO R&T to NSF/ANSI Standard 53. It also carries NSF P473 certification for PFOA/PFOS removal at 97.8%, plus removes >99.95% of Giardia and Cryptosporidium cysts. Unlike standard cartridge housings that use coarse 5-25 micron filters, the Pioneer's 0.5 micron carbon block uses ionic bonding to capture dissolved lead that passes through ordinary filters. The built-in LED metered cap tracks usage and signals when it's time to replace the cartridge. No guessing, no calendar reminders. Designed for both well water and city water applications.
NSF 53 Certified for Lead
NSF P473 for PFOA/PFOS
99.62% Lead Removal
0.5 Micron Carbon Block
LED Usage Meter
No-Tool Cartridge Swap
Made in USA
Mid Atlantic Water Trust Logos
Feature Our System Others
Lead Removal 99.62% (NSF 53 Certified) Varies - Often Uncertified
PFOA/PFOS Removal 97.8% (NSF P473 Certified) Not Certified or Tested
Cyst Removal >99.95% (Giardia, Crypto) Not Rated for Cysts
Filtration Level 0.5 Micron Carbon Block 5-25 Micron Typical
Filter Life Tracking LED Metered Status Display Manual Guessing
Cartridge Replacement No-Tool Snap Ring Design Wrench/Tools Required
Certifications NSF 53, P473, 44, 61 + IAPMO Limited or None
Expert Support 7-Day Phone, Text & Email Limited or None
Construction 100% Non-Metallic Metal Housings (Corrosion Risk)
Lead Removal
✅ Us 99.62% (NSF 53 Certified)
❌ Them Varies - Often Uncertified
PFOA/PFOS Removal
✅ Us 97.8% (NSF P473 Certified)
❌ Them Not Certified or Tested
Cyst Removal
✅ Us >99.95% (Giardia, Crypto)
❌ Them Not Rated for Cysts
Filtration Level
✅ Us 0.5 Micron Carbon Block
❌ Them 5-25 Micron Typical
Filter Life Tracking
✅ Us LED Metered Status Display
❌ Them Manual Guessing
Cartridge Replacement
✅ Us No-Tool Snap Ring Design
❌ Them Wrench/Tools Required
Certifications
✅ Us NSF 53, P473, 44, 61 + IAPMO
❌ Them Limited or None
Expert Support
✅ Us 7-Day Phone, Text & Email
❌ Them Limited or None
Construction
✅ Us 100% Non-Metallic
❌ Them Metal Housings (Corrosion Risk)
Aidan

Expert Lead & Water Quality Support

From choosing the right system to installation guidance to interpreting water test results, Aidan provides hands-on support at every step. Real person, real expertise, 29+ years of water treatment experience. No bots, no scripts.

📞 Call Us 800-460-5810
✉️ Email Support support@midatlanticwater.net
🕒 Live Hours 7 days a week

Frequently Asked Questions

Yes. The Pioneer is a point-of-entry (POE) system that installs on your main water line. Every tap, shower, and appliance in your home gets filtered water. It removes 99.62% of both soluble (dissolved) and particulate lead at 4.51 GPM for 100,000 gallons. Soluble lead is invisible, odorless, and tasteless - you can't detect it without testing, which is why whole-house treatment at the source is important.

Yes. The Pioneer's carbon block filter is independently tested and certified to NSF/ANSI P473 for PFOA and PFOS removal, achieving 97.8% reduction at 4.51 GPM for 100,000 gallons. It also removes chlorine (>300,000 gallon capacity), chloramine (>150,000 gallon capacity), and >99.95% of Giardia and Cryptosporidium cysts.

The Pioneer includes a built-in metered umbrella cap with an LED status indicator. It tracks your water usage in real time and provides a color-coded visual notification when it's time to replace the cartridge. No guessing or calendar reminders needed - the system tells you.

Both. Lead contamination comes from your home's plumbing (pipes, solder, fixtures), not the water source itself. The Pioneer is effective on both well water and city water. For city water with chlorine or chloramine, the system handles those too - though high chlorine levels consume carbon capacity faster. Adding a dedicated carbon filter upstream can extend the Pioneer's lead removal life.

Extremely easy. The Pioneer uses Enpress's patented snap-ring technology - no tools required. Press the red pressure relief button, pull the snap ring, lift off the top cap, and swap the cartridge. The integrated drain fitting lets you drain the tank before opening, so there's no mess. The whole process takes about 15 minutes.

The Pioneer carries more third-party certifications than most competing systems. It's certified by IAPMO R&T to NSF/ANSI Standard 53 for lead and cyst reduction. It's also certified to NSF/ANSI P473 for PFOA/PFOS removal. The cartridge tank housing is NSF 44 and 61 listed for materials and structural integrity, and has been burst-tested to 150 PSI with a 4:1 safety factor.

Yes. The Pioneer uses standard 1" NPT threaded connections - no gluing, no special fittings. The included bypass valve comes with 1" MNPT connectors ready to go. You'll need to cut into your main water line, which is standard residential plumbing work. If you're comfortable with basic plumbing, you can do this in a few hours. Call or text Aidan at 800-460-5810 if you need help - we walk people through installations every day.

Cartridge life depends on which contaminant you're targeting: 100,000 gallons for lead and PFOA/PFOS removal, over 300,000 gallons for chlorine, and over 150,000 gallons for chloramine. For a typical household of 2-4 people using about 80-120 gallons per day, the cartridge lasts roughly 2-3 years for lead removal. The LED meter tracks usage so you don't have to guess.

Customer Reviews
0.0 Be the first to review this item
5 ★
0%
0
4 ★
0%
0
3 ★
0%
0
2 ★
0%
0
1 ★
0%
0
Write a Review Ask a Question
Pioneer Lead Removal System
Pioneer Lead Removal S... $1,895.00

Why the Pioneer Costs More Than Basic Filters

NSF Certified Lead Removal vs Uncertified Alternatives

What You Get With Budget Lead Filters

Budget lead filters use standard carbon or sediment cartridges that aren't tested or certified for lead removal. Without NSF 53 certification, there's no guarantee the filter actually removes lead from your water. Many systems claim to 'reduce' lead without specifying to what level or under what conditions.

Cheap cartridge housings use 5-25 micron filters that can't remove soluble (dissolved) lead at all - they only catch large particles. Since soluble lead is the dominant form in most drinking water and is invisible, odorless, and tasteless, a filter that misses it provides false peace of mind.

The Real Cost Comparison

Budget Cartridge Filter
$200-500
  • Lifespan: Fails in 3-4 years
  • Result: Frequent repairs, poor water quality, leaks
  • Support: None
$0.55-1.37/day (1 year filter life)
Best Long-Term Value
Pioneer Lead Removal System
$1,895
  • Lifespan: Lasts 15+ years
  • Result: Done right the first time, peace of mind
  • Support: Lifetime USA Support
$1.74-2.60/day (2-3 year cartridge life)

A typical household uses 80-120 gallons per day. At 100,000 gallons of lead removal capacity, the Pioneer cartridge lasts roughly 2-3 years. That works out to about $1.74-2.60 per day for certified whole-house lead and PFAS protection. Budget systems may cost less upfront, but without certified removal you're paying for a filter that may not actually protect your family.

What You Get With the Pioneer

The Pioneer uses a purpose-built 0.5 micron carbon block with binders specifically designed to create ionic bonds with soluble lead. It's independently tested and certified by IAPMO R&T to NSF/ANSI Standard 53 for lead and by NSF to P473 for PFOA/PFOS - meaning real third-party verification of performance, not just marketing.

The Enpress cartridge tank is 100% non-metallic (no corrosion risk), includes an integrated bypass and metered umbrella cap with LED status indicator, and uses snap-ring technology for tool-free filter changes. You get 7-day-a-week expert support from real water treatment professionals with 29+ years of experience.
