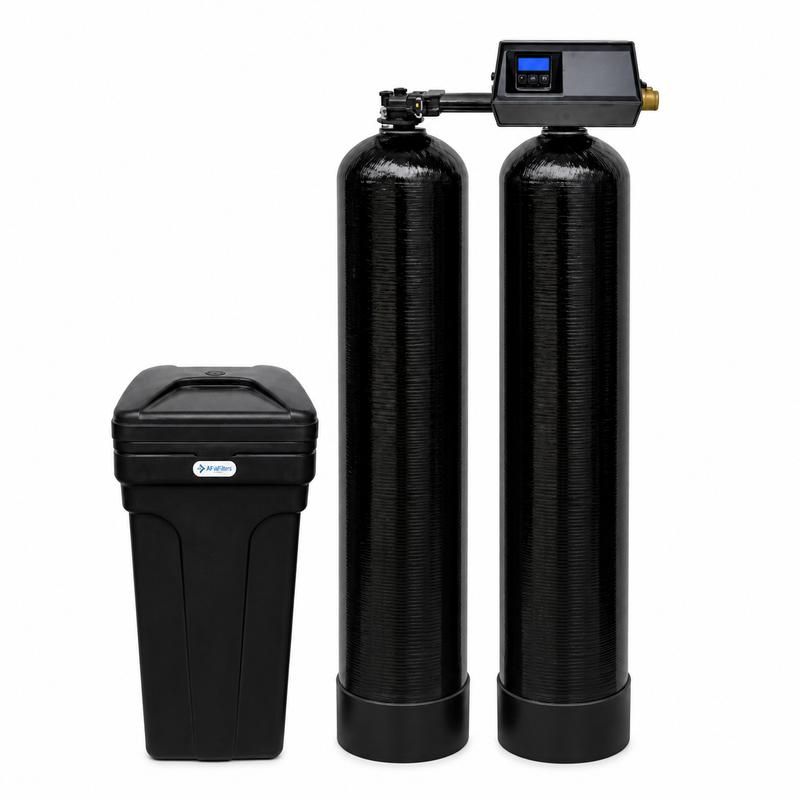

Fleck 9100SXT 64,000 Grain Twin Tank Water Softener System
Watch This Before Buying
Meet Aidan, your water treatment expert
|
Fleck 9100SXT 64,000 Grain Twin Tank Water Softener System
Watch This Before Buying
Meet Aidan, your water treatment expert
Not Sure if You Need a Twin Tank Softener?
A twin tank makes sense when your household can't afford any soft water downtime, when you have high water usage, or when you want maximum salt efficiency. Aidan can review your water test results and daily usage to tell you whether a single-tank 5600SXT or a twin-tank 9100SXT is the right call. No obligation, no sales pressure.
Complete 64,000 Grain Twin Tank Water Softener System
- ✓ Fleck 9100SXT digital control valve -- NSF Certified twin-alternating electronic demand valve with NOVRAM memory (retains settings during power outages) and meter-initiated regeneration
- ✓ Two Vortech mineral tanks (12" x 52" each) -- gravel-free design for better flow distribution and easier resin changes
- ✓ 2.0 cubic feet of 10% crosslink softener resin per tank -- premium chlorine-resistant resin that outlasts standard 8% by 20-30%
- ✓ 3/4" stainless steel bypass valve -- included for easy maintenance access
- ✓ Large salt tank (18" x 33") with safety float -- auto-shutoff prevents overflow during regeneration
- ✓ Free shipping to all lower 48 states
Ships ready to install: Resin is pre-loaded in both tanks and the bypass valve is pre-installed on the valve head. For homes with acidic water (pH below 7), add an acid neutralizer before the softener to protect the resin and plumbing.
System Overview
| Grain Capacity | 64,000 grains per tank |
|---|---|
| Resin Volume | 2.0 cubic feet of 10% crosslink resin per tank |
| System Design | Twin alternating tanks (24/7 continuous soft water) |
| Household Size | 4-8 people / 3-5 bathrooms |
| Control Valve | Fleck 9100SXT (twin-alternating electronic demand) |
| Service Flow Rate | 10 GPM continuous / 20 GPM peak |
| Connections | 3/4" female NPT inlet/outlet |
| Drain Connection | 1/2" female thread |
| Certification | NSF Certified |
| Made In | USA |
Vortech Mineral Tanks (x2)
| Dimensions (each) | 12" x 52" (12" diameter) |
|---|---|
| Material | Polyglass composite |
| Design | Vortech -- gravel-free (no underbed required) |
| Warranty | 10-year manufacturer warranty (each tank) |
Fleck 9100SXT Control Valve
| Regeneration | Electronic demand (meter-initiated, twin-alternating) |
|---|---|
| Memory | NOVRAM (retains settings during power outages) |
| Programming | Time of day, hardness, capacity, regeneration time |
| Salt Efficiency | 15-25% less salt than equivalent single-tank systems |
| Bypass | 3/4" stainless steel (included, pre-installed) |
| Warranty | 5-year manufacturer warranty |
Contaminants Removed
| Hardness (Calcium/Magnesium) | Full removal |
|---|---|
| Iron (dissolved/clear water) | Up to 2-3 PPM |
| Radium | Significant reduction |
| Barium | Significant reduction |
⚡
Resin pre-loaded in both tanks. Bypass pre-installed. Most homeowners complete installation in 3-4 hours with basic plumbing tools.
Space planning: Twin tank systems need more floor space than single-tank softeners. Plan for two mineral tanks side by side plus the brine tank. Typical footprint is about 50" wide x 18" deep.
Installation Steps
- Shut off the main water supply and relieve pressure at a nearby faucet
- Position both tanks and the brine tank near a floor drain or utility sink
- Connect the 9100SXT valve head to both mineral tanks (riser tubes and tank adapters)
- Connect the inlet and outlet to your main water line using 3/4" connections. Water direction is marked on the valve head
- Run the drain line from the valve to the floor drain (flexible 1/2" tubing, max 20' with no more than 8' of elevation)
- Connect the brine line from the valve to the brine tank
- Add salt to the brine tank, fill about halfway with water softener salt pellets
- Open the bypass valve slowly to fill both tanks, then switch to service position
- Program the 9100SXT valve: set time of day, water hardness, and tank capacity (takes about 5 minutes)
- Run a manual regeneration to flush the system and seat the resin beds
Recommended System Order
Well / City Supply
→
Pressure Tank
→
Sediment Filter
→
Acid Neutralizer
→
Twin Tank Softener (this unit)
→
House
Need help? Call or text Aidan at 800-460-5810, available 7 days a week. We walk you through the entire installation and programming process, step by step.
✨
Low maintenance. The 9100SXT handles regeneration and tank switching automatically. Just keep salt in the brine tank and the system takes care of itself. Bonus: it regenerates with soft water, so the brine system stays cleaner.
Maintenance Schedule
- Monthly Check salt level. Keep the brine tank at least 1/3 full with water softener salt pellets. Avoid rock salt, it contains impurities that can clog the brine system.
- Every 7-10 Years Replace the softener resin (both tanks). Our 10% crosslink resin lasts longer than standard 8%, but it does eventually wear out. Signs: hard water returning, increased salt usage, or resin beads appearing in water.
- Annually Clean the brine tank. Let the salt run low once a year and clean the tank to remove any salt bridges or mushing that can impair regeneration.
- As Needed Check the venturi and injector. If regeneration seems sluggish or the system isn't drawing brine, the venturi assembly may need cleaning. Takes 5 minutes with no tools.
Replacement Parts & Media
Pro tip: Always use 10% crosslink resin for replacement. Standard 8% degrades faster, especially if you have any chlorine in your water. When replacing resin in a twin system, do both tanks at the same time so they wear evenly. Questions? Call or text 800-460-5810.
What homeowners are saying
Video Guides
Watch our water softener guides has 32 years of industry experience.
Best Water Softener for Well Water
Complete Guide to Water Softeners
Water Softener: Does Size Matter?
Water Softener: Does Your Home Need It?
Why Choose the Fleck 9100SXT 64,000 Grain Twin Tank Softener?
24/7 Continuous Soft Water, Backed by 29+ Years of Experience
The Fleck 9100SXT 64,000 grain twin tank water softener eliminates hard water problems around the clock. Unlike single-tank softeners that go offline during regeneration, the 9100SXT alternates between two Vortech tanks so one is always softening your water. The result is uninterrupted soft water 24 hours a day, 7 days a week.
Each tank contains 2.0 cubic feet of 10% crosslink softener resin, which resists chlorine damage and lasts 20-30% longer than the standard 8% resin found in most competing softeners. The twin design uses 100% of each tank's resin capacity before switching, saving 15-25% on salt compared to equivalent single-tank systems. Sized for households of 4-8 people with 3-5 bathrooms.
The Fleck 9100SXT is the industry-standard twin-alternating valve, proven reliable over decades with readily available parts and technicians who know how to service it. NOVRAM memory retains your settings during power outages. Service flow rate of 10 GPM continuous (20 GPM peak) handles high-demand households.
✔
64,000 Grain / Tank
✔
Twin Alternating Tanks
✔
24/7 Soft Water
✔
10% Crosslink Resin
✔
NSF Certified
✔
Made in USA
| Feature | Our System | Others |
|---|---|---|
| System Design | ✔ Twin Alternating Tanks (24/7 Soft Water) | Single Tank (Offline During Regen) |
| Control Valve | ✔ Fleck 9100SXT (NSF Certified, Twin) | Generic / Single-Tank Valve |
| Resin Quality | ✔ 10% Crosslink (Chlorine-Resistant) | Standard 8% or Unknown Grade |
| Tank Design | ✔ Dual Vortech Gravel-Free Tanks | Single Standard Gravel-Bed Tank |
| Salt Efficiency | ✔ Full Resin Utilization (15-25% Less Salt) | Partial Use / Timer-Based (Wastes Salt) |
| Regeneration | ✔ Electronic Demand (Meter-Initiated) | Timer-Based (Wastes Salt & Water) |
| Bypass Valve | ✔ 3/4" Stainless Steel Included | Plastic or Not Included |
| Warranty | ✔ 5-Year Valve + 10-Year Tanks | 1-Year Limited |
| Expert Support | ✔ 7-Day Phone, Text & Email | Limited or None |
System Design
✅ Us
Twin Alternating Tanks (24/7 Soft Water)
❌ Them
Single Tank (Offline During Regen)
Control Valve
✅ Us
Fleck 9100SXT (NSF Certified, Twin)
❌ Them
Generic / Single-Tank Valve
Resin Quality
✅ Us
10% Crosslink (Chlorine-Resistant)
❌ Them
Standard 8% or Unknown Grade
Tank Design
✅ Us
Dual Vortech Gravel-Free Tanks
❌ Them
Single Standard Gravel-Bed Tank
Salt Efficiency
✅ Us
Full Resin Utilization (15-25% Less Salt)
❌ Them
Partial Use / Timer-Based (Wastes Salt)
Regeneration
✅ Us
Electronic Demand (Meter-Initiated)
❌ Them
Timer-Based (Wastes Salt & Water)
Bypass Valve
✅ Us
3/4" Stainless Steel Included
❌ Them
Plastic or Not Included
Warranty
✅ Us
5-Year Valve + 10-Year Tanks
❌ Them
1-Year Limited
Expert Support
✅ Us
7-Day Phone, Text & Email
❌ Them
Limited or None
✔ Got a Question About Your Twin Tank Softener?
Whether you need help with installation, programming the 9100SXT valve, understanding the twin-tank alternation cycle, or troubleshooting, Aidan is available 7 days a week. Real answers from someone who has been doing this for 29+ years.
📞 Call Us
800-460-5810
✉️ Email Support
support@midatlanticwater.net
🕒 Live Hours
7 days a week
Frequently Asked Questions
Customer Reviews
0.0 Be the first to review this item
Write a Review Ask a Question
Fleck 9100SXT 64,000 G...
$2,695.00
