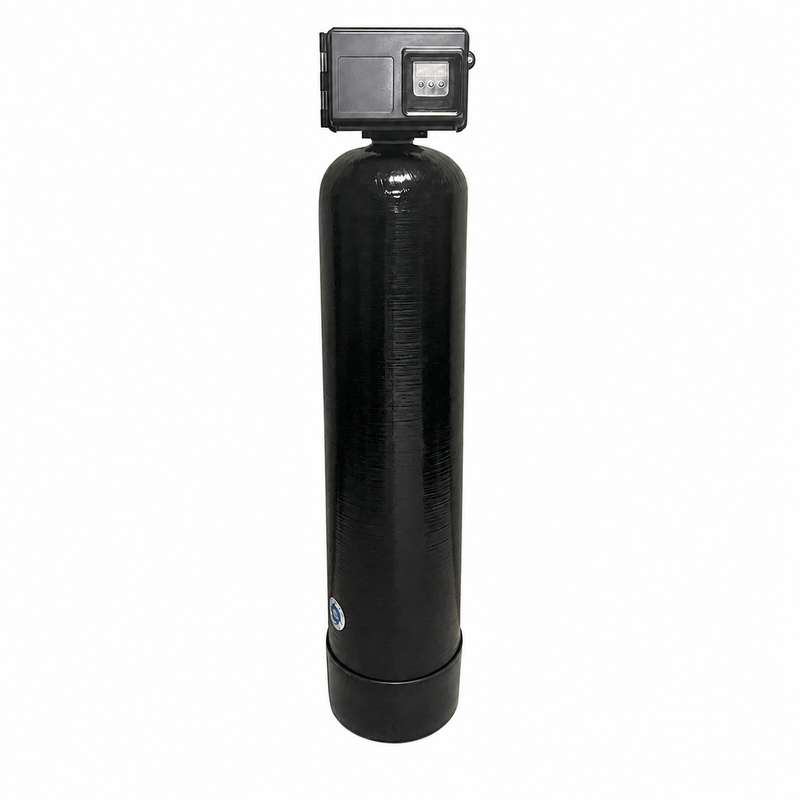

Fleck 2510SXT 2.5 Cubic Foot Vortech Whole House Carbon Filter
Fleck 2510SXT 2.5 Cubic Foot Vortech Whole House Carbon Filter
Watch before you buy
10 videos from our YouTube channel, which has 1.8 million views
I'm the guy in the videos. Text or call me and I'll help you figure it out. No bots, no call center.
Text me from your phone
Scan this with your phone's camera
It opens a text message to me with your question already started. Just hit send.
Or text 800-460-5810
What homeowners are saying
What Ships
- ✓ Vortech 13" x 54" mineral tank (the 2.5 cubic foot tank size) - distributor plate at the bottom, no gravel underbed; ships empty
- ✓ Fleck 2510SXT backwashing control valve - SXT digital timer, 1/2" drain connection, plugs into a standard outlet
- ✓ 2 cubic feet of Centaur catalytic carbon - two 1 cubic foot boxes of Centaur 12x40 by Calgon Carbon, shipped separately and loaded into the tank at install
- ✓ Fleck stainless steel bypass valve - 1" female thread inlet and outlet
- ✓ Fill funnel - for pouring the carbon into the tank with the valve off
- ✓ Free shipping to all lower 48 states
Not included: the 1/2" drain tubing (any hardware store; your plumber runs it to a floor drain, standpipe or utility sink with an air gap). The box has little or no install paperwork: use our install guides and videos, or text Aidan at 443-277-2204.
System Overview
| System Type | Automatic backwashing whole house carbon filter |
|---|---|
| Best For | A well with heavy sediment or some iron, where the carbon tank is the only filter |
| Valve Flow Rating | 19 GPM continuous, valve alone (Pentair) |
| Backwash Supply Needed | About 10 GPM from the well during backwash |
| Connections | 1" female thread (stainless steel bypass) |
| Drain Connection | 1/2" on valve (tubing not included) |
| Electricity | Standard outlet for the plug-in transformer (valve runs on 24V DC) |
| Operating Pressure | 20 to 125 PSI |
| Operating Temp | 34 to 110 degrees F, cold water only |
| Certification | Fleck 2510 valve: NSF/ANSI 44, 372 |
| Warranty | 5-year valve / 10-year tank, against defects |
| Assembled In | USA |
Vortech Mineral Tank
| Dimensions | 13" diameter x 54" tall |
|---|---|
| Design | Vortech distributor plate, no gravel underbed |
| Tank Size | 2.5 cubic feet; ships with 2 cubic feet of carbon, leaving room for the bed to lift during backwash |
Fleck 2510SXT Control Valve
| Type | Backwashing filter valve with SXT digital timer |
|---|---|
| Max Backwash Flow | 17 GPM (valve rating) |
| Drain | 1/2" connection |
| Power | Standard outlet; valve runs on 24V DC |
| Backwash Schedule | Set by day interval; Aidan sets every 3 days on water with sediment |
Centaur Catalytic Carbon Media
| Manufacturer | Calgon Carbon (Centaur 12x40) |
|---|---|
| Base Material | Bituminous coal (patented catalytic process) |
| Mesh Size | 12x40 |
| Iodine Number | 825+ mg/g |
| Abrasion Number | 75+ |
| Apparent Density | 0.56+ g/cc |
| Mean Particle Diameter | 0.9 to 1.1 mm |
| Compliance | ANSI/AWWA B604, Food Chemicals Codex (FCC) |
Contaminants Reduced
✓ Sediment (trapped and backwashed out)
✓ Chlorine
✓ Chloramines
✓ Taste & Odor Compounds
✓ VOCs (Volatile Organic Compounds)
✓ Herbicides & Pesticides
✓ PFAS (reduced, not certified)
✓ Light Sulfur Smell (under about 1 ppm)
⚡
One backwashing tank. We recommend having a plumber install it: about 2 to 3 hours. Plumbing it in is an inlet and an outlet; the part that takes planning is the 1/2 inch drain line to a floor drain, standpipe or utility sink, with an air gap, plus an outlet for the valve. Aidan supports your plumber by phone at 800-460-5810, and if you'd rather do it yourself, text him at 443-277-2204 with any questions.
Plan for: an outlet near the valve for the transformer, a floor drain, standpipe or utility sink for the 1/2" backwash drain line (tubing not included), and a well that can supply about 10 GPM while the tank backwashes.
Installation Steps
- Shut off the main water supply and relieve pressure at a nearby faucet
- With the valve off the tank, pour the two boxes of Centaur carbon into the empty tank through the fill funnel, then thread the Fleck 2510SXT valve onto the tank
- Connect the inlet and outlet to the main water line at the stainless steel bypass valve (1" female thread)
- Run the 1/2" drain line from the valve to a floor drain, standpipe or utility sink, with an air gap
- Plug the Fleck 2510SXT into the outlet
- Set the backwash schedule on the display (Aidan sets every 3 days on water with sediment and can walk your plumber through it by phone)
- Open the water slowly so the tank fills slowly, then run a backwash cycle before putting it in service
Recommended System Order: Well With Sediment
Well
→
Pressure Tank
→
Backwashing Carbon Filter (this unit)
→
Water Softener (if the water is hard)
→
House
Here the carbon traps the sediment on top of the bed and backwashes it out, so it goes before the softener. On a well that already has an iron filter and a softener, the carbon tank goes last and the non-backwashing Clack 2.5 is the one to use. On city water, the carbon goes before the softener, and the non-backwashing Clack 2.5 does the job with no drain or power.
Need help? Call 800-460-5810 or text Aidan at 443-277-2204. Available 7 days a week for sizing questions, installation guidance, backwash settings, and troubleshooting.
✨
The backwash rinses out sediment; it does not renew the carbon. The Fleck 2510SXT reverses the flow on the schedule you set, lifting the bed and flushing trapped sediment to the drain so the carbon does not clog. Carbon is an absorbent: once it has pulled something in, it does not come back out, so backwashing does not make the carbon last longer.
Maintenance Schedule
- Automatic Backwash runs on your schedule. Aidan sets it to every 3 days on water with sediment. The valve does the rest.
- About Every 5 Years Replace the Centaur carbon. Aidan's range for this 2.5 tank is five to six years; on heavier use or sulfur water, plan on sooner. The valve comes off, the old carbon goes into trash bags, and two new boxes go in through the funnel.
- Periodic Watch the water. If the taste, odor or chlorine smell starts coming back, or dirt gets past the tank, text Aidan before changing settings.
Replacement Carbon Media
- 📦 Centaur Catalytic Carbon - 1 Cubic Foot Box ($295; a full refill for this tank is two boxes)
Pro tip: Refill with Centaur catalytic carbon. Standard activated carbon handles chlorine, but Centaur decomposes chloramine faster than standard carbons (Calgon Carbon). Need help with a refill or backwash settings? Call 800-460-5810 or text Aidan at 443-277-2204.
📘 Carbon Filters for Water: The Complete Guide→
⚖️ Backwashing vs Non-Backwashing Carbon Filters→
💧 Carbon Filter for Well Water: Do You Need One?→
🥚 Rotten Egg Smell in Well Water: Which Filter Fixes It→
🔬 What Is Activated Carbon? How Carbon Filters Work→
🔗 Carbon Filter and Water Softener: Do You Need Both?→
🔄 Carbon Filter vs Reverse Osmosis: Which Do You Need?→
A Backwashing Centaur Carbon Filter for Wells With Sediment
The one case for a backwashing carbon tank: sediment or some iron, and no other filter
This is our backwashing carbon tank: a Vortech 13 x 54 tank (the 2.5 cubic foot size) with a Fleck 2510SXT backwashing valve, shipped with 2 cubic feet of Centaur catalytic carbon by Calgon Carbon in two boxes that are loaded into the tank at install. Carbon is a tight media, so on a well it traps sediment on top of the bed, and the valve backwashes it out to the drain on the schedule you set (Aidan sets every 3 days). The Centaur takes out chlorine, taste and odor and reduces VOCs, herbicides and pesticides.
Aidan recommends it in one case: a well with heavy sediment or some iron, where the carbon tank is the only filter. For city water, or a well that already has an iron filter and a softener, the non-backwashing Clack 2.5 uses the same carbon with no drain or power. Backwashing does not make carbon last longer; plan on new carbon about every 5 years.
It needs an outlet, a 1/2 inch drain line and a well that supplies about 10 GPM during backwash. It is not the tank for a rotten egg smell: a light smell goes to the Clack 2.5, a steady or strong one to a Katalox Light air-injection filter.
✔
NSF/ANSI 44 & 372 Valve
✔
Backwashes Out Sediment
✔
Auto Backwash
✔
Fleck 2510SXT Valve
✔
Centaur Catalytic Carbon
✔
5 & 10 Year Warranty
✔
Assembled in USA
| Feature | Our System | Others |
|---|---|---|
| Carbon Media | ✔ Centaur Catalytic Carbon (Calgon Carbon) | Often Standard Activated Carbon |
| Carbon Shipped | ✔ 2 Cubic Feet in a 13 x 54 Tank | Varies by Seller |
| Control Valve | ✔ Fleck 2510SXT (Digital Timer) | Varies by Seller |
| Backwash | ✔ Automatic, on a Day Interval You Set | Varies by Seller |
| Valve Flow Rating | ✔ 19 GPM Continuous (Valve) | Varies by Seller |
| Expert Support | ✔ 7-Day Phone, Text & Email | Varies by Seller |
| Warranty | ✔ 5-Year Valve + 10-Year Tank | Varies by Seller |
Carbon Media
✅ Us
Centaur Catalytic Carbon (Calgon Carbon)
❌ Them
Often Standard Activated Carbon
Carbon Shipped
✅ Us
2 Cubic Feet in a 13 x 54 Tank
❌ Them
Varies by Seller
Control Valve
✅ Us
Fleck 2510SXT (Digital Timer)
❌ Them
Varies by Seller
Backwash
✅ Us
Automatic, on a Day Interval You Set
❌ Them
Varies by Seller
Valve Flow Rating
✅ Us
19 GPM Continuous (Valve)
❌ Them
Varies by Seller
Expert Support
✅ Us
7-Day Phone, Text & Email
❌ Them
Varies by Seller
Warranty
✅ Us
5-Year Valve + 10-Year Tank
❌ Them
Varies by Seller
Frequently Asked Questions
