Viqua VH410 UV System

Whole-house UV disinfection for most well homes. 18 GPM at VIQUA's standard 30 mJ/cm² dose, 14 GPM at 40. Kills bacteria, including coliform and E. coli.

Video thumbnail
Watch This Before Buying Meet Aidan, your water treatment expert
Rated 18 GPM at VIQUA's standard dose

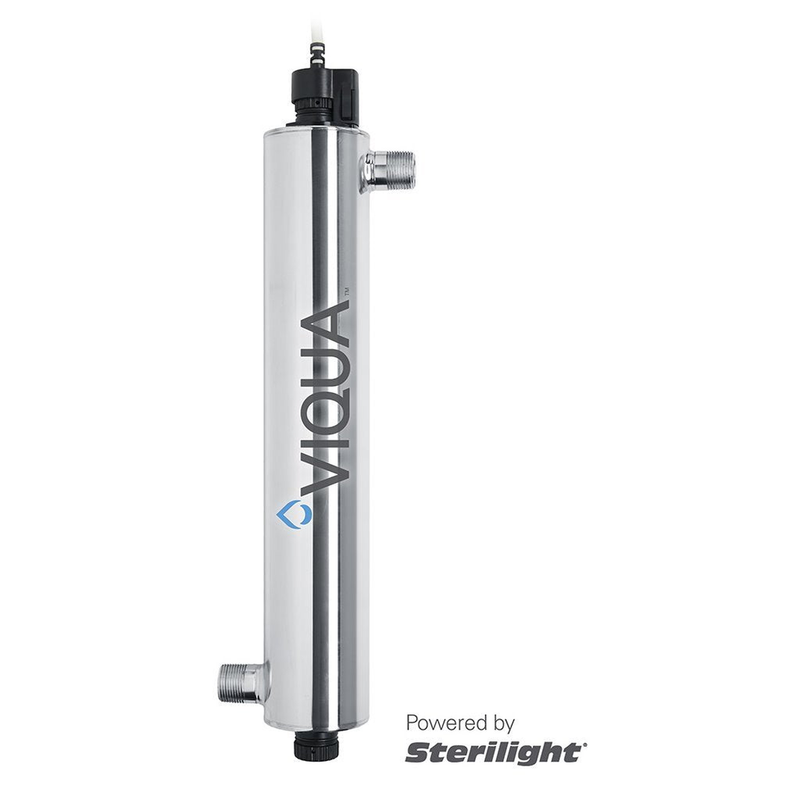

Viqua VH410 UV System

Whole-house UV disinfection for most well homes. 18 GPM at VIQUA's standard 30 mJ/cm² dose, 14 GPM at 40. Kills bacteria, including coliform and E. coli.

Video thumbnail
Watch This Before Buying Meet Aidan, your water treatment expert
Free Shipping to the Lower 48
Arrives ... to
In Stock. Ships from Ohio warehouse by
Aidan
Not sure if UV is right for your water? Send Aidan your water test results and he'll tell you exactly what you need: no guessing, no upselling. If UV isn't the right solution, he'll say so.

Complete Viqua VH410 System

  • ✓ Viqua VH410 UV chamber: 304 stainless steel, 23.5" × 3.5"
  • ✓ High-output UV-C lamp (ships in its own tube, slides in at install), 9,000-hour rated life
  • ✓ Quartz sleeve, inside the chamber: protects the lamp; clean it periodically
  • ✓ BA-ICE-CL electronic ICE controller: 365-day lamp countdown, end-of-life chirp, lamp failure alarm
  • ✓ Combo inlet/outlet ports on the chamber: ¾" FNPT or 1" MNPT
  • ✓ Two mounting clamps and hardware
  • ✓ VIQUA owner's manual

Not included: the 5-micron sediment filter that goes ahead of it, a GFCI-protected outlet, and the pipe, fittings and shutoff valves.

Note: VIQUA requires a 5-micron sediment filter upstream of the UV chamber, to protect the quartz sleeve. If your water has iron above 0.3 ppm, you will also need an iron filter installed before the UV system. Learn more about pre-treatment requirements →

Performance

Flow Rate (30 mJ/cm²)18 GPM (70 LPM)
Flow Rate (40 mJ/cm²)14 GPM (54 LPM)
UV Dose Ratings30 mJ/cm² (VIQUA standard) and 40 mJ/cm²
What It KillsBacteria, including coliform and E. coli, as the water flows past the lamp
VIQUA Says It InactivatesE. coli, coliform, Giardia, Cryptosporidium, Legionella, hepatitis A, norovirus, and more (VIQUA internal testing)

Physical

Chamber Dimensions23.5" × 3.5" (59.6 cm × 8.9 cm)
ControllerBA-ICE-CL, 7.25" × 3.25" × 2.5"
Chamber Material304 stainless steel
ConnectionsCombo: ¾" FNPT / 1" MNPT
Shipping Weight17 lbs (7.7 kg)

Electrical

Voltage100–240V (50/60 Hz), universal input; plug into a GFCI-protected outlet
Power Consumption60W (comparable to a light bulb)
Annual Electricity CostAbout $80–$105/year (60W around the clock, 526 kWh, at 15–20¢/kWh)

Operating Limits

Max Operating Pressure125 PSI (8.62 bar)
Water Temperature36°F – 104°F (2°C – 40°C)
Iron< 0.3 mg/L (ppm)
Hardness< 7 grains per gallon (120 mg/L)
Tannins< 0.1 mg/L
Turbidity< 1 NTU
Manganese< 0.05 mg/L (ppm)
UV Transmittance> 75%
Sediment5-micron sediment filter ahead of the UV (required by VIQUA)

Lamp & Maintenance

Lamp Life9,000 hours (~12 months continuous)
Replacement LampS410RL-HO ($170)
Replacement Quartz SleeveQSO-410 ($145, replace when it will not come clean)
Controller FeaturesDays-left display, chirp when the 365-day countdown reaches zero, audible alarm on lamp failure
UV Intensity SensorNone (the VH410M has one)

Manufacturer

ManufacturerVIQUA, a Trojan Technologies company, Guelph, Ontario
Warranty (VIQUA)10 years chamber; 3 years controller and hardware; 1 year lamp and sleeve
Replaces ModelSterilight S12Q-PA and SC-320

We recommend having a plumber install it; Aidan supports your plumber by phone at 800-460-5810. If you'd rather do it yourself, text Aidan at 443-277-2204 with any questions. It is an inlet and an outlet, the 5-micron sediment filter ahead of it and a nearby outlet, with no drain line: about an hour for a plumber for the UV alone. An electrician only if there is no outlet near the line.

  1. 1 Choose location: On the cold water line, before any branch, after all pre-treatment (5-micron sediment filter, iron filter, softener). Mount it on the wall with the two supplied clamps, with clearance equal to the chamber's length (about 24") so the lamp and sleeve can be pulled out.
  2. 2 Cut into main line: Install shutoff valves on both sides of the UV chamber for easy isolation during maintenance.
  3. 3 Connect plumbing: The chamber has combo ports (¾" FNPT / 1" MNPT). VIQUA recommends metal fittings and at least 10" of copper pipe on the outlet. Do not solder connections while they are attached to the chamber.
  4. 4 Plug in controller: Plug it into a GFCI-protected outlet (required by VIQUA, customer supplied); a surge protector is strongly recommended. It draws 60W and runs around the clock.
  5. 5 Turn on and verify: Open water slowly, check for leaks, confirm the controller shows the lamp is active and the countdown timer has started. After power is applied (and after any power outage), do not run water through it for 5 minutes.
  6. 6 Clean the plumbing after the UV: VIQUA's start-up: 2 cups of 5.25% household bleach in the sediment filter housing, run each faucet until you smell bleach, wait 30 minutes, then flush until the smell is gone. Repeat it whenever the UV has been shut down for service or without power, and retest the water.
💡 Pro tip from a customer: "Use silicone lube on the O-rings and plenty of tape on the threaded fittings. Make sure you install copper lines to the light - PEX does not work." (Ray P., Water Sanitizer buyer)
⚠ Pre-treatment required: If your water has iron above 0.3 ppm, hardness above 7 gpg, or visible sediment, you must install the appropriate treatment upstream of the UV system. Dirty water will coat the quartz sleeve and reduce UV effectiveness. See pre-treatment requirements →

UV Lamp Replacement Every 12 months

The only required annual maintenance. VIQUA rates the lamp at 9,000 hours and designs it for steady UV output over that life, then asks for a new one every year (every two years for a seasonal home). The controller chirps when its 365-day countdown reaches zero. The swap needs no special tools. Replacement lamp: S410RL-HO ($170) →

Quartz Sleeve Cleaning Periodically

Wipe the quartz sleeve with a cloth soaked in vinegar or CLR to remove any mineral film. Inspect for cracks or permanent cloudiness. A clean sleeve is critical for maximum UV transmission.

Quartz Sleeve Replacement When it will not come clean

Replace the quartz sleeve (QSO-410, $145) if it shows cracks, chips, or won't clean clear.

O-Ring Inspection During each lamp change

Check the O-rings at each end of the quartz sleeve. If dried out, cracked, or compressed flat, replace them. VIQUA names the O-ring seal as the most likely source of a leak.

Compare to chlorine injection: a feed pump, a solution tank, a contact tank and a carbon filter after it, refilled and serviced every month. UV maintenance is one lamp a year and a clean sleeve.

Video Guides

Aidan on getting rid of bacteria in well water


Whole-House UV Disinfection for Well Water With Bacteria

VIQUA rates the VH410 at 18 GPM at its standard 30 mJ/cm² dose and 14 GPM at 40 mJ/cm². Kills bacteria, including coliform and E. coli, as the water flows past the lamp.

The Viqua VH410 is a whole-house UV light for a private well. Its lamp puts out UV-C at 254 nanometers, which damages the DNA of bacteria as the water flows past, so they cannot multiply. VIQUA rates it at 18 GPM at its standard 30 mJ/cm² dose and 14 GPM at 40 mJ/cm², and Aidan recommends it for most well homes, whether there are two people or ten. Nothing is added to your water: no chemicals, no chlorine taste. The upkeep is one $170 lamp a year, when the controller's 365-day countdown reaches zero, and a periodic cleaning of the quartz sleeve. A chlorine injection system, by comparison, needs a feed pump, a solution tank, a contact tank and a carbon filter after it, and it is refilled and serviced every month. It needs clear water to work: a 5-micron sediment filter ahead of it, and iron, manganese and hardness treated first. VIQUA, a Trojan Technologies company headquartered in Guelph, Ontario, makes the 304 stainless chamber and the ICE controller, which shows the days left on the lamp and alarms if the lamp fails. There is no UV intensity sensor on this model (the VH410M has one).
✔ 14 GPM at 40 mJ/cm²
✔ 18 GPM Flow Rate
✔ Kills E. coli & Coliform
✔ Chemical-Free
✔ 304 Stainless Steel
✔ 9,000-Hour Lamp Life
Mid Atlantic Water Trust Logos
Feature Our System Others
UV Dose ✔ 30 mJ/cm² standard, 40 at 14 GPM Varies by brand
Flow Rate ✔ 18 GPM at 30 mJ/cm2 (14 at 40) 8–12 GPM
Flow at 40 mJ/cm² ✔ 14 GPM Varies by brand
Lamp Life Countdown and Alarm ✔ Days left on screen, reminder beep, lamp failure alarm No Monitoring
Chamber Material ✔ 304 Stainless Steel Plastic or Thin Steel
Lamp Life Tracking ✔ Digital Countdown Timer No Display
Manufacturer ✔ Viqua (Trojan Technologies) Unknown / Generic Brand
Connection Size ✔ Combo ¾" + 1" MNPT ¾" Only
UV Dose
✅ Us 30 mJ/cm² standard, 40 at 14 GPM
❌ Them Varies by brand
Flow Rate
✅ Us 18 GPM at 30 mJ/cm2 (14 at 40)
❌ Them 8–12 GPM
Flow at 40 mJ/cm²
✅ Us 14 GPM
❌ Them Varies by brand
Lamp Life Countdown and Alarm
✅ Us Days left on screen, reminder beep, lamp failure alarm
❌ Them No Monitoring
Chamber Material
✅ Us 304 Stainless Steel
❌ Them Plastic or Thin Steel
Lamp Life Tracking
✅ Us Digital Countdown Timer
❌ Them No Display
Manufacturer
✅ Us Viqua (Trojan Technologies)
❌ Them Unknown / Generic Brand
Connection Size
✅ Us Combo ¾" + 1" MNPT
❌ Them ¾" Only
Aidan

✔ Free Lifetime Tech Support

Every VH410 comes with free technical support for the life of the system. Call, text, or email anytime: before, during, or after installation.

📞 Call Us 800-460-5810
✉️ Email Support support@midatlanticwater.net
🕒 Live Hours 7 days a week

Frequently Asked Questions

The VH410 kills bacteria, including coliform and E. coli, as the water flows past the lamp. VIQUA says its UV systems are capable of inactivating common waterborne pathogens, including Cryptosporidium (chlorine-resistant), Giardia, pathogenic E. coli, hepatitis A, norovirus, Legionella, Salmonella, and Campylobacter, with efficacy demonstrated in its internal testing. It achieves this through UV-C light at 254 nanometers, which scrambles microbial DNA on contact. VIQUA rates the VH410 at 18 GPM at its standard 30 mJ/cm² dose and 14 GPM at 40 mJ/cm².

Aidan recommends the VH410 for most well homes, whether there are two people or ten: with bacteria, he says, it is never overkill. VIQUA rates it at 18 GPM at its standard dose (14 at 40 mJ/cm²), so it won't really cut down your flow or create a big pressure drop. The Viqua VH200 (9 GPM, $895) is the shorter unit for a tight space. The VH410 costs $100 more and is rated for double the flow.

Every 12 months, when the controller's 365-day countdown reaches zero and it starts to chirp (every two years for a seasonal home, per VIQUA). VIQUA rates the lamp at 9,000 hours and designs it for steady UV output over that life, then asks for a new one every year to keep the protection continuous. The replacement is the genuine VIQUA S410RL-HO lamp, $170, and changing it needs no special tools.

Yes. VIQUA requires a 5-micron sediment filter upstream of the UV chamber. It catches particulates that could shadow bacteria from the UV light. If your water has iron above 0.3 ppm, hardness above 7 grains per gallon, or any visible cloudiness, you need to address those issues before adding UV. Iron fouls the quartz sleeve within weeks, and turbidity creates shadows where bacteria survive. Clean water first, then UV as the final disinfection step.

We recommend one. It is an inlet and an outlet, the 5-micron sediment filter ahead of it and a nearby outlet, with no drain line: about an hour for a plumber for the UV alone, and an electrician only if there is no outlet near the line. VIQUA asks for the UV on the cold line before any branch, a GFCI-protected outlet, and clearance equal to the chamber's length so the lamp can be pulled out, and recommends metal fittings and at least 10 inches of copper pipe on the outlet. Aidan supports your plumber by phone at 800-460-5810. If you'd rather do it yourself, you can; text Aidan at 443-277-2204 with any questions.

The VH200 delivers 9 GPM of UV-treated water and is the shorter unit for a tight space ($895, 17.75 inch chamber). The VH410 delivers 18 GPM, double the capacity, and is the one Aidan recommends for most well homes ($995, 23.5 inch chamber). VIQUA rates both at the same doses: 9 and 18 GPM at its standard 30 mJ/cm² dose, 7 and 14 GPM at 40 mJ/cm². Both use the same BA-ICE-CL controller and the same combo ports (¾" FNPT or 1" MNPT). The VH410 lamp is $170 and the VH200 lamp is $165. For a detailed comparison, see our Viqua VH200 vs VH410 guide.

No. UV is a disinfection technology -- it kills living organisms but does not physically remove anything from the water. It has no effect on iron, manganese, sediment, chemicals, heavy metals, hardness, or taste and odor. If your water has these issues in addition to bacteria, you need separate treatment for each problem. The typical treatment sequence is: sediment filter → acid neutralizer (if pH is low) → iron filter → water softener (if needed) → UV system.

Customer Reviews
5.0 Based on 2 Reviews
100%
0%
0%
0%
0%
100reviewers would recommend this product Write a Review Ask a Question
Viqua VH410 UV System
Viqua VH410 UV System $995.00

What the VH410 Costs to Own

What you pay up front and every year, next to what a chlorinator takes to keep running.

Thinking about chlorine injection instead?

Chlorine injection systems need a feed pump, a bleach solution tank, a contact tank and a carbon filter to take the chlorine back out, and they have to be refilled and serviced every month. Typical chlorine doses also do not adequately destroy parasites like Cryptosporidium and Giardia.

The VH410 costs $995 upfront with one $170 lamp replacement per year, and no chemicals.

Running Cost

Chlorine Injection
Pump, 2 tanks + carbon
  • Feed pump, solution tank, contact tank, carbon filter
  • Adds chlorine; the carbon filter takes it back out
Refilled and serviced monthly
Viqua VH410
$995
  • One $170 lamp a year; clean the sleeve
  • Nothing added to the water; 60W of power
About $1 / day over 10 years

An estimate over 10 years: $995 for the unit, nine more $170 lamps ($1,530; the first ships with it), one $145 sleeve (assuming one is needed), and about $80 to $105 a year in electricity (60W around the clock, 526 kWh a year at 15 to 20 cents per kWh). That is about $3,460 to $3,720, or roughly $1 a day, with no chemicals and no service contract. Add a 5-micron sediment filter ($195 kit) if you do not have one.

What You Get With the VH410
  • Genuine VIQUA parts: the VH410 chamber, the BA-ICE-CL controller and the S410RL-HO lamp, covered by VIQUA's warranty (10 years on the chamber, 3 years on the controller and hardware, 1 year on the lamp and sleeve).
  • VIQUA's published ratings: 18 GPM at its standard 30 mJ/cm² dose, 14 GPM at 40 mJ/cm².
  • Aidan reads your water test before you buy and supports you and your plumber by phone and text after: 800-460-5810, text 443-277-2204.
