This page is a complete buyer's guide and shop for whole-house well water filtration systems. A complete well water filtration system is not one filter; it is a properly ordered set of treatment stages selected from your water test, household flow demand, and the problems you need to solve. Most well homes need two to four of these stages, not all of them. It covers: how to choose a system from your water test; complete multi-stage systems by household size (3-stage essential through 6-stage high-flow); single-problem systems for iron, rotten egg sulfur, low pH, hardness, sediment, bacteria, tannins, PFAS, and arsenic; the correct treatment order (sediment, then iron and sulfur, then acid neutralizer, then softener, then carbon, then UV); a complete-system comparison table; household and flow sizing; maintenance and cost; verified reviews; and expert sizing help. Iron is removed before the acid neutralizer so the calcite bed is not fouled. UV requires clear, pretreated water. A softener is not a substitute for an iron filter. Salt-free conditioning prevents scale but does not remove hardness. Systems ship free to all 50 US states with all media included and DIY-installable (softener resin pre-loaded; heavier filter media ships in bags to load at install). Mid Atlantic Water has specialized in well water treatment since 1997.

Whole-house well water treatment
★★★★★ 4.98 from 123 verified reviews

Well Water Filter & Filtration Systems

A complete well water filtration system is not one filter. It is a properly ordered set of treatment stages, chosen from your water test, your household's flow demand, and the problems you actually need to solve. Most well homes need two to four stages, not all of them.

The page is built as a simple flow: Step 1, test your water; Step 2, pick the single stage that fixes your main problem; Step 3, or save with a multi-system package if you have several problems. Not sure? Aidan will read your results and build the system for you, by phone, no upsell.

Sized from your water test
One stage or several, built in order
Free shipping to all 50 states
Media included, DIY-installable
Free phone sizing with Aidan
Well water specialists since 1997

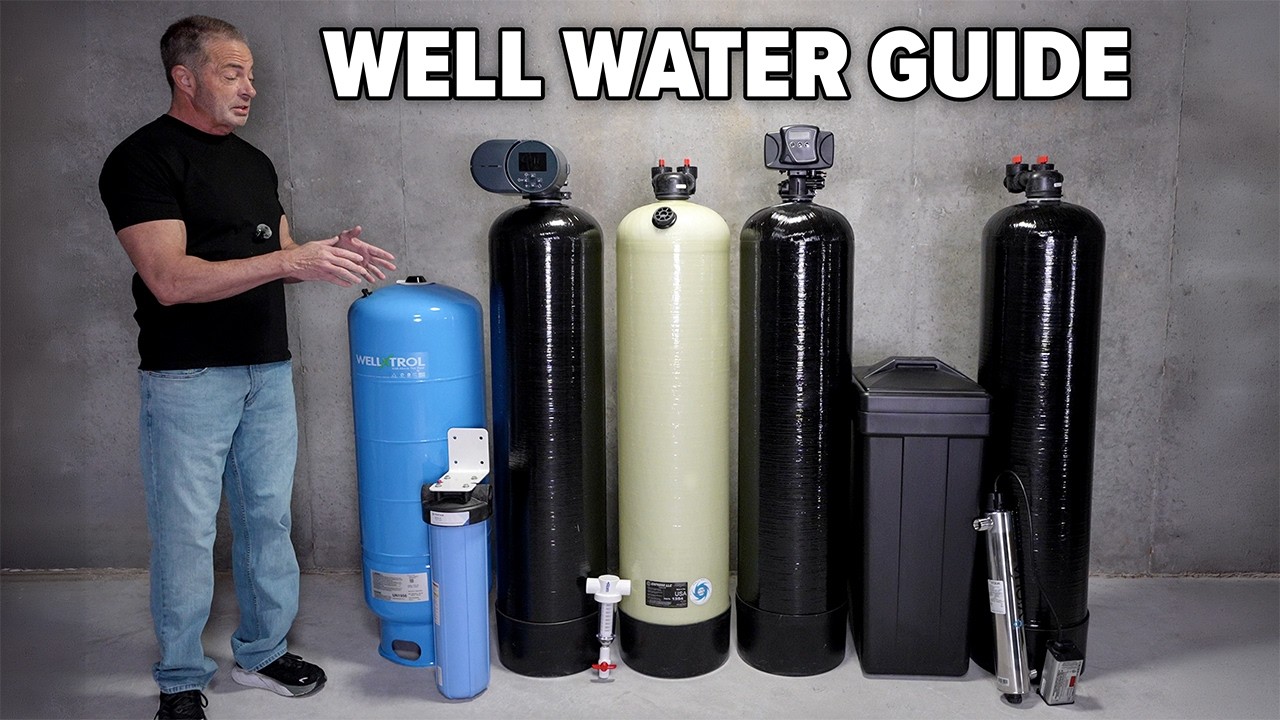

Complete Guide to Well Water Filtration Systems
Watch the 12-minute complete guide

After 32 years of well water experience and 10,000+ customers served since 1997, here is what we tell every caller: private well water is never uniform, even house to house on the same road. Do not buy a system based on symptoms alone. Test first, then build the right stages in the right order.

Step 1: Test Your Well Water

Every well is different, even house to house on the same road, and symptoms overlap. A certified mail-in lab test tells you exactly which systems below you actually need, so you do not over-buy or under-treat. Your sample is analyzed by an independent, accredited lab (ISO 17025, state-certified), not by us, routed to the nearest facility in a network spanning all 50 states. That makes it the most accurate, unbiased reading you can get: real lab results, not a DIY test strip. Already have recent results? Skip ahead, or text them to Aidan and he will size your system free.

Step 2: Single-Stage Well Water Filters (Treat One Problem)

Most wells need just one or two of these, not all of them. Each system below targets one problem: iron and sulfur, low pH, hard water, sediment, taste and odor (carbon), bacteria (UV), arsenic, PFAS, lead, or nitrate. Every one has been proven across thousands of real homeowner installs to be the most reliable problem-to-solution pairing for its issue: professional-grade equipment that fixes the problem and keeps fixing it for the long haul, not a stopgap. Start with the stage your water test flags, then add others only if you need them. A sediment pre-filter protects whatever you install. Have more than one problem, or want it bundled and discounted? See the packages in Step 3.

Step 3: Complete Well Water Systems & Packages (Bundle & Save)

Have more than one problem, a new or untested well, or just want it handled in one order? These packages combine the right stages in the correct order and are priced below buying each stage on its own. Start with the two most common pairings (low pH plus hard water, iron plus hard water), then step up through the complete 4-stage, 5-stage, and 6-stage systems as your water test calls for. The blue tag on each card shows what it treats. Need a sulfur, tannin, PFAS, off-grid, or no-salt build? Use the symptom finder above or text Aidan your water test and he will size it.

Free expert sizing

Text me your water test. I’ll send you a product link.

I read every water test personally and text back a recommendation. Same day. No chatbot, no upsell pressure, no charge.

  1. Send your test

    Photo, PDF, or just type the numbers, whatever’s easiest. Don’t have a test yet? Describe what you’re seeing.

  2. Aidan reads it personally

    Real co-owner. Not a chatbot, not a script, not a sales rep on quota. He’s sized thousands of systems.

  3. Get a direct link to what you need

    Aidan texts you the exact product page that fits your water. Buy it, bookmark it, or take the answer elsewhere. No pressure either way.

We never send spam. We never sell your number. Aidan answers personally, 7 days a week, 8a–5p ET.

Why buy from us

Mid Atlantic Water vs. a local installer vs. a big-box kit

We are an online-only family company. We size your system from your water test, ship it with all media included, and you (or any local plumber) install it. Here is how that compares to the two alternatives most well owners weigh. Cost ranges are from our own complete-guide breakdown, not competitor quotes.

  Mid Atlantic WaterLocal installerBig-box / Amazon kit
Sized from your water test Yes, by a specialist on the phoneSometimes (sales-led)No, you guess
Built in the correct stage order Yes, sequenced for your waterYesUp to you to figure out
Who installs it You or any local plumber (media included)Their crewYou
Expert you can call after the sale Yes, Aidan, 7 days a weekVariesNone
Chemicals required None on standard buildsSometimes (chlorine feed)Varies
Typical cost for a full system About $5,000 to $6,000 shipped (DIY)About $10,000 to $15,000 installedCheaper, often undersized

The installed-retail range ($10,000 to $15,000) is what customers report being quoted for a comparable multi-stage system; it varies by region. A big-box or Amazon kit can cost less up front but is frequently undersized for real well iron or hardness levels, which is the most common reason a system fails.

Step 1: Find Your Problem

What are the signs of well water contamination?

Your water is telling you what it needs. Match the sign to the stage below, then confirm it with a test (symptoms overlap, so a stain alone is not a diagnosis). One symptom usually points to one stage; several point to a complete system.

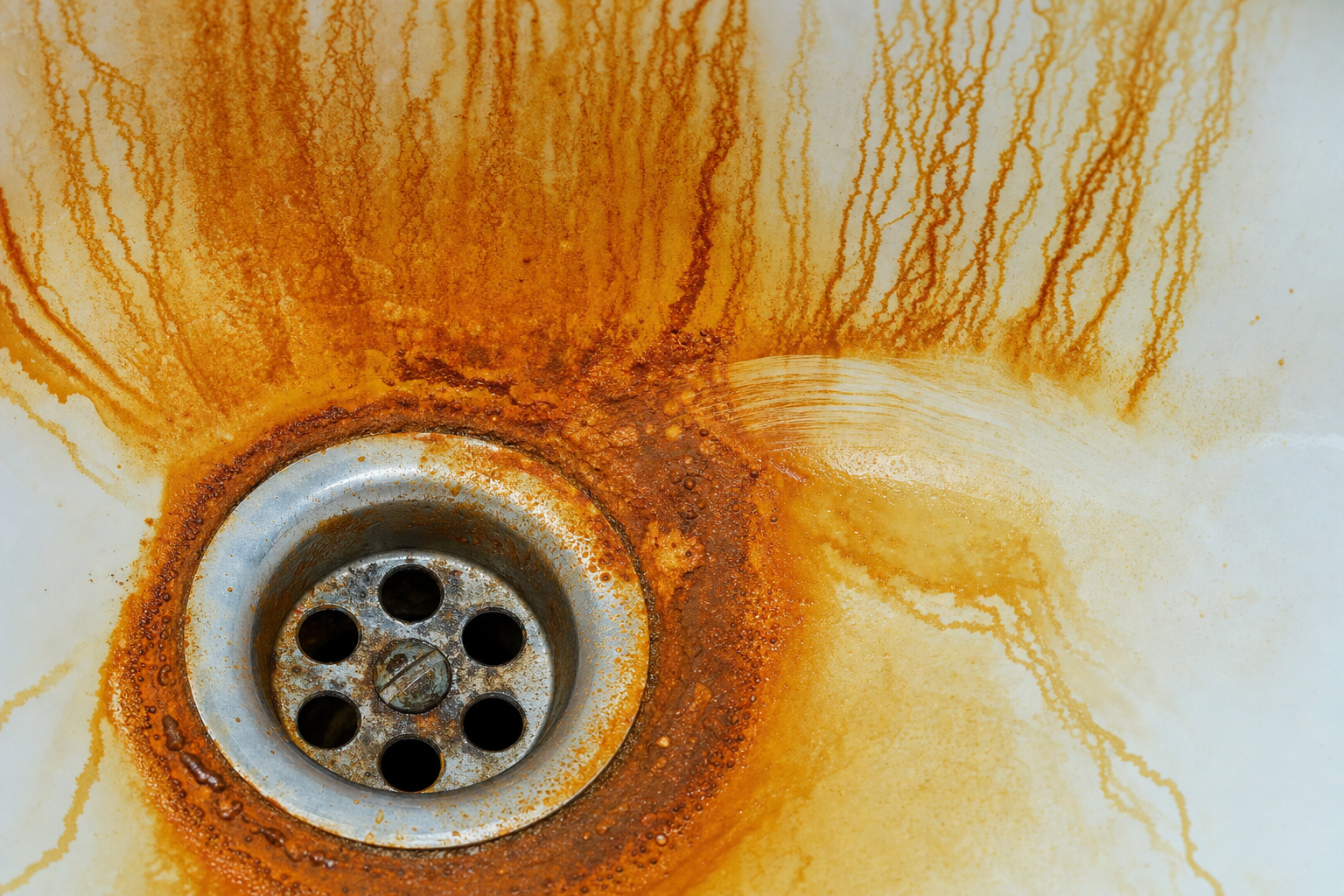

Orange rust stains on a white porcelain sink from iron in well water

Orange or rust stains

On sinks, tubs, and laundry, and a metallic taste. That is iron, often with manganese.

TREAT IT Iron filter stage
Glass of well water with sulfur odor

Rotten egg smell

Sulfur (hydrogen sulfide) gas, usually worse on hot water. An air-injection iron and sulfur filter handles it.

TREAT IT Iron and sulfur filter stage

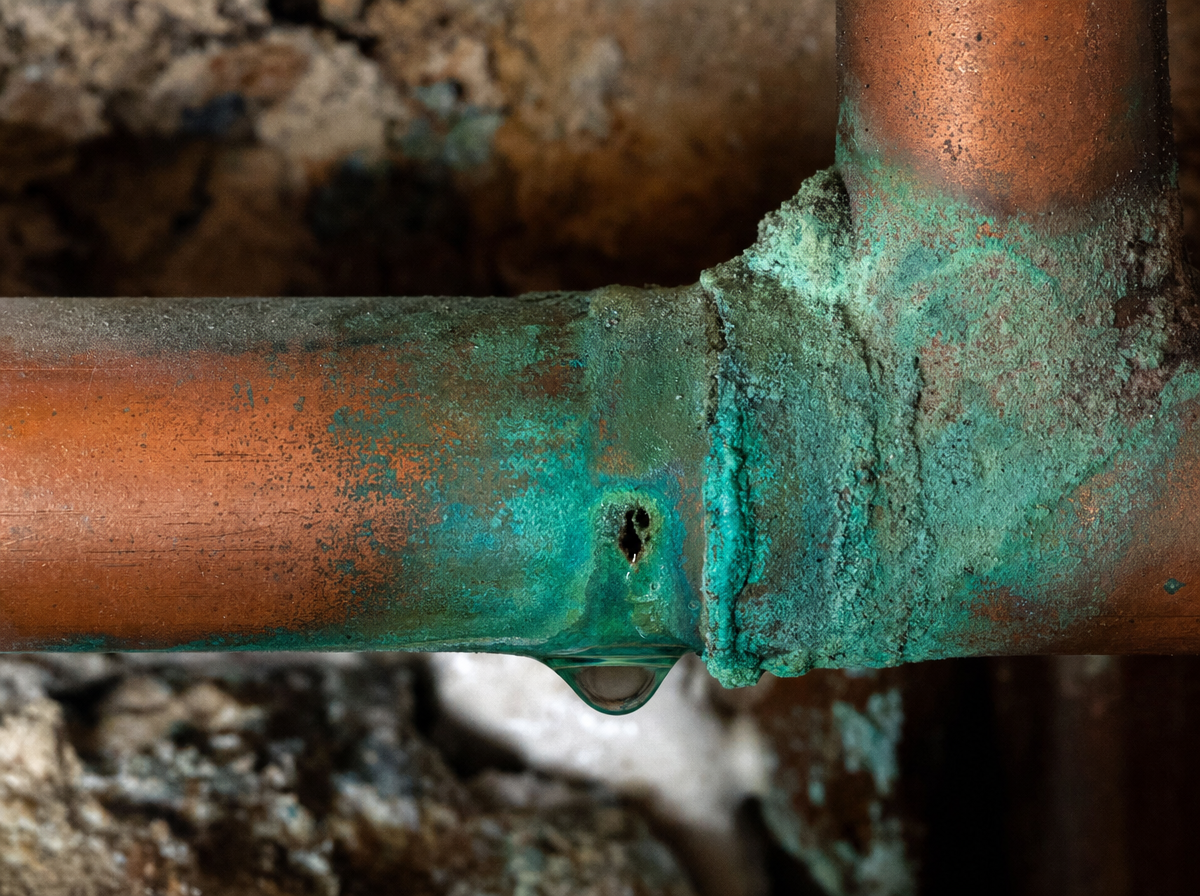

Corroded copper pipe with blue-green verdigris and a pinhole leak from acidic well water

Blue-green stains, pinhole leaks

Turquoise staining and copper corrosion mean acidic, low-pH water. An acid neutralizer raises the pH.

TREAT IT Acid neutralizer stage
Shower head clogged with white limescale from hard water

Scale, spots, soap that won't lather

Hard water (calcium and magnesium). A water softener removes it. Note: an acid neutralizer adds a little hardness, so the two often pair.

TREAT IT Water softener stage

Brown or tea-colored water

Often organic tannins from decaying vegetation. It needs a dedicated tannin filter, not an iron filter.

TREAT IT Tannin filter stage

Failed coliform or bacteria test

Coliform or E. coli means you need disinfection. UV works only on clear, pretreated water, so iron and sediment come first.

TREAT IT UV stage (after pretreatment)

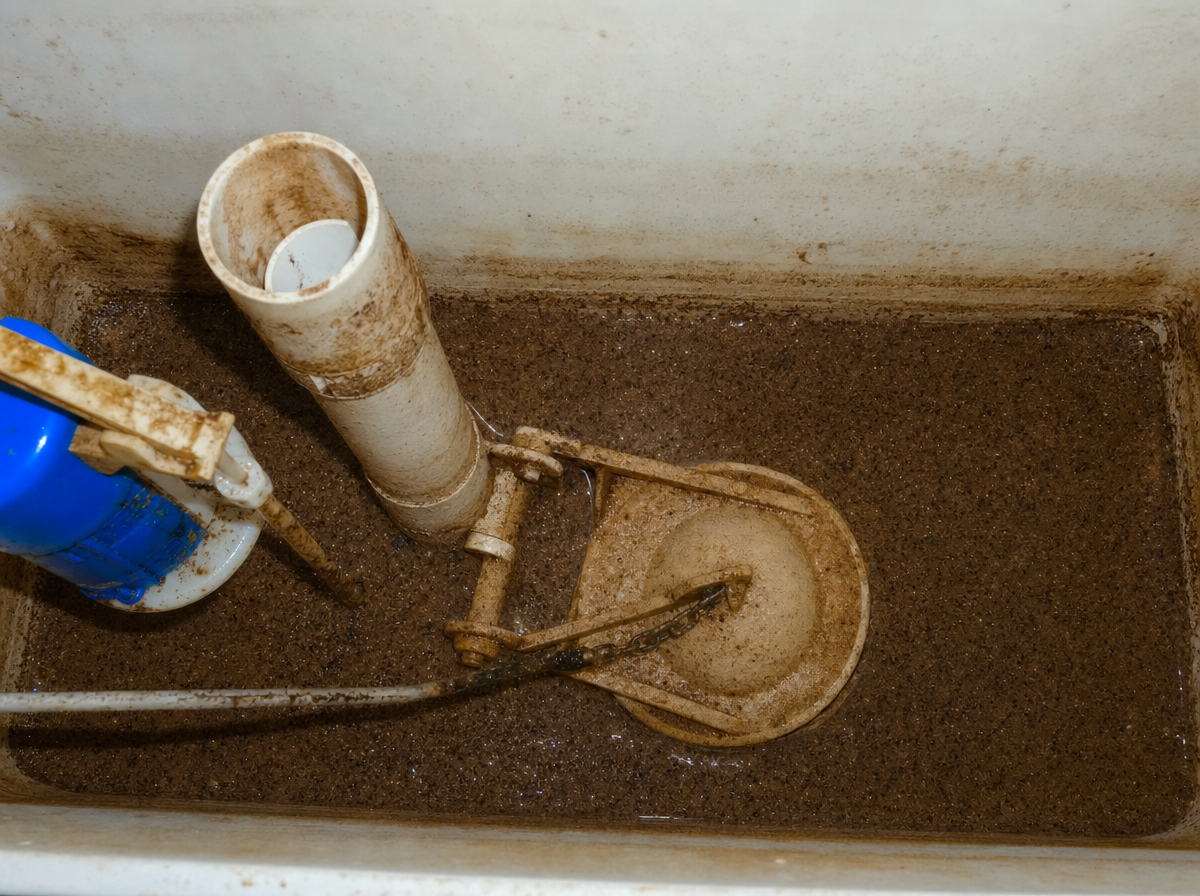

Brown sand and grit settled in the bottom of a toilet tank from well water

Sand or grit in the toilet tank

Visible particles and clogged aerators. A sediment filter protects every stage downstream.

TREAT IT Sediment stage

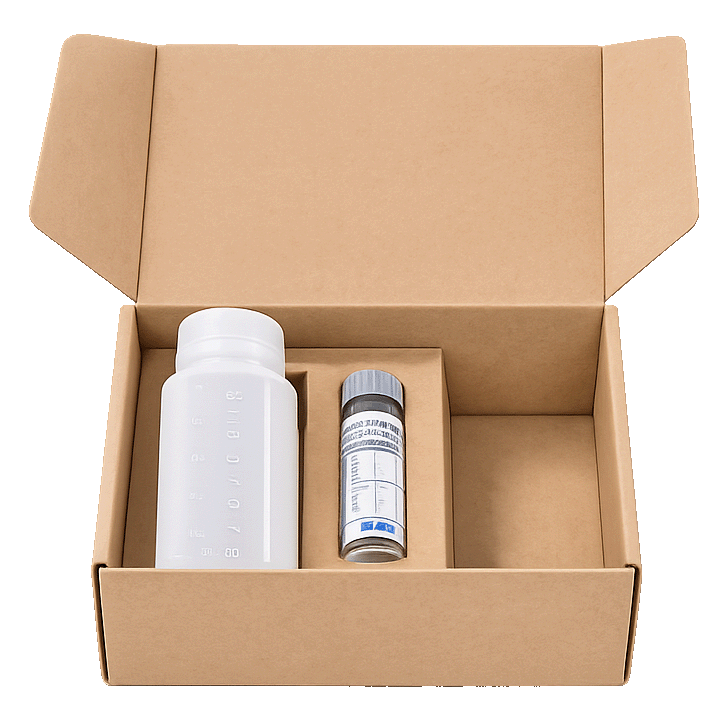

Mid Atlantic Water well water test kit box

Test your well first, then size the system to the results

Private well water is never uniform, and symptoms overlap. A certified mail-in lab test for 53 contaminants (iron, manganese, pH, hardness, bacteria, and more) tells you exactly which stages you need so you do not over-buy or under-treat. We read your results with you and size the system free. $199, ships free.

TEST YOUR WATER $199 - Free sizing
Step 2: Match Your System

Match your problem to the right system

These are the most common well water problems, roughly in the order we see them. Find the one that matches your water and go straight to the fix. Have more than one? That is normal. A multi-system package below combines the stages in the right order and costs less than buying each separately. Your water test confirms the exact sizing.

Step 3: Pick a size

What size well water system do I need?

Match your home to a complete system by household size and bathroom count, then confirm the fit against your water test and well-pump output. Larger homes need higher service flow and bigger media volumes. Backwashing stages (iron, softener) also need your well pump to sustain a minimum GPM to self-clean; if you are not sure of your pump output, we help you check it before you order.

  4-Stage (Iron + Softener) 5-Stage (+ UV)
MOST POPULAR
6-Stage Complete
4-Stage Whole House Well Water Filter System with Iron + Softener 6-Stage Complete Whole House Well Water Filter System with Iron + UV
Household1-4 people4-8 people
Bathrooms1-33-5
What it treats4 stages: iron + pH + hardness6 stages: iron + pH + hardness + taste + bacteria
Max flow before pressure drop8-10 GPM12-14 GPM
Backwash requiredYes (iron, softener)Yes (iron, softener)
PriceFrom $5,150From $8,295
Shop now Shop now
4-Stage Whole House Well Water Filter System with Iron + Softener

4-Stage (Iron + Softener)

From $5,150
Household
1-4 people
Bathrooms
1-3
What it treats
4 stages: iron + pH + hardness
Max flow before pressure drop
8-10 GPM
Backwash required
Yes (iron, softener)
Shop 4-Stage (Iron + Softener)
6-Stage Complete Whole House Well Water Filter System with Iron + UV

6-Stage Complete

From $8,295
Household
4-8 people
Bathrooms
3-5
What it treats
6 stages: iron + pH + hardness + taste + bacteria
Max flow before pressure drop
12-14 GPM
Backwash required
Yes (iron, softener)
Shop 6-Stage Complete
Stage by stage

How a complete well water system is built

A complete system treats water in stages, in a deliberate order. Each stage protects the next: sediment guards the valves and media, iron is removed before the acid neutralizer so it cannot coat the calcite, hardness is taken out before carbon, and UV goes last because it only works in clear water. Your test decides which of these stages you actually need.

01

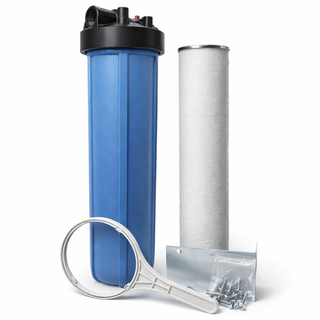

Sediment filter

First after the pressure tank. A 20 inch Big Blue (5 micron) catches sand, silt, and rust flakes so they cannot clog the valves and media downstream. Skip only if your water is truly grit-free.

02

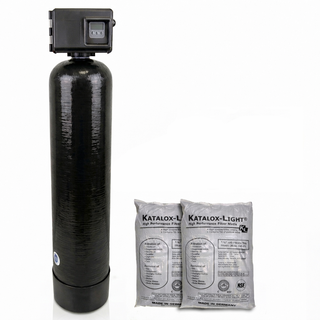

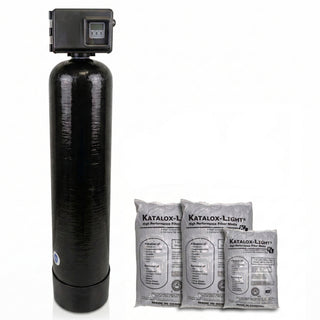

Iron & sulfur filter

If you have iron, manganese, or rotten-egg sulfur, this goes next. An air-injection (AIO) Katalox Light filter oxidizes and removes them in one tank. It comes before the acid neutralizer on purpose: the water has to be iron-free before it reaches the calcite, or the iron coats the bed and the neutralizer stops working.

03

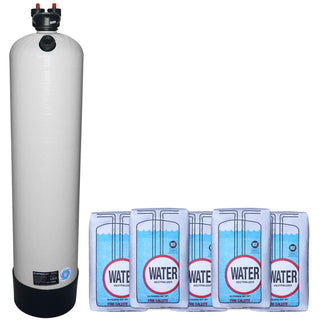

Acid neutralizer

If your pH is low (blue-green stains, pinhole copper leaks), calcite media raises it back to neutral. It dissolves a little calcium into the water, so it slightly increases hardness, which is why a softener often follows.

04

Water softener

Removes the calcium and magnesium that cause scale and spotting, including the small amount the neutralizer adds. A softener is not a substitute for an iron filter; meaningful iron fouls the resin, so iron is removed upstream first.

05

Carbon filter

A polish stage for taste, odor, chlorine or chloramine (if you ever add a feed), VOCs, and residual sulfur. It goes after iron and sediment so they do not blind the carbon. Not every well needs it.

06

UV disinfection

Last stage before the house. UV inactivates bacteria and viruses, but only in clear water, so it always sits after iron, sediment, and any other particulate removal. A 5 micron pre-filter protects the lamp.

Installation

We ship it with everything included. You or your plumber install it.

Every system ships with all media included. The softener's resin comes pre-loaded; the heavier filter media (Katalox-Light, calcite, carbon) ships in separate bags that you pour into the tank through the fillport at install, because shipping a loaded tank would damage it in transit. The job is straightforward for anyone who does residential plumbing, and Aidan is a phone call away if your plumber hits something unusual about your setup.

1 day

Typical install for a multi-stage system by a licensed plumber. Single-stage systems run 2 to 4 hours.

1"

Plumbing connections on every tank. CPVC or PEX with SharkBite fittings both work.

100%

Phone support included. Aidan walks your plumber through your specific layout.

What to have ready

  • 120V outlet (for powered stages)Within 6 ft of any iron filter, softener, or UV stage. Off-grid and non-backwashing systems need none.
  • Drain within 20 ft (for backwashing stages)Iron filters and softeners regenerate to drain. Non-backwashing and off-grid builds need no drain.
  • Wall and floor spaceA full multi-stage train needs roughly 4 to 6 ft of wall near where the well line enters, with about 60 in of height.
  • Cold line, after the pressure tankInstall on the cold main, downstream of the pressure tank, upstream of the water heater, in treatment-stage order.

What your plumber will do

  1. Confirm your stage order against your water test before you start: sediment, then iron/sulfur, then acid neutralizer, then softener, then carbon, then UV.
  2. Set each tank in place on the cold line after the pressure tank and level it.
  3. Plumb 1" inlet and outlet on each tank with isolation valves so any stage can be bypassed for service.
  4. Run drain tubing from backwashing stages (iron filter, softener) to a floor drain or standpipe with an air gap.
  5. Power the iron filter, softener, and UV controller from grounded 120V outlets.
  6. Open the water slowly, a quarter turn at a time, and flush each media tank to settle the bed and purge air.
  7. Set the time of day on each valve; the factory backwash schedules suit most wells.
  8. Send the system builder schematic to your plumber ahead of install day so the sequence is clear.

Build your system and get a plumbing schematic. The system builder maps your stages in order for your specific water.

Open the system builder
Media comparison

Compare complete well water systems

SystemBest forBathroomsProblems solvedSaltPowerDrainPrice
Acid Neutralizer + SoftenerLow pH + hard water, no iron2-4pH, hardnessYesYesYes$2,995
Iron + SoftenerIron + hard water2-4Iron, manganese, sulfur, hardnessYesYesYes$3,695
Core 4-StageIron + low pH + hard water1-3Iron, pH, hardnessYesYesYes$5,150
Core 5-Stage (+ UV)Untested well, want bacteria protectionUp to 3Iron (30 ppm), pH, hardness, bacteriaYesYesYes$5,995
Complete 6-StageTreat everything, standard homes3-5Iron (30 ppm), pH, hardness, taste, bacteriaYesYesYes$8,295

Iron, manganese, sulfur, and hardness figures are each system's tested ceiling, not a guarantee for every well. Size from your water test. Salt, power, and drain reflect the stages included. See every system in the grid above, or text Aidan your results for a match.

Real customers, real wells

What homeowners say after installing a complete system

Verified by Stamped.io

Every review is independently collected and verified by Stamped.io, a third-party review platform. We cannot edit or remove reviews.

★★★★★
Solved my very high iron issues
I have well water with over 20 ppm ferrous and 7 ppm of ferric iron, along with manganese and some sulfur. I was rejected by local water companies saying they could not help me. I purchased two Fleck 2.5 cu. ft. 2510AIO Iron Filter tanks with Katalox-Light media and air injection. Great customer service.
Iron Filter (Katalox-Light AIO) · 2024-10-05
★★★★★
Couldn't be better
The customer service offered by Mid Atlantic Water was outstanding. I had multiple questions answered from prepurchase through installation. I installed it myself fairly easily and it 100% fixed my acidic well water issue. It took my 5.5 pH well water to 7.2 using the 2.5 cu ft non-backwashing acid neutralizer.
Acid Neutralizer (2.5 cu ft NB) · 2025-01-02
★★★★★
Great to deal with
I called before ordering to discuss the well tank, iron filter, and softener I was going to purchase. Aidan answered all my questions and confirmed my research and choices. Great pricing, fast shipping, and awesome communication.
Multi-stage well water system · 2020-05-11
FAQ

Frequently asked questions

There is no single best system, because the right one depends on what your water test shows. Most well homes need two to four treatment stages, not all of them. A well with rust stains, low pH, and hard water needs an iron filter, an acid neutralizer, and a softener; a well whose only issue is bacteria needs a sediment filter and UV. Start with a certified water test, then size each stage to your results and household.

Usually yes, if your test shows a problem. Well water is not treated by a municipality, so whatever is in the ground reaches every tap. A point-of-entry (whole-house) system protects fixtures, water heaters, and appliances, not just drinking water. If your test is clean, you may only want a sediment filter or point-of-use drinking water filter.

After the pressure tank: sediment, then iron and sulfur, then acid neutralizer, then water softener, then carbon, then UV. Order matters. The iron filter comes before the acid neutralizer so the water is iron-free before it reaches the calcite (iron coats and ruins the calcite bed otherwise). UV always comes last because it only works in clear water. Most homes use only some of these stages.

No. No single filter does all of that. An air-injection iron filter removes iron, manganese, and sulfur in one tank, but hardness needs a softener, bacteria needs UV, and sediment needs a pre-filter. That is why complete well water systems are built from several stages in sequence.

A softener removes hardness (calcium and magnesium), but it is not an iron filter or a whole-house filter. It can handle trace ferrous iron, but iron above roughly 1 to 2 ppm permanently fouls the resin. If your well has meaningful iron, a dedicated iron filter goes in ahead of the softener.

No. Carbon is a taste, odor, and chemical polish, not a universal health treatment. On wells it helps with taste, odor, VOCs, light sulfur, and chlorine if you ever add a feed. It does not remove iron, hardness, bacteria, arsenic, or nitrate. Treat those with the right dedicated stage.

Only if your water tests positive for coliform or bacteria. UV inactivates bacteria and viruses, but it works only in clear water, so it must sit after iron, sediment, and other particulate removal, with a 5 micron pre-filter protecting the lamp. UV does not remove iron, hardness, or chemicals.

A complete multi-stage system is roughly $5,000 to $6,000 shipped as a DIY package. A simpler stack (sediment plus iron plus softener) runs less, and a single stage like an acid neutralizer starts around $1,200 to $1,500. A comparable system installed by a local company is often quoted at $10,000 to $15,000. Add roughly $800 to $2,000 if you hire a plumber to install.

Yes, many of our customers do. Systems ship with all media included. Softener resin is pre-loaded; heavier filter media pours into the tank at install (it ships in separate bags so the tank survives transit). A single stage is a 2 to 4 hour job; a full multi-stage train is closer to a day. If you would rather hire a plumber, the system builder generates a schematic to hand them, and Aidan supports your installer by phone.

Most upkeep is light and seasonal. Sediment cartridges change every few to twelve months, softeners need salt, acid neutralizers get a calcite top-off every year or two, and UV lamps are replaced annually. Iron and carbon media last several years. Exact intervals depend on your water and use; we give you a maintenance schedule with your system.

Yes, always. Symptoms overlap and private wells vary well to well, even on the same street. A certified test for the key parameters (iron, manganese, pH, hardness, bacteria, and more) tells you which stages you need and how to size them, so you do not over-buy or under-treat. We read your results with you for free.

Size by household size, bathroom count, and what your well pump can sustain, not just the contaminant level. Smaller homes (1 to 3 baths) fit smaller tanks; larger or high-demand homes need higher service flow and larger media volumes. Backwashing stages also need your well pump to sustain a minimum GPM to self-clean. If you do not know your pump output, we help you figure it out on the phone.
