6-Stage Complete Whole House Well Water Filter System with Iron + UV
6-Stage Complete Whole House Well Water Filter System with Iron + UV
Every tank ships empty. The Katalox Light, calcite, softener resin and Centaur carbon ship in separate bags or boxes and are loaded into the tanks at install through the included fill funnels. Drain tubing is not included.
Sediment 20 inch Big Blue sediment filter kit
- ✓ Pentek 1 inch Big Blue housing, about 23 inches tall, with a pressure-relief button
- ✓ One 5 micron melt-blown cartridge
- ✓ Wall bracket and screws, and a spanner wrench
- ✓ The parts can arrive in two boxes
Iron and sulfur Fleck 2510AIO iron filter, 2.5 cubic feet
- ✓ Fleck 2510AIO air-injection control valve with a stainless steel bypass valve
- ✓ 13 x 54 inch Vortech mineral tank, shipped empty
- ✓ 2.5 cubic feet of Katalox Light in separate bags
- ✓ Rated for up to 30 ppm iron, 15 ppm manganese and 10 ppm hydrogen sulfide
Low pH Clack acid neutralizer, 2.5 cubic feet
- ✓ Clack C1190 non-backwashing upflow valve with a bypass valve
- ✓ 13 x 54 inch Vortech tank with a side fill port, shipped empty
- ✓ Five 50 lb bags of calcite (2.5 cubic feet)
- ✓ No electricity and no drain
Hardness Fleck 5600SXT softener, 64,000 grain
- ✓ Fleck 5600SXT metered control valve with the 1 inch stainless steel bypass pre-installed
- ✓ Vortech mineral tank, shipped empty
- ✓ 2.0 cubic feet of 10% crosslink resin in separate bags
- ✓ Brine tank with a safety float
Taste and chlorine Clack carbon tank, 2.5 cubic foot tank
- ✓ Clack C1190 non-backwashing head with a bypass valve
- ✓ 13 x 54 inch Vortech tank, shipped empty
- ✓ 2 cubic feet of Centaur catalytic carbon in two 1 cubic foot packs
- ✓ No electricity and no drain
Bacteria VIQUA VH410 UV light
- ✓ Stainless steel UV chamber with the quartz sleeve inside
- ✓ UV lamp in its own cardboard tube; it slides into the sleeve at install
- ✓ Controller that counts down the lamp's days and beeps when it is due
Not included What your plumber supplies
- ✓ Drain tubing for the iron filter and the softener
- ✓ Pipe, fittings and adapters
- ✓ Softener salt
- ✓ A GFCI outlet for the UV light
Free freight shipping to the lower 48 states. The package can arrive in more than one shipment: the media, the Big Blue parts and the UV lamp can come separately.
Questions before or during the install? Call 800-460-5810 or text Aidan at 443-277-2204, 7 days a week, 8 AM to 5 PM Eastern.
Who it fits
| Household | 5 or 6 people up to about 15 grains per gallon; 3 or 4 on harder water (about 30 grains for 3, 20 for 4). More: text Aidan. |
| Water source | Private well. Not for city water. |
| Iron, manganese, sulfur | Up to 30 ppm iron, 15 ppm manganese, 10 ppm hydrogen sulfide |
| pH | Calcite corrects down to pH 5.5 (lower needs FloMag, not included). The iron filter works best near pH 8. |
| Bacteria | Coliform and E. coli: the UV light kills them as the water flows past the lamp |
| Well flow needed | About 10 GPM to backwash the iron filter |
| System flow | About 13 GPM (the softener is the slowest stage) |
| Power | Three outlets: iron filter valve, softener valve, UV controller (on a GFCI) |
| Drains | Two: iron filter and softener. Tubing not included. |
Sediment filter
| Housing | 20 inch Big Blue (Pentek 150233), about 23 x 7.5 inches, 1 inch female NPT ports |
| Cartridge | 5 micron melt-blown polypropylene |
| Flow | 1 psi pressure drop at 15 GPM through the empty housing |
| Limits | 90 psi maximum; cold water only |
| Cartridge change | About every 4 to 6 months on a typical well |
Iron and sulfur filter
| Valve | Fleck 2510AIO air injection |
| Media | 2.5 cubic feet of Katalox Light (media certified to NSF/ANSI 61) |
| Tank | 13 x 54 inch Vortech |
| Service flow | 17 GPM |
| Backwash | Needs about 10 GPM from the well; about 140 gallons per backwash; ships set to backwash every day and can be set to less |
| Power and drain | Standard outlet; a drain line your plumber sizes for the backwash |
| Media life | 6 to 8 years |
| Warranty | 5-year warranty on the Fleck 2510AIO control valve, 10-year warranty on the Vortech tank |
Acid neutralizer
| Valve | Clack C1190 non-backwashing upflow |
| Media | 2.5 cubic feet of calcite (five 50 lb bags) |
| Tank | 13 x 54 inch Vortech, about 58 inches tall installed, side fill port |
| Flow | Up to 17 GPM |
| Hardness added | About 3 to 6 grains per gallon (the softener removes it) |
| Power and drain | None |
| Connections | 1 inch male threaded |
| Warranty | 10-year tank, 5-year valve; NSF/ANSI 61 certified components |
Water softener
| Valve | Fleck 5600SXT metered (regenerates by gallons used) |
| Resin | 2.0 cubic feet of 10% crosslink resin |
| Tank | Vortech mineral tank, with a brine tank and safety float |
| Capacity | About 60,000 grains on full salt, 48,000 on a salt-saving setting |
| Service flow | 13 GPM |
| Per regeneration | About 10 lb of salt and 35 to 65 gallons of water |
| Bypass | 1 inch stainless steel, pre-installed |
| Power and drain | Standard outlet; 1/2 inch drain tubing (not included) |
| Warranty | 5 years on the control valve (Pentair), 10 years on the mineral tank, 5 years on the brine tank |

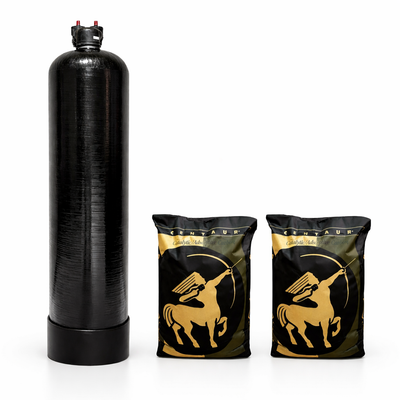

Carbon tank
| Head | Clack C1190 non-backwashing |
| Media | 2 cubic feet of Centaur catalytic carbon in the 2.5 cubic foot tank |
| Tank | 13 x 54 inch Vortech |
| Flow | Up to about 17 GPM |
| Power and drain | None |
| Connections | 1 inch male thread |
| Carbon life | About every 5 years (5 to 6 on the 2.5) |
| Warranty | 10-year tank, 5-year Clack head |
UV light
| Model | VIQUA VH410 |
| Flow (VIQUA) | 18 GPM at VIQUA's standard 30 mJ/cm2 dose; 14 GPM at 40 mJ/cm2 |
| Chamber | Stainless steel, 23.5 x 3.5 inches; combo 3/4 inch FNPT / 1 inch MNPT ports |
| Power | 60 watts, about $95 a year |
| Lamp | S410RL-HO, about 9,000 hours: replace once a year |
| Controller | Counts down the lamp's days and alarms if the lamp fails; no UV sensor |
| Warranty (VIQUA) | Chamber 10 years, controller 3 years, lamp and sleeve 1 year |
The package is not certified as a system. The ratings above are each component's own.
Order, from the well to the house
- Pressure tank (your existing tank)
- 20 inch Big Blue sediment filter, the first filter after the pressure tank
- Iron filter and acid neutralizer: Aidan sets which one goes first from your water test
- Water softener, after both
- Carbon tank, after the softener
- UV light, last, on the cold line before any branch
Power
Three stages plug in: the iron filter valve, the softener valve and the UV controller. VIQUA requires a GFCI outlet for the UV, which is not included. The sediment filter, neutralizer and carbon tank need no power.
Drains
The iron filter and the softener need a drain: a floor drain, utility sink or standpipe. Tubing is not included; your plumber sizes the iron filter's drain line for its backwash flow, and the softener uses 1/2 inch tubing. The sediment filter, neutralizer and carbon tank have no drain.
Well flow
The iron filter needs about 10 gallons a minute from the well to backwash. If your well gives less, tell Aidan before you order.
Space
Four 13 inch wide mineral tanks (the neutralizer stands about 58 inches tall with its valve), the softener's brine tank, the Big Blue housing on the wall and the UV chamber. Leave about 23.5 inches clear at the UV's lamp end so the lamp and sleeve can come out; VIQUA prefers the chamber mounted vertically.
Loading the media
Each tank ships empty. At install your plumber loads the Katalox Light, calcite, resin and carbon through the included funnels, and slides the UV lamp into its sleeve.
Time
A licensed plumber typically needs 2 to 3 hours for a single tank; Aidan's estimate for a four-stage well train is 3 to 4 hours. Six stages take longer, so ask your plumber to quote the whole job.
Sediment filter About every 4 to 6 months
Swap the 5 micron cartridge about every 4 to 6 months on a typical well: up to 12 months on a clean well, every other month on a dirty one. Flow dropping is the sign. Replacement cartridge, $55.
Iron filter Media every 6 to 8 years
It backwashes on its own. The Katalox Light lasts 6 to 8 years; a refill for the 2.5 is about $875 at today's prices (two 1 cubic foot bags and one 1/2 cubic foot bag).
Acid neutralizer Check yearly
Calcite dissolves as it works. Once a year, shine a flashlight behind the tank to see the level; add calcite when it is about half gone, about every 30 to 36 months on the 2.5. Calcite, $145 a 50 lb bag.
Water softener Salt
Keep the salt level above the water level in the brine tank; it uses about 10 lb of salt per regeneration. In Aidan's service work, 10% crosslink resin on water protected from iron and chlorine has lasted 30 to 40 years.
Carbon tank About every 5 years
Replace the carbon about every 5 years (5 to 6 on the 2.5): with the head off, the old carbon comes out and two 1 cubic foot packs of Centaur go in through a funnel, $590 at today's prices. The tank stays.
UV light Lamp once a year
The controller counts down the lamp's days and beeps when it is due. Replacement lamp, $170. Clean the quartz sleeve when you change the lamp, and replace it only if it will not come clean (sleeve, $145). VIQUA calls for disinfecting the plumbing after any lamp or sleeve change.
Questions about upkeep? Call 800-460-5810 or text Aidan at 443-277-2204, 7 days a week, 8 AM to 5 PM Eastern.
What homeowners are saying
What's In This Package
Installed in this order on your main water line.
Video Guides
Watch our well water treatment guides

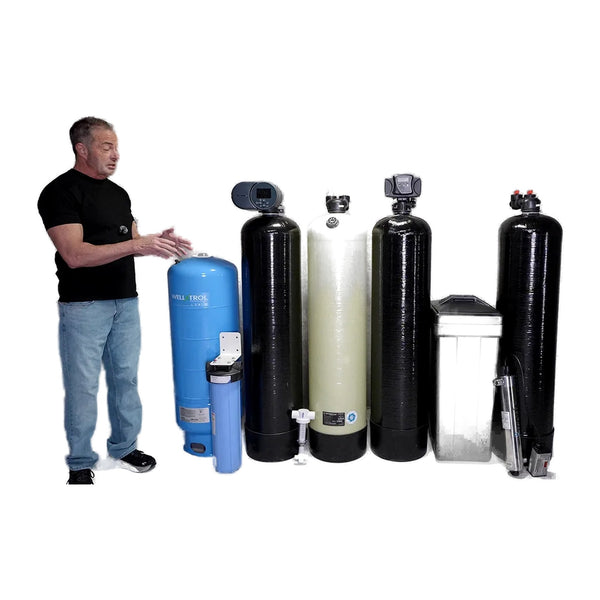

Complete Guide to Well Water Filtration Systems
Best Sediment Filter for Well Water
Iron Filters for Well Water: The Complete Guide
Acid Neutralizer for Well Water: The Complete Guide
Best Water Softener for Well Water
Best Whole House Carbon Filter
Best UV Light for Well Water: Viqua VH410 Review
Who This 6-Stage System Is For
Iron, low pH, hard water and bacteria on one well
This package is for a well whose water test shows several problems at once: iron or manganese (orange or black stains, a rotten egg smell), low pH (blue-green stains, pinhole leaks in copper pipe), hard water (scale and spots), and bacteria (a coliform or E. coli result). Each problem gets its own stage, with a sediment filter in front and the UV light last.
The 64,000 grain softener sets the household size: 5 or 6 people on water up to about 15 grains per gallon, or 3 or 4 people on harder water (up to about 30 grains for 3, about 20 for 4). The neutralizer adds 3 to 6 grains as it works, so count those. The iron filter is rated for up to 30 ppm iron, 15 ppm manganese and 10 ppm hydrogen sulfide, works best near pH 8, and needs about 10 gallons a minute from your well to backwash.
If your test shows only some of these problems, a smaller package fits: no iron, the Well King (the same train without the iron filter); iron and hard water with a normal pH and no bacteria, the 2.5 iron filter and 64,000 grain softener package; 1 or 2 people at pH 6.0 to 6.9, the 4-stage small-home package. On city water this is the wrong system. Send Aidan your test and he will tell you which one fits.
Every mineral tank is a Vortech tank and ships empty; the media comes in separate bags and is loaded at install, and drain tubing is not included. We recommend a licensed plumber; Aidan supports your plumber by phone at 800-460-5810. Free freight to the lower 48 states.
