Clack 2.5 Cubic Foot, Non Backwashing Whole House Carbon Filter
|
Clack 2.5 Cubic Foot, Non Backwashing Whole House Carbon Filter
Not sure which carbon filter is right for your water?
Send Aidan your water test results and he'll tell you exactly what you need. City water with chlorine? Well water with rotten egg smell? He'll size the right system. No guessing, no upselling.

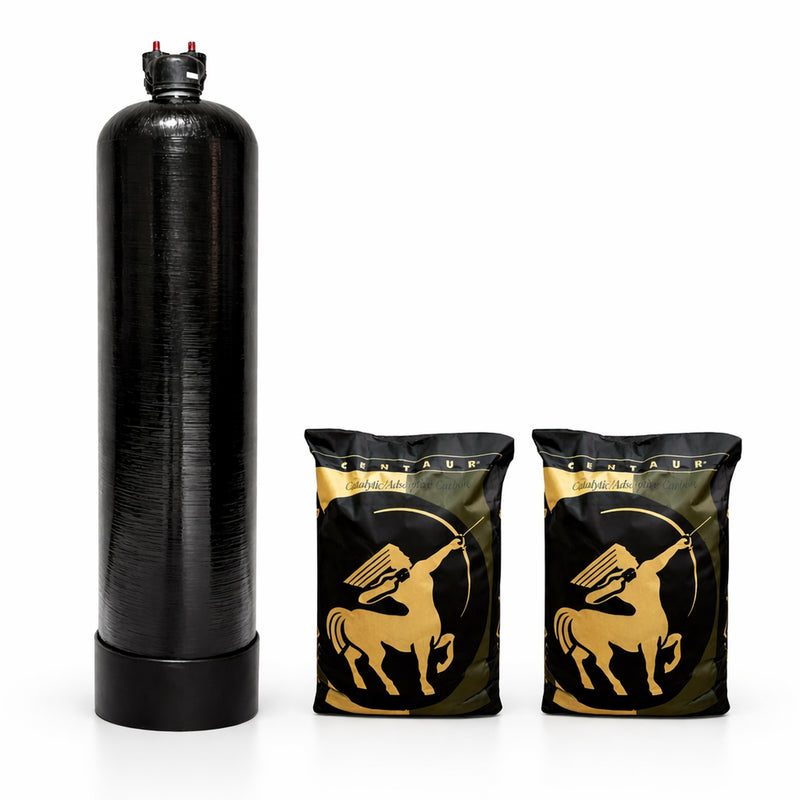

Complete Non-Backwashing Carbon Filter System
- ✓ 2.5 cubic foot Vortech mineral tank (13" x 54") - gravel-free design for easier media changes and better flow distribution
- ✓ Clack C1190 upflow control valve - NSF Certified, non-electric, 1" male NPT connections
- ✓ 2.5 cubic feet of Centaur catalytic carbon - premium bituminous coal carbon by Calgon Carbon, the gold standard for hydrogen sulfide and chloramine removal
- ✓ Bypass valve - lever-actuated for easy maintenance and system isolation
- ✓ Fill funnel - add or replace carbon without removing the valve head
- ✓ Free shipping to all lower 48 states
Recommended add-on: A 20" Big Blue sediment filter upstream protects the carbon bed from sediment and extends media life. Especially important for well water.
System Overview
| System Type | Non-backwashing upflow carbon filter |
|---|---|
| Service Flow Rate | Up to 15 GPM |
| Total System Height | 58" (with valve) |
| Connections | 1" male NPT inlet/outlet |
| Electricity | None required |
| Drain Line | None required |
| Operating Pressure | 20 to 120 PSI |
| Operating Temp | 36 to 120 degrees F |
| Certification | NSF Certified |
| Warranty | 5-year valve / 10-year tank |
| Made In | USA |
Vortech Mineral Tank
| Dimensions | 13" diameter x 54" tall |
|---|---|
| Material | Polyglass composite |
| Design | Vortech gravel-free (no underbed required) |
| Capacity | 2.5 cubic feet of media |
| Top Opening | 2.5" x 8" NPT |
Clack C1190 Control Valve
| Type | Non-electric in/out upflow valve |
|---|---|
| Connections | 1" male NPT |
| Tank Thread | 2.5" NPSM |
| Distributor Opening | 1.05" O.D. |
| Material | Thermoplastic resin |
| Vent Port | 1/4" FIPT (drillable, pre-tapped) |
Centaur Catalytic Carbon Media
| Manufacturer | Calgon Carbon (Centaur 12x40) |
|---|---|
| Base Material | Bituminous coal (patented catalytic process) |
| Mesh Size | 12x40 |
| Iodine Number | 825+ mg/g |
| Abrasion Number | 75+ |
| Apparent Density | 0.56+ g/cc |
| Backwash Density | 33 lb/ft3 (drained) |
| Mean Particle Diameter | 0.9 to 1.1 mm |
| Compliance | ANSI/AWWA B604, Food Chemicals Codex (FCC) |
Contaminants Removed
✓ Hydrogen Sulfide (Rotten Egg Smell)
✓ Chlorine
✓ Chloramines
✓ PFAS
✓ VOCs (Volatile Organic Compounds)
✓ Taste & Odor Compounds
⚡
No electricity. No drain line. No programming. This is one of the simplest whole-house water treatment systems to install. Just plumb it inline on your main water line.
Installation Steps
- Shut off the main water supply and relieve pressure at a nearby faucet
- Install a 20" Big Blue sediment filter upstream to protect the carbon media (strongly recommended)
- Connect the system inlet to the main water line. Water enters from the bottom of the tank (upflow design)
- Connect the outlet to your house plumbing
- Open the bypass valve slowly, then switch to service position
- Run water for 10 to 15 minutes to flush carbon fines (water will be dark at first, that's normal)
Recommended System Order
Well / City Supply
→
Pressure Tank
→
Sediment Filter
→
Carbon Filter (this unit)
→
Water Softener
→
House
Need help? Call or text Aidan at 800-460-5810. Available 7 days a week for sizing questions, installation guidance, and troubleshooting.
✨
Minimal maintenance, no backwash cycles to manage. The upflow design naturally redistributes the carbon bed during use, reducing channeling and extending media life.
Maintenance Schedule
- Every 4 to 5 Years Replace Centaur carbon media. The included fill funnel makes adding new carbon straightforward without removing the valve head. Dump old media, rinse the tank, add fresh carbon, and flush for 10 to 15 minutes.
- Every 3 to 6 Months Replace sediment pre-filter cartridge (if using a Big Blue upstream). Frequency depends on sediment levels in your water.
- Periodic Monitor water quality. If the rotten egg smell, chlorine taste, or odor starts coming back before year 4, your water may have higher contaminant levels. Test and consider replacing media sooner.
Replacement Carbon Media
- 📦 Centaur Catalytic Carbon - 2.5 Cubic Feet (full system refill)
- 📦 Centaur Catalytic Carbon - 1.0 Cubic Foot (individual box)
Pro tip: Always use genuine Centaur catalytic carbon for replacement. Standard coconut shell or wood-based carbon doesn't have the catalytic properties needed for hydrogen sulfide and chloramine removal. Need help with media replacement? Call or text 800-460-5810.
- 📘Carbon Filters for Water: The Complete Guide→
- ⚖️Backwashing vs Non-Backwashing Carbon Filters→
- 💧Carbon Filter for Well Water: Do You Need One?→
- 🔬What Is Activated Carbon? How Carbon Filters Work→
- 🔗Carbon Filter and Water Softener: Do You Need Both?→
- 🔄Carbon Filter vs Reverse Osmosis: Which Do You Need?→
What homeowners are saying
Video Guides
Watch: Complete guide to well water filtration has 32 years of industry experience.
Complete Guide to Well Water Filtration Systems
Why Choose a Non-Backwashing Centaur Carbon Filter?
Professional-Grade Carbon Filtration Without the Complexity
This 2.5 cubic foot non-backwashing carbon filter delivers whole-house water treatment without the complexity of backwashing systems. Using Centaur catalytic activated carbon (the same premium media used in municipal water plants) it removes hydrogen sulfide, chlorine, chloramines, PFAS, VOCs, and taste/odor compounds on contact.
The upflow design through a Vortech gravel-free tank means no electricity, no drain line, and no wasted water from backwash cycles. Water enters from the bottom, passes up through 2.5 cubic feet of catalytic carbon, and exits clean through the Clack C1190 valve. The Vortech tank eliminates the traditional gravel underbed, making future media replacement significantly easier.
Designed for city water and well water. Handles flow rates up to 15 GPM, enough for most 3 to 5 bathroom homes. Pair it with a water softener for comprehensive treatment, or use it standalone for chlorine, odor, and chemical removal.
✔
NSF Certified
✔
15 GPM Flow Rate
✔
No Electricity Needed
✔
No Drain Required
✔
Centaur Catalytic Carbon
✔
Vortech Gravel-Free Tank
✔
Made in USA
| Feature | Our System | Others |
|---|---|---|
| Carbon Media | ✔ Centaur Catalytic Carbon (Premium) | Standard Coconut Shell Carbon |
| Media Capacity | ✔ 2.5 Cubic Feet | 1.0 to 1.5 Cubic Feet |
| Tank Technology | ✔ Vortech Gravel-Free | Gravel Bed Required |
| Control Valve | ✔ Clack C1190 (NSF Certified) | Generic Plastic Valve |
| Service Flow Rate | ✔ Up to 15 GPM | 7 to 10 GPM |
| Electricity Required | ✔ None | Required (Backwash Models) |
| Drain Line Required | ✔ None | Required (Backwash Models) |
| Expert Support | ✔ 7-Day Phone, Text & Email | Limited or None |
| Warranty | ✔ 5-Year Valve + 10-Year Tank | 1-Year Limited |
