Clack 1.5 Cubic Foot Vortech Non Backwashing Whole House Carbon Filter
Watch This Before Buying
Meet Aidan, your water treatment expert

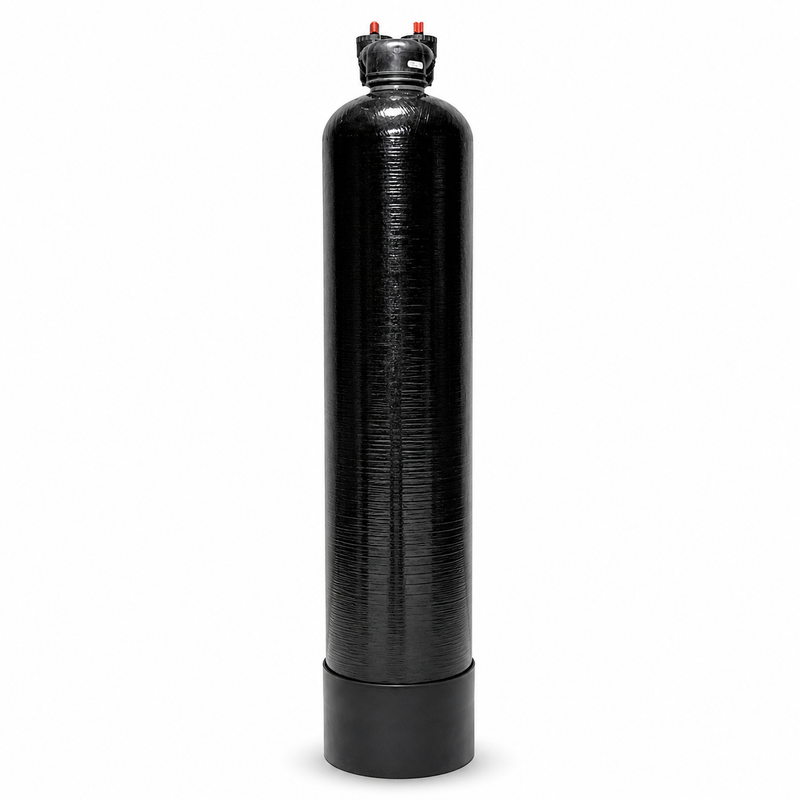

Clack 1.5 Cubic Foot Vortech Non Backwashing Whole House Carbon Filter
Watch This Before Buying
Meet Aidan, your water treatment expert
Not sure which carbon filter you need?
I'm the guy in the videos. Send me your city water report or your well test and I'll tell you which tank fits: on city water it's a non-backwashing tank, the 2.5 in most homes and the 1.5 in smaller ones. If something else has to go in first, or a cheaper option would honestly do the job, I'll say that too.
Complete Non-Backwashing Carbon Filter System
- ✓ Vortech 10" x 54" mineral tank (the 1.5 cubic foot tank size) - distributor plate at the bottom, no gravel underbed; ships empty
- ✓ Clack C1190 upflow control valve - NSF/ANSI 44, 61 and 372 certified, non-electric, set up for upflow service, 1" male connections, a few parts to assemble on the tank
- ✓ 1.5 cubic feet of Centaur catalytic carbon - one 1 cubic foot box and one 1/2 cubic foot box of Centaur 12x40 by Calgon Carbon, a catalytic carbon made for chloramine; loaded into the tank at install
- ✓ Bypass valve - lever-actuated for easy maintenance and system isolation
- ✓ Fill funnel - sits in the tank's 2.5" top opening to pour in the carbon with the head off
- ✓ Free shipping to all lower 48 states
- Not included: plumbing fittings; your plumber supplies the 1" connections. No drain line or outlet is needed. The box has little or no install paperwork: use our install guides, the videos, or text Aidan.
Recommended add-on: A 20" Big Blue sediment filter ahead of the system protects the carbon on well water. On city water a sediment prefilter is usually not needed.
System Overview
| System Type | Non-backwashing upflow carbon filter |
|---|---|
| Service Flow Rate | Up to about 10 GPM |
| Total System Height | 58" (with valve) |
| Connections | 1" male inlet/outlet (fittings not included) |
| Electricity | None required |
| Drain Line | None required |
| Operating Pressure | 20 to 125 PSI |
| Operating Temp | 40 to 110 degrees F (cold water only) |
| Certification | NSF/ANSI 44, 61, 372 (Clack head) |
| Warranty | 5-year valve / 10-year tank |
| Assembled In | USA |
Vortech Mineral Tank
| Dimensions | 10" diameter x 54" tall |
|---|---|
| Material | Polyglass composite |
| Design | Vortech: distributor plate at the bottom, no gravel underbed |
| Tank Size | 1.5 cubic feet; ships with 1.5 cubic feet of carbon |
| Top Opening | 2.5" x 8" NPT |
Clack C1190 Control Valve
| Type | Non-electric in/out upflow valve |
|---|---|
| Connections | 1" male |
| Tank Thread | 2.5" NPSM |
| Distributor Opening | 1.05" O.D. |
| Material | Thermoplastic resin |
| Vent Port | 1/4" FIPT (drillable, pre-tapped) |
Centaur Catalytic Carbon Media
| Manufacturer | Calgon Carbon (Centaur 12x40) |
|---|---|
| Base Material | Bituminous coal (patented catalytic process) |
| Mesh Size | 12x40 |
| Iodine Number | 825+ mg/g |
| Abrasion Number | 75+ |
| Apparent Density | 0.56+ g/cc |
| Backwash Density | 33 lb/ft3 (drained) |
| Mean Particle Diameter | 0.9 to 1.1 mm |
| Compliance | ANSI/AWWA B604, Food Chemicals Codex (FCC) |
Contaminants Reduced
✓ Chlorine
✓ Chloramines
✓ PFAS (reduced, not certified)
✓ VOCs (Volatile Organic Compounds)
✓ Taste & Odor Compounds
✓ Chlorine Byproducts (THMs, HAAs)
✓ Herbicides & Pesticides
⚡
No electricity. No drain line. No programming. We recommend having a plumber install it: there is no drain line and no electricity, just an inlet and an outlet, so it is about an hour or two of a plumber's time. If you'd rather do it yourself, text Aidan at 443-277-2204 with any questions.
Installation Steps
- Shut off the main water supply and relieve pressure at a nearby faucet
- On well water, install a 20" Big Blue sediment filter ahead of the system to protect the carbon (on city water it is usually not needed)
- Pour the two boxes of Centaur carbon into the empty tank through the fill funnel, then assemble the Clack C1190 head on the tank
- Connect the system inlet to the cold main line with 1" fittings (not included). Water enters from the bottom of the tank (upflow design)
- Connect the outlet to your house plumbing
- Open the bypass valve slowly, then switch to service position
- Run water for 10 to 15 minutes to flush carbon fines (water will be dark at first, that's normal)
Recommended System Order: City Water
City Supply
→
Carbon Filter (this unit)
→
Water Softener
→
House
Recommended System Order: Well Water
Well
→
Pressure Tank
→
Sediment Filter
→
Iron Filter
→
Water Softener
→
Carbon Filter (this unit)
→
House
On city water the carbon goes before the softener, because chlorine shortens resin life. On well water it goes last, to polish taste and odor after the iron filter and softener.
Need help? Call 800-460-5810 or text Aidan at 443-277-2204. Available 7 days a week for sizing questions, installation guidance, and troubleshooting.
✨
No annual maintenance and no backwash cycles to manage. Between re-beds there is nothing to do.
Maintenance Schedule
- About Every 4 to 5 Years Replace Centaur carbon media. Take the head off, dump the old carbon into trash bags, pour 1.5 cubic feet of new Centaur in through the included fill funnel, put the head back on and flush for 10 to 15 minutes.
- Every 3 to 6 Months Replace sediment pre-filter cartridge (if using a Big Blue upstream). Frequency depends on sediment levels in your water.
- Periodic Monitor water quality. If the chlorine taste or odor starts coming back before year 4, your water may have higher contaminant levels. Test and consider replacing media sooner.
Replacement Carbon Media
- 📦 Centaur Catalytic Carbon - 1 Cubic Foot Box ($295 per cubic foot; this tank takes 1.5 cubic feet, so text Aidan to order the refill)
Pro tip: Always use genuine Centaur catalytic carbon for replacement. Standard coconut shell or wood-based carbon doesn't have the catalytic properties needed for chloramine removal. Need help with media replacement? Call 800-460-5810 or text Aidan at 443-277-2204.
📘 Carbon Filters for Water: The Complete Guide→
⚖️ Backwashing vs Non-Backwashing Carbon Filters→
💧 Carbon Filter for Well Water: Do You Need One?→
🔬 What Is Activated Carbon? How Carbon Filters Work→
🔗 Carbon Filter and Water Softener: Do You Need Both?→
🔄 Carbon Filter vs Reverse Osmosis: Which Do You Need?→
What homeowners are saying
Video Guides
Watch: the whole house carbon filter we recommend
Best Whole House Carbon Filter (What Actually Works)
A Non-Backwashing Centaur Carbon Filter for Smaller Homes
Chlorine and chloramine out of every tap, with no drain, no power and no backwash
This is the smaller of our two non-backwashing carbon tanks: a Vortech 10 x 54 tank (the 1.5 cubic foot size) with a Clack C1190 non-electric head, shipped with 1.5 cubic feet of Centaur catalytic carbon by Calgon Carbon in two boxes that are loaded into the tank at install. Centaur removes chlorine and decomposes chloramine faster than standard activated carbon, and it reduces chlorine byproducts, VOCs, herbicides, pesticides, PFAS, taste and odor.
Water flows up through the carbon and out the top, so there is no electricity, no drain line and no backwash. Up to about 10 GPM can pass through the tank, and the carbon lasts about 4 to 5 years in most homes. Aidan offers this size to smaller homes of 2 to 4 people; the 2.5 is the one most people get.
On city water it goes before the softener, because chlorine shortens resin life. On well water it goes last, after the iron filter and softener. A light rotten egg smell needs the larger 2.5 tank, and strong sulfur needs a Katalox Light filter.
✔
NSF-Certified Clack Head
✔
Up to 10 GPM Flow
✔
No Electricity Needed
✔
No Drain Required
✔
Centaur Catalytic Carbon
✔
Chlorine & Chloramine
✔
Assembled in USA
| Feature | Our System | Others |
|---|---|---|
| Carbon Media | ✔ Centaur Catalytic Carbon (Premium) | Standard Coconut Shell Carbon |
| Media Capacity | ✔ 1.5 Cubic Feet | 0.5 to 1.0 Cubic Feet |
| Control Valve | ✔ Clack C1190 (NSF/ANSI 61) | Varies by Seller |
| Service Flow Rate | ✔ Up to About 10 GPM | Varies by Seller |
| Electricity Required | ✔ None | Required (Backwash Models) |
| Drain Line Required | ✔ None | Required (Backwash Models) |
| Expert Support | ✔ 7-Day Phone, Text & Email | Limited or None |
| Warranty | ✔ 5-Year Valve + 10-Year Tank | 1-Year Limited |
Carbon Media
✅ Us
Centaur Catalytic Carbon (Premium)
❌ Them
Standard Coconut Shell Carbon
Media Capacity
✅ Us
1.5 Cubic Feet
❌ Them
0.5 to 1.0 Cubic Feet
Control Valve
✅ Us
Clack C1190 (NSF/ANSI 61)
❌ Them
Varies by Seller
Service Flow Rate
✅ Us
Up to About 10 GPM
❌ Them
Varies by Seller
Electricity Required
✅ Us
None
❌ Them
Required (Backwash Models)
Drain Line Required
✅ Us
None
❌ Them
Required (Backwash Models)
Expert Support
✅ Us
7-Day Phone, Text & Email
❌ Them
Limited or None
Warranty
✅ Us
5-Year Valve + 10-Year Tank
❌ Them
1-Year Limited
✔ Free Tech Support
Buy with us and you have a real water treatment expert to call. Carbon refills, a smell that comes back, adding a softener later, questions from your plumber: you have my number.
📞 Call Us
800-460-5810
✉️ Email Support
support@midatlanticwater.net
🕒 Live Hours
7 Days/Week, 8AM-5PM EST
Frequently Asked Questions
