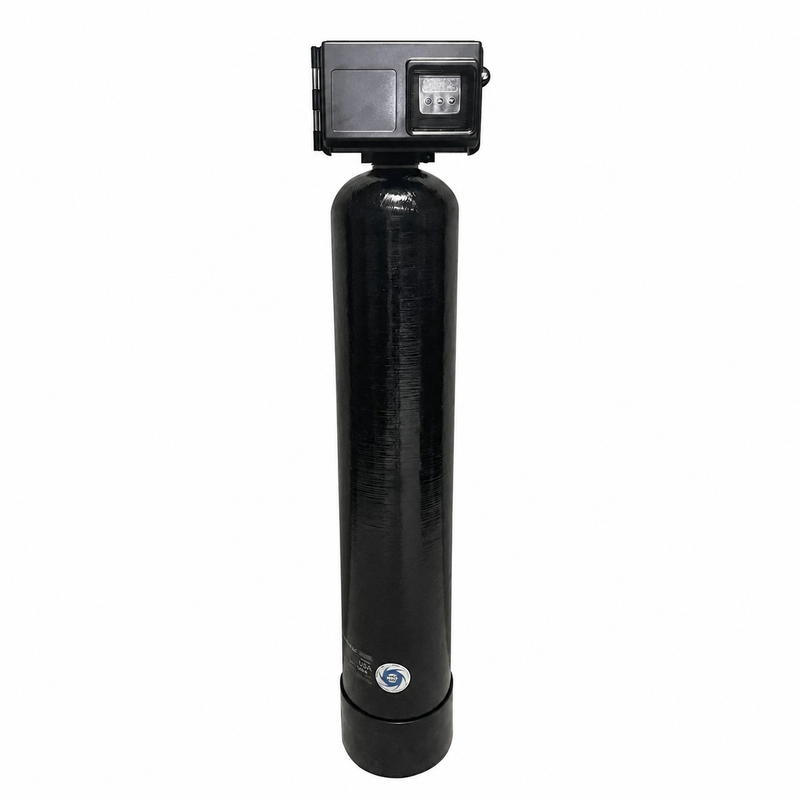

Fleck 2510SXT 1.5 Cubic Foot Whole House Carbon Filter

Automatic backwashing Centaur catalytic carbon filter with Fleck 2510SXT digital valve. Self-cleaning, programmable, professional-grade.

Video thumbnail
Watch This Before Buying Meet Aidan, your water treatment expert
Trusted by 10,000+ Homeowners
|
🇺🇸 Made in USA

Fleck 2510SXT 1.5 Cubic Foot Whole House Carbon Filter

Automatic backwashing Centaur catalytic carbon filter with Fleck 2510SXT digital valve. Self-cleaning, programmable, professional-grade.

Video thumbnail
Watch This Before Buying Meet Aidan, your water treatment expert
Free Shipping Included
Arrives ... to
In Stock — Ships from Ohio warehouse by
Aidan
Not sure which carbon filter is right for your water? Send Aidan your water test results and he'll tell you exactly what you need. Rotten egg smell? Chlorine or chloramine issues? Heavy sediment? He'll size the right backwashing carbon filter for your home. No guessing, no upselling.

Complete Backwashing Carbon Filter System

  • 1.5 cubic foot Vortech mineral tank (10" x 54") - gravel-free design for easier media changes and better flow distribution
  • Fleck 2510SXT digital control valve - fully programmable backwash cycles, LCD display, 1/2" drain connection
  • 1.5 cubic feet of Centaur catalytic carbon - premium bituminous coal carbon by Calgon Carbon, the gold standard for hydrogen sulfide and chloramine removal

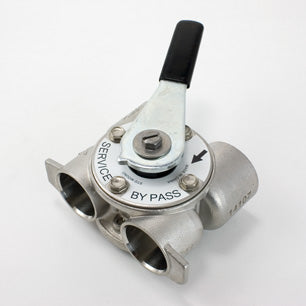

  • 1" stainless steel bypass valve - with 1" female inlet/outlet connections
  • Free shipping to all lower 48 states
Recommended add-on: A 20" Big Blue sediment filter upstream protects the carbon bed from heavy sediment and extends media life. The backwash cycle handles light sediment, but a pre-filter is recommended for well water with visible particles.

System Overview

System TypeAutomatic backwashing carbon filter
Service Flow RateUp to 10 GPM
Total System Height62" (with valve)
Connections1" female NPT inlet/outlet (stainless steel bypass)
Drain Connection1/2" on valve
ElectricityStandard 110V outlet required
Operating Pressure20 to 120 PSI
Operating Temp36 to 120 degrees F
CertificationNSF Approved
Warranty5-year valve / 10-year tank
Made InUSA

Vortech Mineral Tank

Dimensions10" diameter x 54" tall
MaterialPolyglass composite
DesignVortech gravel-free (no underbed required)
Capacity1.5 cubic feet of media

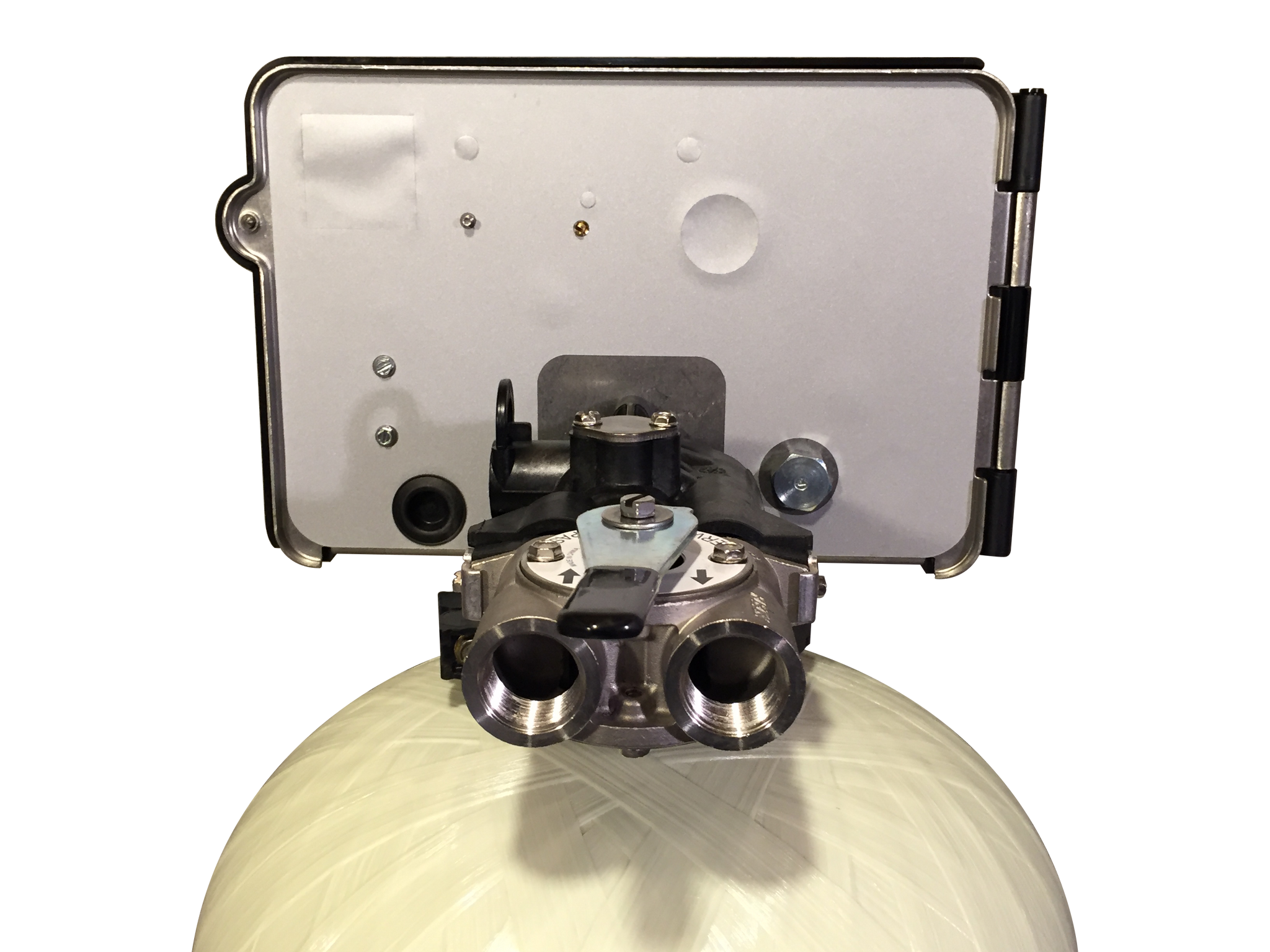

Fleck 2510SXT Control Valve

TypeDigital metered backwashing valve
DisplayLCD with real-time flow and backwash status
Connections1" female NPT (via bypass)
Drain1/2" connection
Power110V transformer (included)
ProgrammingFully adjustable backwash frequency and duration

Centaur Catalytic Carbon Media

ManufacturerCalgon Carbon (Centaur 12x40)
Base MaterialBituminous coal (patented catalytic process)
Mesh Size12x40
Iodine Number825+ mg/g
Abrasion Number75+
Apparent Density0.56+ g/cc
Mean Particle Diameter0.9 to 1.1 mm
ComplianceANSI/AWWA B604, Food Chemicals Codex (FCC)

Contaminants Removed

Hydrogen Sulfide (Rotten Egg Smell)
Chlorine
Chloramines
PFAS
VOCs (Volatile Organic Compounds)
Taste & Odor Compounds
Standard DIY install. You'll need a nearby electrical outlet (110V) and a drain line for the backwash cycle. Most homeowners complete the installation in 2 to 3 hours.
Requirements: A standard 110V electrical outlet within reach of the valve's power cord, and a floor drain or standpipe for the 1/2" backwash drain line.

Installation Steps

  1. Shut off the main water supply and relieve pressure at a nearby faucet
  2. Install a 20" Big Blue sediment filter upstream to protect the carbon media (recommended for well water)
  3. Connect the system inlet and outlet to the main water line using the 1" stainless steel bypass valve
  4. Run the 1/2" drain line from the valve to a floor drain or standpipe
  5. Plug the Fleck 2510SXT transformer into a standard 110V outlet
  6. Program the backwash schedule on the LCD display (Aidan can walk you through this over the phone)
  7. Open the bypass valve slowly, then switch to service position
  8. Run a manual backwash cycle to flush carbon fines (water will be dark at first, that's normal)

Recommended System Order

Well / City Supply Pressure Tank Sediment Filter Carbon Filter (this unit) Water Softener House
Need help? Call or text Aidan at 800-460-5810. Available 7 days a week for sizing questions, installation guidance, backwash programming, and troubleshooting.
The backwash cycle does the heavy lifting. The Fleck 2510SXT automatically reverses water flow on a programmable schedule, flushing sediment and redistributing the carbon bed. This extends media life and maintains consistent water quality.

Maintenance Schedule

  • Automatic Backwash cycle runs on your programmed schedule (typically every 3 to 7 days). The valve handles this automatically. No manual intervention needed.
  • Every 3 to 5 Years Replace Centaur carbon media. Backwashing extends media life by keeping the bed clean and preventing channeling. When it's time, you can order replacement carbon from us.
  • Every 3 to 6 Months Replace sediment pre-filter cartridge (if using a Big Blue upstream). Frequency depends on sediment levels in your water.
  • Periodic Monitor water quality. If you notice the rotten egg smell, chlorine taste, or odor returning, test your water and consider replacing media sooner.

Replacement Carbon Media

Pro tip: Always use genuine Centaur catalytic carbon for replacement. Standard coconut shell or wood-based carbon doesn't have the catalytic properties needed for hydrogen sulfide and chloramine removal. Need help with media replacement or backwash settings? Call or text 800-460-5810.

Video Guides

Meet Aidan, your water treatment expert has 32 years of industry experience.


Why Choose a Backwashing Centaur Carbon Filter?

Self-Cleaning Carbon Filtration with the Fleck 2510SXT

This 1.5 cubic foot backwashing carbon filter combines Centaur catalytic activated carbon with the Fleck 2510SXT digital control valve for fully automatic whole-house water treatment. The Fleck valve runs a programmable backwash cycle that flushes sediment, loosens compacted media, and redistributes the carbon bed, keeping the system performing at its best without manual intervention. Centaur catalytic carbon (manufactured by Calgon Carbon) removes hydrogen sulfide, chlorine, chloramines, PFAS, VOCs, and taste/odor compounds. Unlike standard activated carbon, Centaur's catalytic properties actively break down contaminants rather than just trapping them. The automatic backwash extends media life to 3 to 5 years by preventing channeling and sediment buildup. Designed for well water and city water. Handles flow rates up to 10 GPM, suitable for most 1 to 3 bathroom homes. Requires a standard 110V outlet and drain line. For homes without a nearby drain or outlet, see our non-backwashing carbon filter. Need more capacity? See the 2.5 cubic foot version for larger homes.
NSF Approved
10 GPM Flow Rate
Auto Backwash
Fleck 2510SXT Valve
Centaur Catalytic Carbon
5 & 10 Year Warranty
Made in USA
Mid Atlantic Water Trust Logos
Feature Our System Others
Carbon Media Centaur Catalytic Carbon (Premium) Standard Coconut Shell Carbon
Media Capacity 1.5 Cubic Feet 0.5 to 1.0 Cubic Feet
Control Valve Fleck 2510SXT (Digital, Programmable) Basic Timer Valve
Backwash Automatic, Fully Programmable Manual or None
Service Flow Rate Up to 10 GPM 5 to 7 GPM
Tank Technology Vortech Gravel-Free Gravel Bed Required
Expert Support 7-Day Phone, Text & Email Limited or None
Warranty 5-Year Valve + 10-Year Tank 1-Year Limited
Carbon Media
✅ Us Centaur Catalytic Carbon (Premium)
❌ Them Standard Coconut Shell Carbon
Media Capacity
✅ Us 1.5 Cubic Feet
❌ Them 0.5 to 1.0 Cubic Feet
Control Valve
✅ Us Fleck 2510SXT (Digital, Programmable)
❌ Them Basic Timer Valve
Backwash
✅ Us Automatic, Fully Programmable
❌ Them Manual or None
Service Flow Rate
✅ Us Up to 10 GPM
❌ Them 5 to 7 GPM
Tank Technology
✅ Us Vortech Gravel-Free
❌ Them Gravel Bed Required
Expert Support
✅ Us 7-Day Phone, Text & Email
❌ Them Limited or None
Warranty
✅ Us 5-Year Valve + 10-Year Tank
❌ Them 1-Year Limited
Aidan

Free Lifetime Tech Support

Every system we sell comes with free technical support for life. Need help with installation? Questions about backwash settings or carbon replacement? Call, text, or email anytime.

📞 Call Us 800-460-5810
✉️ Email Support support@midatlanticwater.net
🕒 Live Hours 7 days a week

Frequently Asked Questions

Hydrogen sulfide (rotten egg smell), chlorine, chloramines, PFAS, VOCs, and general taste/odor issues. Centaur catalytic carbon doesn't just trap contaminants like standard carbon. It catalytically breaks them down on the surface of the pores. That's why it handles chloramines and H2S that regular activated carbon can't touch.

The Fleck 2510SXT reverses the water flow through the carbon bed on a programmable schedule (typically every 3 to 7 days). This flushes out trapped sediment, loosens compacted media, and redistributes the carbon evenly. The result is longer media life, more consistent filtration, and less chance of channeling compared to non-backwashing systems.

Yes to both. The Fleck 2510SXT needs a standard 110V outlet to power the digital valve, and a 1/2" drain line to a floor drain or standpipe for the backwash discharge. If you don't have a nearby drain or outlet, consider our non-backwashing carbon filter instead, which needs neither.

3 to 5 years under normal use. Because the automatic backwash cycle keeps the media bed clean and prevents channeling, you typically get longer media life than with a non-backwashing system. When it's time to replace, order replacement Centaur carbon from us. If you need more capacity, the 2.5 cubic foot version lasts even longer.

Yes. The installation requires basic plumbing plus running a drain line and plugging in the power transformer. Most homeowners finish in 2 to 3 hours. We provide free phone support if you need help with the plumbing connections or programming the Fleck valve. Call or text 800-460-5810.

Backwashing is better for well water with sediment, higher contaminant loads, or situations where you want the system to self-clean. Non-backwashing is simpler (no drain, no electricity) and works great for city water or clean well water. Not sure which? Call Aidan at 800-460-5810 with your water test results.

Centaur is made by Calgon Carbon from bituminous coal using a patented catalytic process. Standard coconut shell carbon only works through adsorption, trapping contaminants on its surface. Centaur has catalytic properties that actively decompose hydrogen sulfide and chloramines through chemical reactions. It's the same grade of carbon used in municipal water treatment plants.

Same valve and media, different tank size. The 1.5 cubic foot model uses a 10x54 tank and handles up to 10 GPM, sized for 1 to 3 bathroom homes. The 2.5 cubic foot model uses a 13x54 tank with higher flow capacity for larger homes. The 2.5 also has a longer media lifespan because the extra carbon provides more contact time. If you're not sure which size, call Aidan at 800-460-5810.

Fleck 2510SXT 1.5 Cubic Foot Whole House Carbon Filter
Fleck 2510SXT 1.5 Cubi... $1,895.00

Why Professional-Grade Costs More (And Why It's Worth It)

Same components as a $3,500 professional install. Fraction of the price.

What You Get With Budget Carbon Filters

Standard carbon filters use cheap coconut shell or wood-based carbon with basic timer valves. They handle chlorine, but they can't break down chloramines or hydrogen sulfide. The catalytic reaction isn't there. With less media and a cheaper valve, you get channeling within a year, reduced flow, and media that needs replacing every 1 to 2 years.

Most budget filters ship with no support. When the rotten egg smell comes back, you're on your own.

The Real Cost Comparison

Local Water Treatment Company
$2,500 - $4,000
  • Lifespan: Fails in 3-4 years
  • Result: Frequent repairs, poor water quality, leaks
  • Support: None
Installed, same components
Best Long-Term Value
Our System (DIY Install)
$1,895
  • Lifespan: Lasts 15+ years
  • Result: Done right the first time, peace of mind
  • Support: Lifetime USA Support
Free shipping, same parts

A local water treatment company will charge $2,500 to $4,000 for a similar backwashing carbon filter system, installed. Our system uses the same professional-grade components for $1,895 with free shipping. The install is straightforward enough that most homeowners handle it themselves in 2 to 3 hours.

What Makes This System Different

Centaur catalytic carbon is made by Calgon Carbon using a patented process. It's the same grade used in municipal water treatment plants. It doesn't just trap contaminants through adsorption. It catalytically breaks down hydrogen sulfide and chloramines on contact. That's the difference.

The Fleck 2510SXT is one of the most trusted digital valves in the industry. The automatic backwash cycle keeps the carbon bed clean and extends media life. And you get 7-day-a-week support from someone who actually installs these systems.

Contact Us
800-460-5810

We're here to help.

1-Year Risk-Free Guarantee

Backed by 29+ Years of Real-World Experience

If this carbon filter system fails to improve your water quality within 30 days of installation, contact us and we'll work with you to resolve it. Troubleshooting, component replacement, or full refund. No shipping a heavy wet tank back. No restocking fees. No runaround.

10,000+ Systems Installed
455+ Verified Reviews
29+ Success Rate

After 29 years of installing and selling whole-house carbon filtration systems, we know what works and what doesn't. Every component in this system was chosen because it performs reliably in real homes, not because it's the cheapest option on a price sheet.

The Industry "Return Policy" Trap +

Most online water treatment retailers have a 'return policy' that requires you to ship the entire system back at your expense. That means draining a tank full of wet carbon media, packing it, and paying $150 to $200 in shipping. Then they hit you with a 15-25% restocking fee. It's designed to make returns impractical.

How Our Real Guarantee Works
1
It Doesn't Fix Your Water

If the system fails to remove the chlorine, hydrogen sulfide, or taste/odor issues it's designed to eliminate, that's on us.

2
You Call Us, We Fix It

We troubleshoot with you. Water test results, installation photos, flow rates. Most issues are resolved with a quick adjustment.

Full Refund, No Hassle

If we can't resolve the issue, you get a full refund. We handle the logistics. You don't ship anything back. That's the difference between a real guarantee and a return policy.

Aidan

I designed this system with the same components I recommend to every homeowner who calls. Centaur catalytic carbon, Vortech tank, Fleck 2510SXT valve. Professional-grade equipment at a fraction of the installed price.
