Fleck 5600SXT 48,000 Grain Electronic Demand Deluxe Water Softener
Fleck 5600SXT 48,000 Grain Electronic Demand Deluxe Water Softener
Watch before you buy
23 videos from our YouTube channel, which has 1.8 million views
I'm the guy in the videos. Text or call me and I'll help you figure it out. No bots, no call center.
Text me from your phone
Scan this with your phone's camera
It opens a text message to me with your question already started. Just hit send.
Or text 443-277-2204
What homeowners are saying

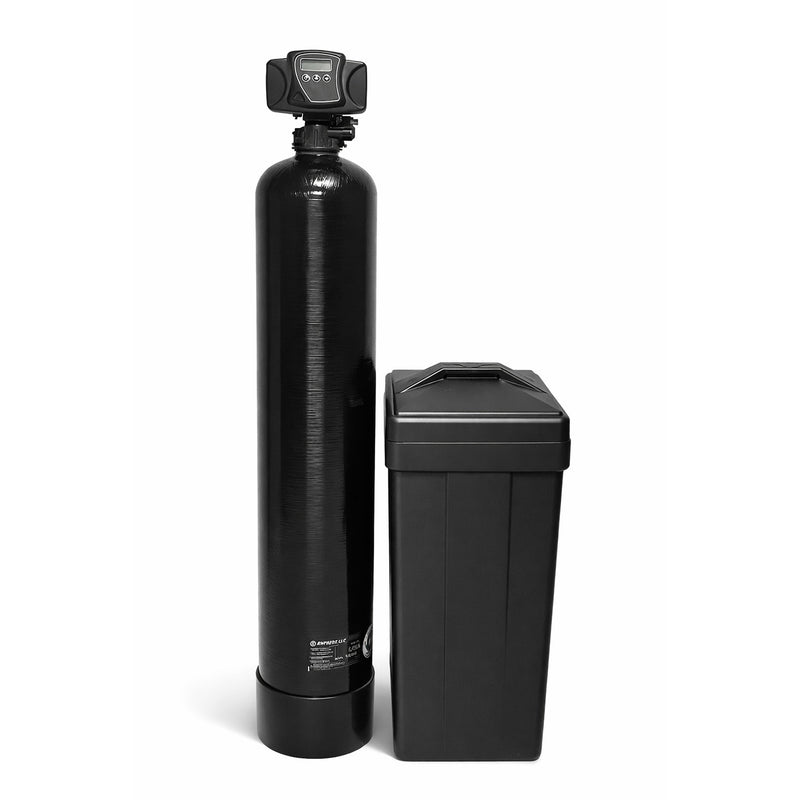

Complete 48,000 Grain Water Softener System
- ✓ Fleck 5600SXT digital control valve: electronic metered (demand) valve with a backlit LCD; your settings are saved through power outages
- ✓ Vortech mineral tank (10" x 54"): ships empty
- ✓ 1.5 cubic feet of 10% crosslink softener resin: in separate bags, loaded at install; a tougher grade than the standard 8%
- ✓ 1" stainless steel bypass valve: pre-installed on the control valve
- ✓ Brine (salt) tank with safety float: helps prevent overflow
- ✓ Fill funnel for loading the resin
- ✓ Free shipping to the lower 48 states
What ships: the mineral tank, the control valve with the bypass valve pre-installed, the brine tank, and the softener resin in separate bags. Resin is loaded into the tank at install. Drain tubing, pipe fittings and salt are not included. We recommend installation by a licensed plumber; Aidan supports your plumber by phone at 800-460-5810. For homes with acidic water (pH below 7), add an acid neutralizer before the softener to protect the plumbing.
System Overview
| Grain Capacity | 48,000 grains (about 45,000 at full salt, 36,000 at the salt-saving setting) |
|---|---|
| Resin Volume | 1.5 cubic feet of 10% crosslink resin |
| Household Size | 1 to 4 people up to about 15 grains; 1 or 2 people up to about 30 grains |
| Control Valve | Fleck 5600SXT (electronic demand) |
| Brine Tank | Included, with safety float (5-year warranty) |
| Service Flow Rate | 12 GPM |
| Connections | 1" threaded, on the stainless bypass (your plumber supplies the adapters) |
| Drain | 1/2" drain tubing (not included) |
| Salt per Regeneration | About 7 lb |
| Water per Regeneration | About 25 to 50 gallons |
| Approximate Size | 34" W x 63" H x 19" D, about 124 lb |
Vortech Mineral Tank
| Dimensions | 10" x 54" (10" diameter) |
|---|---|
| Design | Vortech tank (no gravel bed) |
| Warranty | 10-year manufacturer warranty |
Fleck 5600SXT Control Valve
| Regeneration | Electronic demand (meter-initiated) |
|---|---|
| Display | Backlit LCD |
| Power Backup | Settings saved in memory; clock keeps time at least 8 hours |
| Programming | Time of day, hardness, capacity, regeneration time, day override (set to 14 days) |
| Regeneration Time | About an hour and a half, 2 AM by default |
| Bypass | 1" stainless steel (included, pre-installed) |
| Warranty | 5-year Pentair warranty |
Contaminants Removed
| Hardness (Calcium/Magnesium) | Full removal |
|---|---|
| Iron (dissolved/clear water) | Up to about 1 PPM (above that, an iron filter first) |
⚡
Bypass pre-installed. Resin ships bagged, loaded at install. We recommend having a plumber install it, typically 2 to 3 hours; the part that takes planning is the 1/2" drain line, with an air gap. Aidan supports your plumber by phone at 800-460-5810. If you'd rather do it yourself, text Aidan at 443-277-2204 with any questions.
Installation Steps (for your plumber)
- Shut off the main water supply and relieve pressure at a nearby faucet
- Position the softener near a floor drain or utility sink for the drain line (needed for regeneration backwash)
- Connect the inlet and outlet to your main water line using 1" connections; water direction is marked on the valve head
- Run 1/2" flexible drain tubing from the valve to a floor drain, utility sink or standpipe, within about 20 feet, with an air gap (your plumber sets the routing)
- Add a couple of bags of plain pellet softener salt to the brine tank
- Open the bypass valve slowly to fill the tank, then switch to service position
- Program the 5600SXT valve: time of day, water hardness and capacity (Aidan gives your plumber the numbers)
Recommended System Order
Well / City Supply
→
Pressure Tank
→
Sediment Filter
→
Acid Neutralizer
→
Water Softener (this unit)
→
House
Need help? Call 800-460-5810 or text Aidan at 443-277-2204 -- available 7 days a week. Aidan supports your plumber through the install and walks you or your plumber through programming, step by step.
✨
Low maintenance: the 5600SXT handles regeneration automatically. Just keep salt in the brine tank and the system takes care of itself.
Maintenance Schedule
- Monthly Check salt level. Keep a couple of bags of plain pellet salt in the brine tank, with the salt level always higher than the water level. In Aidan's own 3-person home that is about one 40 lb bag every 30 to 45 days, at about $8 to $10 a bag. Avoid rock salt: it leaves a residue in the tank.
- When Needed Replace the softener resin. How long it lasts depends on your water: in Aidan's service work, 10% crosslink resin on water protected from iron and chlorine has lasted 30 to 40 years, while iron and chlorine shorten it. Signs: hard water returning, increased salt usage, or resin beads appearing in water. Use the included fill funnel to add fresh resin.
- Annually Clean the brine tank. Once a year, let the salt run low and clean the tank to remove any salt bridges or mushing that can impair regeneration.
- As Needed Check the venturi and injector. If regeneration seems sluggish or the system isn't drawing brine, the venturi assembly may need cleaning. Takes 5 minutes with no tools.
Replacement Parts & Media
- 📦 10% Crosslink Softener Resin: 1.0 Cubic Foot (sold by the cubic foot: the 32,000 grain holds 1.0, the 48,000 1.5, the 64,000 2.0 and the 80,000 2.5)
- 📦 Fleck 5600SXT Replacement Valve Head
Pro tip: Always use 10% crosslink resin for replacement: standard 8% breaks down faster, especially if you have any chlorine in your water. Questions about maintenance? Call 800-460-5810 or text Aidan at 443-277-2204.
- 📘Water Softeners: The Complete Guide→
- 🏆Best Water Softener for Well Water→
- 📐What Size Water Softener Do I Need?→
- ⚙️Fleck 5600SXT Review: Sizing and Honest Cons→
- 🛠️Fleck 5600SXT Programming and Setup Guide→
- 💧Do You Need a Water Softener for Well Water?→
- 🔗Acid Neutralizer and Water Softener: Do You Need Both?→
Why Choose the Fleck 5600SXT 48,000 Grain Water Softener?
Hard Water Treatment Backed by 32 Years in the Business
The Fleck 5600SXT 48,000 grain water softener eliminates hard water problems: calcium buildup on fixtures, dry skin and hair, soap that won't lather, and light staining from small amounts of dissolved iron. It uses electronic demand regeneration to track your actual water usage and only regenerate when needed, saving salt and water compared to timer-based systems.
This system includes 1.5 cubic feet of 10% crosslink softener resin, a tougher grade than the standard 8% resin most softeners use, and better on chlorinated city water. It sits in a 10 x 54 inch mineral tank, a Vortech tank with no gravel bed. At 48,000 grains, it's sized for 1 to 4 people on water up to about 15 grains per gallon, or 1 or 2 people up to about 30.
The Fleck 5600SXT is one of the most widely used residential softener valves, with parts that are easy to find and technicians who know how to service it. The large backlit LCD shows remaining soft water capacity, regeneration status, and time of day. Your settings are saved through power outages.
✔
48,000 Grain Capacity
✔
Fleck 5600SXT Valve
✔
10% Crosslink Resin
✔
10 x 54 Vortech Tank
✔
Electronic Demand
✔
Stainless Bypass Included
| Feature | Our System | Others |
|---|---|---|
| Control Valve | ✔ Fleck 5600SXT (Pentair) | Generic / No-Name Valve |
| Resin Quality | ✔ 10% Crosslink (Chlorine-Resistant) | Standard 8% or Unknown Grade |
| Regeneration | ✔ Electronic Demand (Water-Use Based) | Timer-Based (Wastes Salt & Water) |
| Bypass Valve | ✔ 1" Stainless Steel Included | Plastic or Not Included |
| Power Backup | ✔ Settings Saved in Outages | Often None: Settings Lost |
| Warranty | ✔ 5-Year Valve + 10-Year Tank | 1-Year Limited |
| Expert Support | ✔ 7-Day Phone, Text & Email | Limited or None |
| Salt Tank | ✔ Safety Float / Auto Shutoff | Basic Tank (Risk of Overflow) |
Control Valve
✅ Us
Fleck 5600SXT (Pentair)
❌ Them
Generic / No-Name Valve
Resin Quality
✅ Us
10% Crosslink (Chlorine-Resistant)
❌ Them
Standard 8% or Unknown Grade
Regeneration
✅ Us
Electronic Demand (Water-Use Based)
❌ Them
Timer-Based (Wastes Salt & Water)
Bypass Valve
✅ Us
1" Stainless Steel Included
❌ Them
Plastic or Not Included
Power Backup
✅ Us
Settings Saved in Outages
❌ Them
Often None: Settings Lost
Warranty
✅ Us
5-Year Valve + 10-Year Tank
❌ Them
1-Year Limited
Expert Support
✅ Us
7-Day Phone, Text & Email
❌ Them
Limited or None
Salt Tank
✅ Us
Safety Float / Auto Shutoff
❌ Them
Basic Tank (Risk of Overflow)
