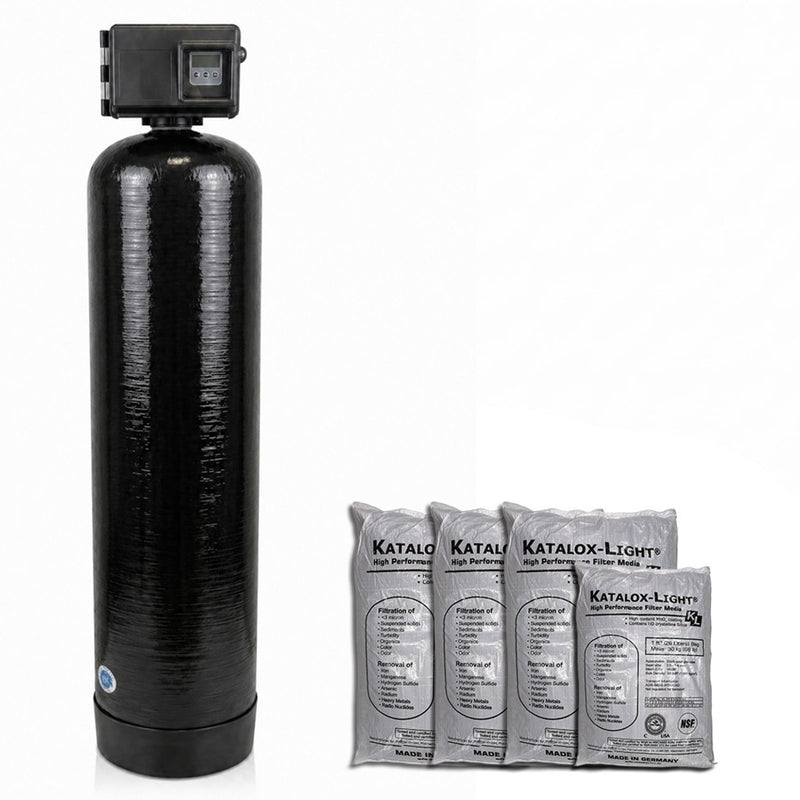

Fleck 2510AIO 3.5 Cubic Foot Advanced Iron Filter (Katalox-Light™) (AIO™ Air Injection)

Name: Fleck 2510AIO 3.5 Cubic Foot Advanced Iron Filter (Katalox-Light™) (AIO™ Air Injection)
Brand: midatlanticwater.net
SKU: AIO-14-KATALOX (3.5 cubic foot vortech tank) | 250 FUNNEL
Price: 2895.0 USD
Availability: InStock
Rating: 5 (1 reviews)

Removes up to 30 ppm iron, 15 ppm manganese, and 10 ppm sulfur. Handles up to 20 gpm before household flow may be reduced. Requires at least 12 gpm for backwash. No chemicals added. No yearly maintenance.

Watch This Before Buying Meet Aidan, your water treatment expert

Fleck 2510AIO 3.5 Cubic Foot Advanced Iron Filter (Katalox-Light™) (AIO™ Air Injection)

Iron Filters for Well Water: The Complete Guide (32 Years of Experience)

★★★★★ 21 Verified Reviews

Trusted in 500+ Homes

🇺🇸 Made in USA

Fleck 2510AIO 3.5 Cubic Foot Advanced Iron Filter (Katalox-Light™) (AIO™ Air Injection)

Watch This Before Buying Meet Aidan, your water treatment expert

Free Shipping Included

Arrives ... to

Tank Size

1.0 cu ft $1,895.00 1.5 cu ft $1,995.00 2.0 cu ft $2,095.00 Most Popular 2.5 cu ft $2,195.00 3.5 cu ft $2,895.00

Not sure which size? Call Aidan at 800-460-5810

In Stock — Ships from Ohio warehouse by

Not sure which iron filter size you need? I'm the guy in the videos. If you want to make sure you get the right system for your home, give me a call. Text me your water test results and I'll tell you exactly what you need.

Call Call Text Text Chat Email Email

✓ Complete USA-made System
✓ 3.5 cu ft Vortech™ Media Tank
✓ Fleck 2510AIO Control Valve
✓ 3.5 cu ft Katalox-Light™ Media
✓ 1" Stainless Steel Bypass Valve
✓ Fill Funnel Included
✓ Air Injection for Enhanced Removal
✓ Removes Iron, Sulfur & Manganese

🛠️ DIY Installation

Installing the system yourself? You will need standard plumbing supplies such as PVC, PEX, SharkBite fittings, pipe, a nearby drain connection, and a standard 120V outlet for the control valve. The system connects where the main water line enters the home.

Estimated Cost $150 - $300 Parts & Supplies Only

👨‍🔧 Hire a Plumber

Prefer a hands-off approach? A local licensed plumber can install the system for you and handle the required plumbing connections, drain hookup, and startup.

Estimated Cost $500 - $1,000 Professional Labor & Parts

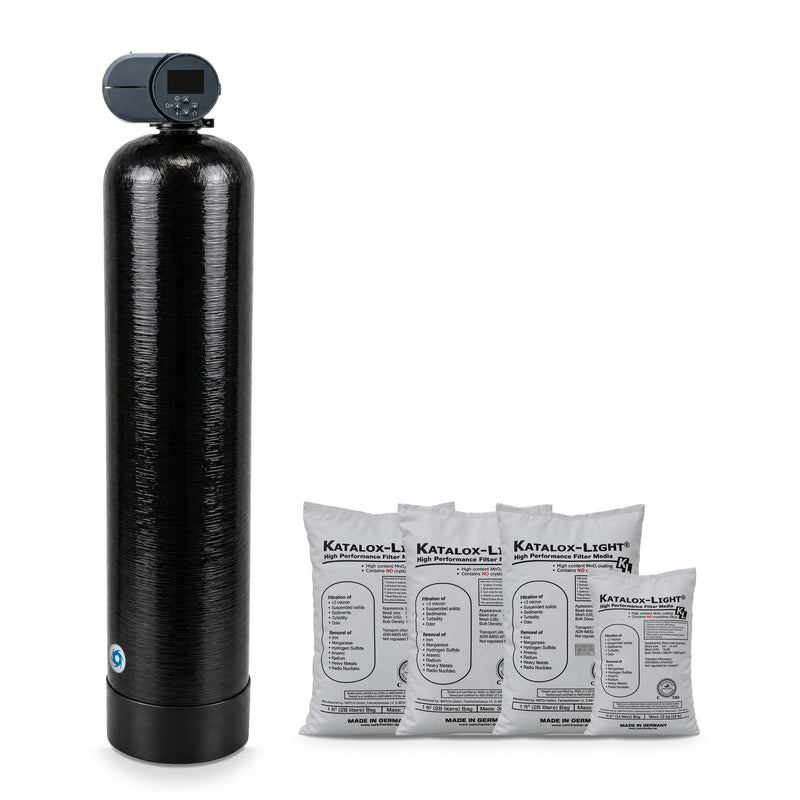

Note on the 3.5 cu ft system: This is a larger tank (14" x 65") so plan your installation space accordingly. The tank arrives empty, so it is manageable to carry before filling. Once installed, add the included Katalox-Light™ media in place using the fill funnel. Final hookup requires a drain line and power connection for the Fleck control valve.

System Model	Fleck 2510AIO 3.5 cu ft Iron Filter (Katalox-Light™)
Working Flow Rate	20 GPM - the maximum flow the tank can handle during normal use. Higher flow rate = less pressure drop in your home.
Backwash Flow Rate Requirement	12 GPM minimum - the flow your well pump must deliver to properly clean the media during the automatic backwash cycle.
Capacity	5+ Baths (5+ People)
Contaminant Removal	Up to 30 ppm Iron • 10 ppm Sulfur • 15 ppm Manganese
Dimensions	14" Diameter Tank × 73" H Installed
Connections	1" Female Threaded Inlet/Outlet with Stainless Steel Bypass
Media Included	3.5 cu ft Katalox-Light™ Advanced Filter Media
Filtration Level	Down to 3 Microns (Sediment / Particulates)
Maintenance	Automatic Backwash • Media Life ~8-10 Years
Requirements	120V Power Outlet • Drain Line Connection
Operating pH Range	5.6 - 10
Warranty	10 Yr Tank / 5 Yr Fleck Control Valve

This system uses air injection and Katalox-Light™ filtration media to remove iron, sulfur, and manganese without chemicals.

Air Injection

The Fleck 2510AIO valve creates and maintains a pocket of air at the top of the tank. As well water enters the system, it passes through this air chamber first.

Contaminants Oxidize

Contact with the air causes dissolved iron, sulfur (rotten egg odor), and manganese to oxidize. This converts them from dissolved minerals into solid particles that can be filtered out.

Katalox-Light Filtration

The oxidized particles are captured by 2.5 cubic feet of Katalox-Light™ media, leaving your water cleaner, clearer, and odor-free.

Self-cleaning system: The Vortech tank design lifts and circulates the media during the automatic backwash cycle, flushing trapped contaminants out of the system. This keeps the media clean and working efficiently without chemicals. Katalox-Light™ media typically lasts 6–10 years depending on water usage.

Vortech® Technology uses a patented internal distributor system to maximize media contact, reduce channeling, and deliver consistent treatment across the entire tank.

The result is higher efficiency, longer media life, and reliable performance without unnecessary complexity or wasted capacity. Built for real-world conditions and proven across thousands of installs.

Vortech internal distributor system diagram

Certified Components

Built with NSF/ANSI 61 certified components and proven Vortech™ technology.

Made in USA

Complete system proudly made in the USA and ready to ship.

5-Year Warranty

Backed by a 5-year warranty on the Fleck 2510AIO control valve.

10-Year Warranty

Includes a 10-year warranty on the structural Vortech™ media tank.

Tech Support

Call or Text 443-277-2204
7 Days/Week • 8am–5pm EST

Order Processing & Prep

Orders are verified and sent to our Ohio facility. Your system is picked, palletized, and shrink-wrapped in secure, damage-resistant packaging.

Freight Shipment

In stock and typically ships within 2–4 business days. We use heavy freight carriers (usually RNL). You will receive a tracking number via email.

Transit Time

Free shipping to the lower 48 states.
• 1–2 business days (East Coast/Midwest)
• 4–5 business days (West Coast)

Liftgate Delivery

Due to weight (~400 lbs), delivery is via liftgate truck to your driveway or curb.

Why isn't this 1-day shipping like Amazon?

Unlike a standard Amazon package, this package weighs roughly 400 lbs and gets delivered on a pallet. It requires specialized pallet handling, tractor-trailers, and liftgates to ensure it arrives safely. We prioritize damage-free delivery over speed.

Video Guides

Aidan has 32 years of industry experience. has 32 years of industry experience.

⚙️ Product Overview

🆚 Iron Filter vs Water Softener

📦 How does it ship?

Can a Water Softener Remove Iron? (The Truth)

The Large-Home Iron Filter for High Flow Demand

500+ satisfied homeowners. NSF tested & certified. Money-back guarantee.

The 3.5 cubic foot Fleck 2510AIO iron filter is the largest system in our AIO iron filter lineup, using the same Fleck 2510AIO control valve, air injection oxidation, and Katalox-Light media as our smaller systems in a 14"x65" Vortech tank. Aidan recommends this size for large homes with 5+ bathrooms or high simultaneous water demand. Iron filter sizing depends on your well pump flow rate and household demand. Most residential customers find the 2.5 cubic foot system is the sweet spot. The 3.5 cu ft is for homes that need extra capacity. Not sure which size? Call Aidan at 800-460-5810 with your water test results and he will tell you exactly what you need.

✔ Removes Iron, Sulfur & Manganese

✔ No Chemicals

✔ Low Maintenance

Feature	Our System	Others
Media Capacity	✔ 2.5 Cubic Feet (High Capacity)	1.0 – 1.5 Cubic Feet
Iron Removal	✔ Up to 30 ppm Iron	Often 5–10 ppm
Sulfur Removal	✔ Up to 10 ppm Hydrogen Sulfide	Limited or requires chemicals
Manganese Removal	✔ Up to 15 ppm Manganese	Often requires additional treatment
Filtration Media	✔ Katalox-Light™ Advanced Media	Sand, Birm, Greensand
Oxidation Method	✔ Air Injection (AIO System)	Chemical injection or weaker oxidation
Maintenance	✔ Automatic Backwashing / No Chemicals	Chemicals or frequent service
Media Lifespan	✔ 8–10 Year Media Life	3–5 Years Typical
Filtration Level	✔ Filters Down to 3 Microns	Less effective sediment removal
Control Valve	✔ Fleck 2510AIO Digital Valve	Generic or proprietary valves
Tank Technology	✔ Vortech® Distributor Plate	Standard gravel bed tanks
Warranty	✔ 10 Years Tank / 5 Years Valve	1-3 Years Limited
Tech Support	✔ Lifetime Expert Video/Phone	Limited or No Support

Media Capacity

✅ Us 2.5 Cubic Feet (High Capacity)

❌ Them 1.0 – 1.5 Cubic Feet

Iron Removal

✅ Us Up to 30 ppm Iron

❌ Them Often 5–10 ppm

Sulfur Removal

✅ Us Up to 10 ppm Hydrogen Sulfide

❌ Them Limited or requires chemicals

Manganese Removal

✅ Us Up to 15 ppm Manganese

❌ Them Often requires additional treatment

Filtration Media

✅ Us Katalox-Light™ Advanced Media

❌ Them Sand, Birm, Greensand

Oxidation Method

✅ Us Air Injection (AIO System)

❌ Them Chemical injection or weaker oxidation

Maintenance

✅ Us Automatic Backwashing / No Chemicals

❌ Them Chemicals or frequent service

Media Lifespan

✅ Us 8–10 Year Media Life

❌ Them 3–5 Years Typical

Filtration Level

✅ Us Filters Down to 3 Microns

❌ Them Less effective sediment removal

Control Valve

✅ Us Fleck 2510AIO Digital Valve

❌ Them Generic or proprietary valves

Tank Technology

✅ Us Vortech® Distributor Plate

❌ Them Standard gravel bed tanks

Warranty

✅ Us 10 Years Tank / 5 Years Valve

❌ Them 1-3 Years Limited

Tech Support

✅ Us Lifetime Expert Video/Phone

❌ Them Limited or No Support

✔ Lifetime Tech Support

Buy with confidence knowing you aren't alone. Access a certified water specialist who actually designed your system. Available 7 days a week.

📞 Call Us 800-460-5810

✉️ Email Support support@midatlanticwater.net

🕒 Live Hours 7 Days/Week, 8AM-5PM EST

Frequently Asked Questions

Many iron filters online use the same stock photos and product names, which makes them look identical, but the internal components are often very different. Lower-priced systems typically cut costs with thin-walled tanks, reduced or lower-grade media, generic valves, and little to no technical support. Our systems use genuine Fleck valves, full media loads, NSF-certified tanks, and real expert support, which is why they cost more upfront but are built to work reliably for years.

This system removes up to 30 ppm of iron, 10 ppm of sulfur, and 15 ppm of manganese, which covers the vast majority of well water issues. It uses air injection and Katalox-Light media to oxidize and filter contaminants without chemicals. If you're unsure whether it fits your water test, you can call or text our water expert with 30+ years of experience for help selecting the right system.

The 2.5 cubic foot system is ideal for most average to large homes with 3–5 bathrooms. It provides high flow rates and a strong backwash cycle so you won’t lose water pressure while multiple fixtures are running.

No chemicals or yearly maintenance are required. The system automatically backwashes to clean the media. The Katalox-Light media typically lasts 8–10 years depending on water usage before replacement is needed.

Yes. Most homeowners install it in 2–3 hours if they have basic plumbing knowledge. The system connects with 1" threaded fittings, includes a bypass valve, and installs where your water line enters the home.

Iron filters are often installed with other systems depending on your water test. For example:

Acidic water → Acid neutralizer first
Hard water → Water softener after the iron filter
Sediment → Sediment filter before the system

If you're unsure about system order, a quick call with a water expert can confirm the right setup.
