Commercial Iron Filter for Well Water, 4 cu ft (1.5 Inch Plumbing)
Fleck 2815 Valve (316 Stainless) | 4 cu ft Katalox Light | 16x65 Tank | 1.5 Inch
Commercial Iron Filter for Well Water, 4 cu ft (1.5 Inch Plumbing)
Fleck 2815 Valve (316 Stainless) | 4 cu ft Katalox Light | 16x65 Tank | 1.5 Inch
What ships
- ✓16 x 65 inch mineral tank (ships empty)

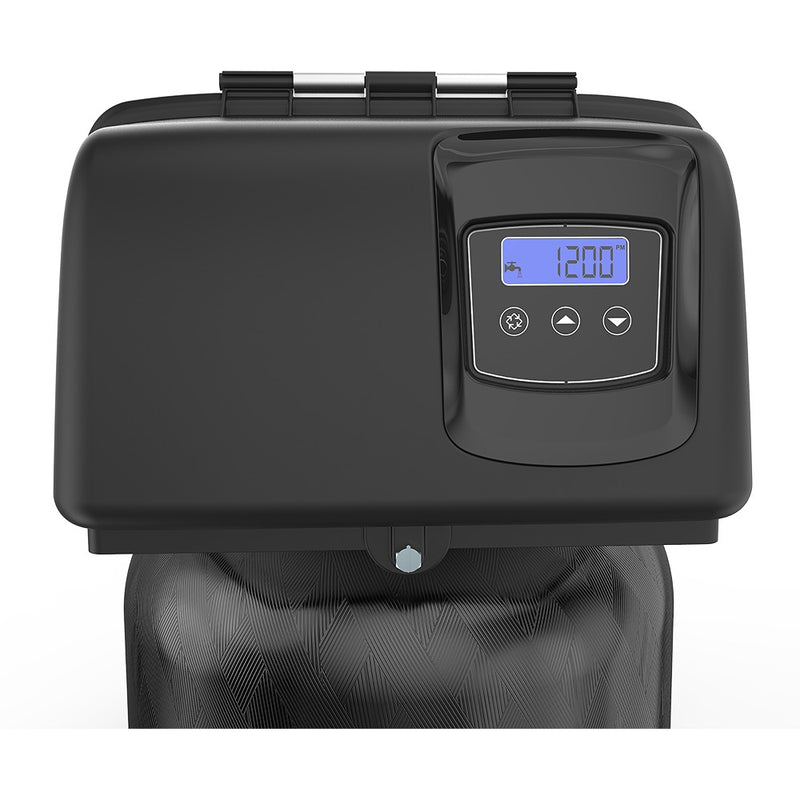

- ✓Fleck 2815 control valve by Pentair: 316 stainless steel body, 1-1/2 inch NPT inlet and outlet, digital controller
- ✓4 cubic feet of Katalox Light media by Watch Water, in separate bags, loaded into the tank at install
- ✓Ships by freight on a pallet, free to the lower 48 states
Not included
- ✕Drain tubing or pipe
- ✕The plumbing fittings and pipe to connect the filter (your plumber supplies them)
Who it is for
Sites with 1.5 inch plumbing: large homes with a 1.5 inch main, farms, irrigation wells, laundromats, restaurants and apartment buildings. Our residential iron filters all have 1 inch connections ("Everything we have is an inch," Aidan says), and this is the step up. In his words: "we go to a commercial size for like apartments and massive houses with inch and a half to two-inch plumbing."
Not the right fit
- ✕A home on 1 inch plumbing. Our residential iron filters use the Fleck 2510 AiQ air-injection valve with 1 inch connections, and they cost less (table below).
- ✕A well that cannot supply 20 to 25 GPM for the backwash. The backwash is how the filter flushes out the iron it has caught. The residential sizes need less: about 5 GPM for the 1.5 cu ft, up to 12 to 15 GPM for the 3.5 cu ft.
- ✕A room without the height. It stands about 75 inches tall with the valve, and the valve comes off the top to load the media.
- ✕Bacteria or hardness. It does not disinfect and it does not soften. A softener goes after the iron filter.
| Our iron filters | Plumbing and valve | Price |
|---|---|---|
| Compact Iron Filter for Well Water, 1.5 cu ft (1-2 Bathrooms) | 1 inch, Fleck 2510 AiQ with air injection | $2,095 |
| Iron Filter for Well Water, 2.0 cu ft (2-3 Bathrooms) | 1 inch, Fleck 2510 AiQ with air injection | $2,295 |
| Whole House Iron Filter for Well Water (2.5 cu ft) | 1 inch, Fleck 2510 AiQ with air injection | $2,495 |
| Large-Home Iron Filter for Well Water, 3.5 cu ft (5+ Bathrooms) | 1 inch, Fleck 2510 AiQ with air injection | $3,295 |
| This commercial filter, 4 cu ft | 1.5 inch, Fleck 2815, no air injection | $5,695 |
How much water it treats
The Fleck 2815 valve can pass 70 GPM, but the Katalox Light bed decides how much water comes out clean. Watch Water designs Katalox Light filters at 8.2 GPM per square foot of bed and allows up to about 12. This tank's 16 inch bed is 1.4 square feet, so it treats about 11 GPM continuous and about 17 GPM at peak. Watch Water's own caution: "At higher flow rate filtration quality might be compromised."
If your steady demand runs higher, text Aidan your numbers. In his words: "Most customers with high demand applications use multiple units."
What your well has to supply
During the backwash, Aidan asks for 20 to 25 GPM from the well. Watch Water's backwash rate for this bed works out to 14 to 17 GPM for 10 to 15 minutes, plus a short rinse. Have your well pump's flow checked before you order.
| Valve | Fleck 2815 by Pentair, 316 stainless steel body |
|---|---|
| Controller | Fleck digital controller (ask Aidan which model ships on current units) |
| Inlet and outlet | 1-1/2 inch NPT |
| Drain connection | 1-1/2 inch NPT on the valve; drain tubing not included |
| Valve flow (valve alone) | 70 GPM continuous at a 15 psi drop (Pentair) |
| Tank | 16 inches across, 65 inches tall (nominal) |
|---|---|
| Height with valve | About 75 inches |
| Media | 4 cubic feet of Katalox Light by Watch Water, in separate bags, loaded at install |
| Media origin | Germany (Watch Water) |
| Treated flow | About 11 GPM continuous, about 17 GPM peak (Watch Water design rates for a 16 inch bed) |
|---|---|
| Backwash supply | 20 to 25 GPM from the well (Aidan); Watch Water's rate for this bed is 14 to 17 GPM |
| Air injection | None; no chemical feed |
| Removes | Iron, manganese, hydrogen sulfide, and sediment down to 3 microns |
| pH | Works best near pH 8. If yours is lower, send Aidan your test before you order. |
| Water pressure | 20 to 125 psi |
| Water temperature | 34 to 150 F |
| Does not | Disinfect or soften water |
| Plumbing | 1.5 inch (our residential iron filters are 1 inch) |
|---|---|
| Installation | Licensed plumber recommended; Aidan supports your plumber by phone |
| Shipping | By freight, free to the lower 48 states |
| Certification | Katalox Light: NSF/ANSI/CAN 61 and NSF/ANSI 372, per Watch Water. Fleck 2815: NSF/ANSI/CAN 61 (material safety) and NSF/ANSI 372, per Pentair |
Licensed plumber recommended
We recommend installation by a licensed plumber; Aidan supports your plumber by phone at 800-460-5810. Aidan tells commercial buyers they will probably want a plumber for a system this size.
What your plumber does
- ✓Connects the 1-1/2 inch NPT inlet and outlet.
- ✓Runs a drain line from the valve's 1-1/2 inch drain connection, sized for the backwash flow (drain tubing is not included).
- ✓Loads the 4 cubic feet of Katalox Light into the empty tank through the top, then puts the valve back on.
Space, pressure and water
| Height with valve | About 75 inches (tank makers list a 16 x 65 tank at about 66 inches, and the valve adds 9 inches) |
|---|---|
| Tank diameter | 16 inches |
| Water pressure | 20 to 125 psi |
| Water temperature | 34 to 150 F |
| Backwash supply | 20 to 25 GPM from the well |
How it works
Water flows down through 4 cubic feet of Katalox Light. The media's manganese dioxide coating turns dissolved iron, manganese and hydrogen sulfide into particles, and the bed filters them out, along with sediment down to 3 microns. When the controller calls for a backwash, the valve reverses the flow and flushes what the bed caught to the drain. This unit has no air injection and no chemical feed. Aidan: "The commercial units don't come with air injection, but it's not necessary." See how an iron filter works.
What it removes, and what it does not
- ✓Iron, manganese and hydrogen sulfide (the rotten egg smell), and sediment down to 3 microns.
- ✓We size this unit from your water test rather than a printed ppm limit: send Aidan your iron, manganese and sulfur results.
- ✓Works best near pH 8. If yours is lower, send Aidan your test before you order.
- ✕It does not disinfect and it does not soften.
No test yet? Start with our well water test kit ($199).
How long the media lasts
It depends on how much water runs through it and how much iron is in it. In homes Aidan sees 6 to 8 years; Watch Water rates Katalox Light for 7 to 10. Write the install date on the tank, and when iron or the smell comes back, it is time for new media. The tank and valve stay.
Certifications and origin
Watch Water states that Katalox Light is certified to NSF/ANSI/CAN 61 for drinking water use and NSF/ANSI 372 for lead-free compliance; it is made in Germany. Pentair states that the Fleck 2815 is tested and certified by the WQA to NSF/ANSI/CAN 61 for material safety and NSF/ANSI 372 for lead-free compliance. These are the parts' certifications; there is no listing for the assembled filter.
Spec sheets and guides
A Commercial Iron Filter for 1.5 Inch Plumbing
Fleck 2815 stainless valve, 16 x 65 tank, 4 cu ft of Katalox Light. No air injection, no chemical feed.
| Feature | This Commercial Filter | Our Residential Iron Filters |
|---|---|---|
| Plumbing | 1.5 inch (Fleck 2815, 316 stainless) | 1 inch (Fleck 2510 AiQ) |
| How it oxidizes iron | Katalox Light bed, no air injection | Air injection plus Katalox Light |
| Media | 4 cu ft Katalox Light | 1.5 to 3.5 cu ft Katalox Light |
| Backwash flow from the well | 20 to 25 GPM | About 5 to 15 GPM, by size |
| Best for | 1.5 inch plumbing: farms, irrigation, businesses, apartments, large homes with a 1.5 inch main | Homes on 1 inch pipes, 1-2 to 5+ bathrooms |
| Price | $5,695 | $2,095 to $3,295 |
✔ Tech Support by Phone
Aidan reviews your water test and supports your plumber by phone, 7 days a week, 8 AM to 5 PM Eastern.
Frequently Asked Questions
30-Day Returns + Manufacturer Warranty
Tell us within 3 days of delivery if the item is damaged, missing or wrong. For shipping damage, you file the carrier claim and we help with it.
Call 800-460-5810 or text Aidan at 443-277-2204 within 30 days of delivery. New, unopened items can be returned with our approval. A 25% restocking fee applies, and you pay the return freight.
Text me your pipe size, your peak flow and your water test before you order, and I'll tell you whether this unit is the right one.
"I had well water with over 20 ppm ferrous and 7 ppm of ferric iron, plus manganese and some sulfur. Local water companies rejected me, said they couldn't help. I purchased two Fleck 2.5 cu. ft. 2510AIO iron filter tanks with Katalox-Light. Problem solved."
"New house, brass fittings on my Pex were all corroding. Tested the water, acidic at 5.5. Found Mid Atlantic Water YouTube videos which were very helpful, ordered the non-back washing 2.5. Easy install, water tests great now."
"Straight forward installation. In, out, and the drain. Ran a back wash cycle then put it online and it works GREAT. Cleaned out the iron and raised the pH to 7.5. Culligan tried to sell me something twice the price."
"Three contractors and two other suppliers reviewed my well report. Quotes ranged from $5,000 to $10,000. Then I found Mid Atlantic. Aidan reviewed the report and recommended a complete system. Same equipment, fraction of the cost, and the support was real."
"Easy, bullet-proof installation. No moving parts. Raised my pH from 6.8 to a perfect 7.6. I had previously installed the same unit in my daughter's water system. Her pH was 5.2. Following Aidan's videos, both installs went smoothly."
"Super easy install. Shouldn't have to service it for approximately 24-36 months based on my water usage. Tank is solid, fittings are clean, no leaks. Exactly what was advertised."
Want a real human to walk you through whether this is right for you?
