Whole House Arsenic Removal System (Non-Backwashing, No Electricity)
Whole House Arsenic Removal System (Non-Backwashing, No Electricity)
Not sure which arsenic system you need?
I'm the guy in the videos. Arsenic treatment is sized from a lab number, not a guess, and the order matters: iron and pH have to be handled before the arsenic stage. Send me your well test and I'll tell you exactly which system fits, or that you don't need one yet.

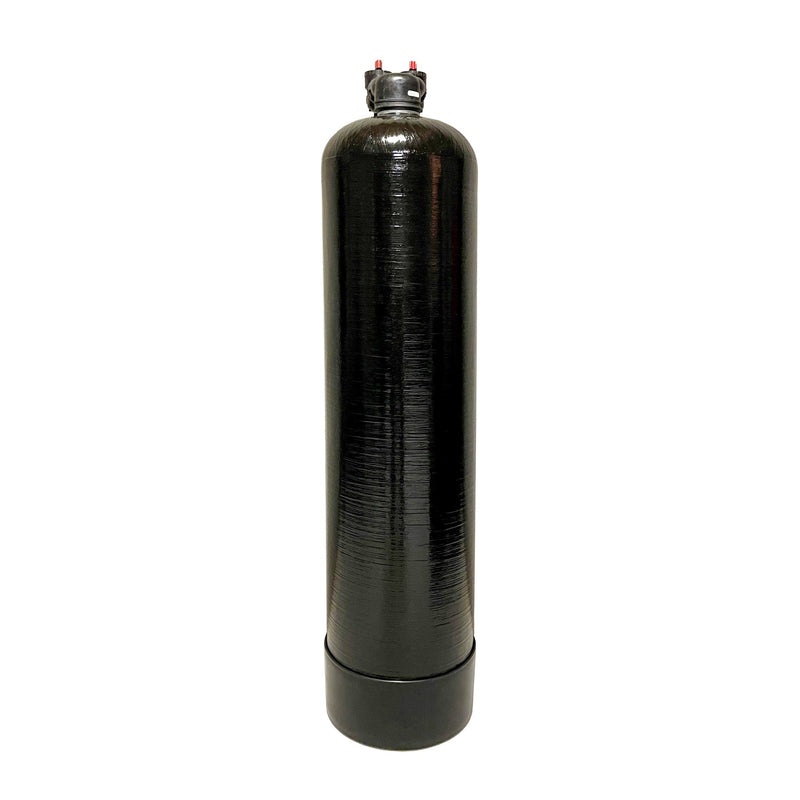

Complete Non-Backwashing Arsenic Removal System
- ✓ 2 cubic feet of arsenic-selective ion exchange resin - WQA Gold Seal certified hybrid resin, shipped boxed and loaded into the tank at install.
- ✓ 12" x 54" black Vortech mineral tank - corrosion resistant, gravel-free design, 10-year structural warranty.
- ✓ Clack C1190 in/out service head - non-backwashing, no electronics, nothing to program, 5-year warranty.
- ✓ Clack 1" stainless steel bypass valve - pre-installed for tool-free service isolation.

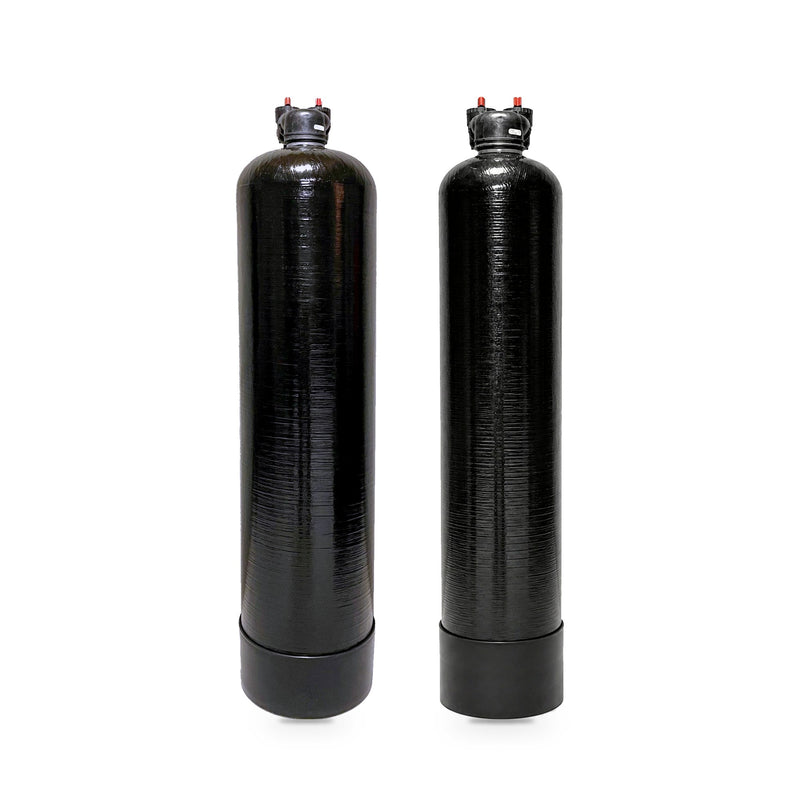

- ✓ 1.5 cu ft carbon tank - a 10" x 54" black Vortech tank with its own Clack C1190 in/out head and a bypass valve, installed right after the arsenic tank.
- ✓ 1.5 cubic feet of Centaur catalytic carbon - Calgon Carbon 12x40, in a 1 cu ft box and a 1/2 cu ft box, loaded into the carbon tank at install.
- ✓ Fill funnel - included.
- ✓ Free shipping to all lower 48 states.
Both tanks ship empty; the resin and the carbon ship boxed and are loaded at install. No salt, no brine tank, no drain line, no electricity. The arsenic tank arrives with its head and bypass mounted. The resin absorbs arsenic permanently and there is nothing to regenerate or flush. The carbon tank after it takes out the fishy smell and taste new arsenic resin can give the water. Drain tubing and plumbing fittings are not included, and no drain is needed.
Recommended add-on: A 20" Big Blue sediment filter installed upstream protects the resin from particulates. Strongly recommended for any well water installation.
Technical Specifications
| Media | 2.0 cu ft WQA Gold Seal certified arsenic-selective hybrid ion exchange resin |
|---|---|
| Mineral tank | 12" x 54" black Vortech, gravel-free distributor, 10-year warranty |
| Control head | Clack C1190 in/out service head, non-backwashing, no electronics, 5-year warranty |
| Carbon tank | 10" x 54" black Vortech with a Clack C1190 in/out head, 1.5 cu ft Centaur 12x40 catalytic carbon (Calgon Carbon), up to about 10 GPM, installed after the arsenic tank |
| Regeneration | None. The resin absorbs arsenic permanently; no salt, no brine tank |
| Service flow | Up to 10 GPM continuous, one size covers most homes |
| Capacity | ~500,000 gallons per cu ft reducing 50 ppb to under 10 ppb; ~1,000,000 gallons total |
| Connections | 1" inlet and outlet on each tank, Clack stainless bypass pre-installed on the arsenic tank |
| Drain | None required. No backwash, no drain line, no brine line |
| Power | None required |
| Arsenic reduction | Below the EPA MCL of 10 ppb under recommended conditions |
| Upstream conditions | pH 6.5-8.0, iron < 0.3 ppm, manganese < 0.05 ppm |
| Media life | 1-5 years depending on arsenic level and water use; verify with annual lab test |
| Media replacement | Rebed with two 1 cu ft boxes of ResinTech ASM-10-HP; tank and head stay in service |
| Carbon life | About 4 to 5 years; replace with 1.5 cu ft of Centaur catalytic carbon in the same tank |
| Certification | WQA Gold Seal certified resin, NSF-certified components, assembled in the USA |
Competing anions note: Sulfate, phosphate, silica, selenium, and vanadium compete with arsenic on ion exchange resin and shorten media life. If your lab report shows elevated levels of any of these, call us with the results before ordering so we can confirm expected media life for your water.
Installation Steps
- Position the arsenic tank after the pressure tank and after any sediment filter, iron filter, acid neutralizer, or softener, before the cold water line branches into the home.
- Plumb the bypass - 1" threaded inlet and outlet on the pre-installed Clack stainless bypass fit standard residential plumbing.
- Plumb the carbon tank right after it - the arsenic tank's outlet feeds the carbon tank's inlet. Load the 1.5 cu ft of carbon through the funnel with the head off, the same way the resin goes into the arsenic tank.
- Open the bypass and flush - run water to a nearby faucet for a few minutes to settle both beds and clear any resin and carbon fines.
- Test the treated water - confirm arsenic below 10 ppb with a certified lab test, then retest annually. Call 800-460-5810 and Aidan reads the results with you.
No drain line, no brine line, no electrical outlet, no programming. We recommend having a plumber install it: about an hour or two per tank, roughly 2 to 4 hours for both. Aidan supports your plumber by phone at 800-460-5810. If you'd rather do it yourself, text Aidan at 443-277-2204 with any questions.
Ongoing Maintenance
- ✓ Test the treated water annually at a certified lab to verify arsenic stays below the EPA limit. Aidan reads the results with you at no charge.
- ✓ No salt, no cartridges, no valve to service. There are no moving parts and no electronics in the treatment path.
- ✓ Replace the carbon about every 4 to 5 years. The old carbon comes out of the second tank and 1.5 cu ft of new Centaur catalytic carbon goes in; the tank and head stay in service.
- ✓ Rebed at end of media life. When treated-water arsenic starts creeping up (typically after 1 to 5 years), swap in two 1 cu ft boxes of ASM-10-HP arsenic-selective resin. The tank, head, and bypass stay in service.
- ✓ Retest the raw water every few years - well chemistry drifts, and treatment decisions should follow it.
Why the annual test matters: the resin absorbs arsenic until it reaches capacity, and water gives you no visible warning. An annual certified lab test is how you know the media is still working and when a rebed is approaching. Even past capacity this resin never releases arsenic back into your water, so a slightly late test is never a dumping emergency.
Related Guides and Resources
- Arsenic Speciation Water Test Kit (certified lab) →
- ASM-10-HP Rebed Resin (1 cu ft box, this system takes 2) →
- 1.5 cu ft Non-Backwashing Carbon Filter (the carbon tank in this system) →
- All Arsenic Filters →
- Whole House Iron Filter (install upstream if iron is above 0.3 ppm) →
- 20" Big Blue Sediment Pre-Filter →
- Well Water Filtration Systems →
The Right Way to Remove Arsenic From Well Water
Arsenic-selective ion exchange resin, then a carbon tank for taste and odor, with no salt, no drain, and no electronics.
Arsenic in well water is a serious health issue. The EPA's maximum contaminant level is just 10 parts per billion, but levels of 50 ppb or higher are common in arsenic-prone geology. This system treats every tap in the house with 2 cubic feet of WQA Gold Seal certified arsenic-selective resin that binds arsenic permanently inside the bead, followed by a 1.5 cubic foot catalytic carbon tank that takes out the fishy smell and taste new arsenic resin can give the water. There is nothing to backwash, no salt to refill, and no valve to program or power: the resin absorbs arsenic until it reaches capacity, an annual lab test tracks media life, and even past capacity the treated water never exceeds the raw water's arsenic level. When the resin is spent after 1 to 5 years, the tank is rebedded and everything else stays in service; the carbon is replaced about every 4 to 5 years.
✔
Non-Backwashing, No Salt
✔
Reduces Arsenic to <10 ppb
✔
Carbon Tank for Taste & Odor
✔
Up to 10 GPM Whole House
✔
No Drain, No Electricity
✔
No Arsenic Dumping at Exhaustion
✔
NSF Certified Components
✔
Made in USA
| Feature | Our System | Others |
|---|---|---|
| Arsenic Media | ✔ WQA Gold Seal arsenic-selective hybrid ion exchange resin | Disposable adsorptive granules (iron oxide / alumina) |
| Exhaustion Safety | ✔ Effluent never exceeds influent, even past capacity | Exhausted media can dump arsenic above source levels |
| Ongoing Cost | ✔ Annual lab test and carbon every 4-5 years; no salt, no power | Media swaps plus salt or electricity on valve models |
| Capacity | ✔ ~1,000,000 gallons (2 cu ft at ~500K gal/cu ft) | Smaller beds with shorter, unpredictable media life |
| Control Head | ✔ Clack C1190 in/out, no electronics, nothing to program | Electronic valve or timer needing power and a drain |
| Install Requirements | ✔ Pressurized water line only; no drain, no outlet | Drain line and 120V outlet typically required |
| Certification | ✔ WQA Gold Seal resin, NSF-certified components | Often uncertified |
| Expert Support | ✔ 7 days a week, 30+ years experience | Limited or none |
| Warranty | ✔ 5-year head / 10-year tank | 1-year limited typical |
Arsenic Media
✅ Us
WQA Gold Seal arsenic-selective hybrid ion exchange resin
❌ Them
Disposable adsorptive granules (iron oxide / alumina)
Exhaustion Safety
✅ Us
Effluent never exceeds influent, even past capacity
❌ Them
Exhausted media can dump arsenic above source levels
Ongoing Cost
✅ Us
Annual lab test and carbon every 4-5 years; no salt, no power
❌ Them
Media swaps plus salt or electricity on valve models
Capacity
✅ Us
~1,000,000 gallons (2 cu ft at ~500K gal/cu ft)
❌ Them
Smaller beds with shorter, unpredictable media life
Control Head
✅ Us
Clack C1190 in/out, no electronics, nothing to program
❌ Them
Electronic valve or timer needing power and a drain
Install Requirements
✅ Us
Pressurized water line only; no drain, no outlet
❌ Them
Drain line and 120V outlet typically required
Certification
✅ Us
WQA Gold Seal resin, NSF-certified components
❌ Them
Often uncertified
Expert Support
✅ Us
7 days a week, 30+ years experience
❌ Them
Limited or none
Warranty
✅ Us
5-year head / 10-year tank
❌ Them
1-year limited typical
✔ Free Tech Support
Buy with us and you have a real water-treatment expert to call whenever you need help. Reading a lab report, retest timing, media life, install questions, whatever comes up, you have my number.
📞 Call Us
800-460-5810
✉️ Email Support
support@midatlanticwater.net
🕒 Live Hours
7 Days/Week, 8AM-5PM EST
