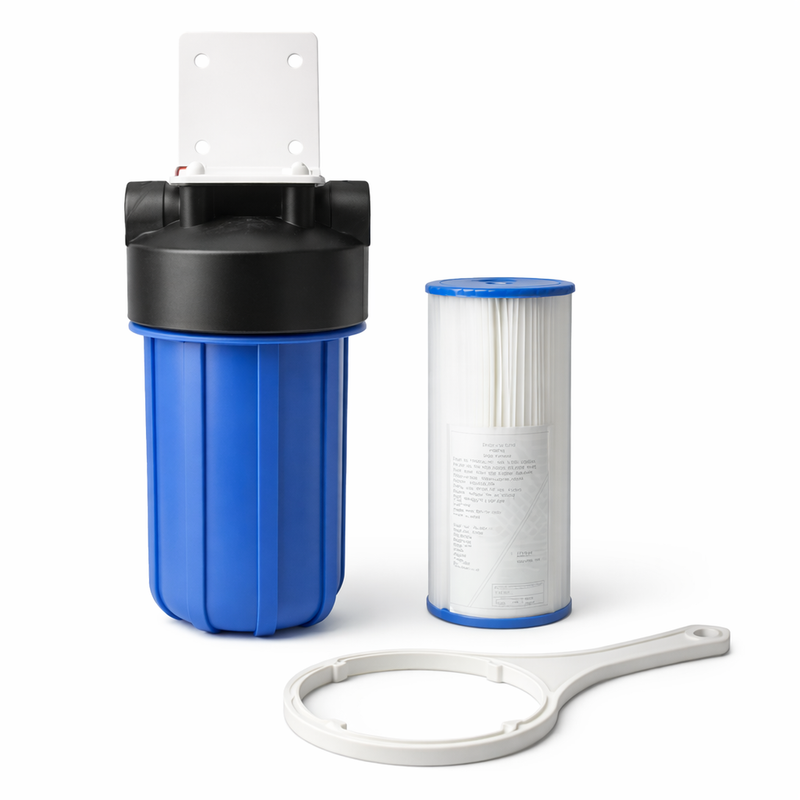

The 10" Big Blue is the right choice for smaller homes (1 to 2 people, 1 to 2 bathrooms) on a well with low to moderate sediment. It costs $30 less than the 20" kit and takes up half the wall space, which makes it ideal for tight utility rooms or basements. The trade-off is more frequent cartridge changes (every 2 to 4 months under heavy use) since the 10" cartridge holds roughly half the sediment of a 20" cartridge. If you have 3+ bathrooms, heavy sediment, or a sprinkler system on the well, step up to the 20" Big Blue kit ($195).

The Pentair Pentek Big Blue housing itself lasts about 10 years under normal use. The 5-micron cartridge inside needs replacing every 2 to 6 months for the 10" version, depending on your water's sediment load. If you notice reduced water pressure, the cartridge is full and needs changing sooner. Heavy-sediment wells may need monthly cartridge changes. In those cases, consider adding a spin-down pre-filter upstream or stepping up to the 20" Big Blue.

The Pentek 150237 housing measures 13.30" tall by 7.45" wide. Plan on at least 6" of clearance below the housing for sump removal during cartridge changes, so the total wall space needed is roughly 20" tall. The wall mounting bracket adds about 2" to the depth. The cartridge inside is the standard 4.5" x 10" Big Blue size.

For the 10" Big Blue with a 5-micron cartridge, plan on changes every 2 to 6 months. The exact interval depends on how much sediment is in your well water. Signs it is time to change: reduced water pressure, visible discoloration when you remove the cartridge, or a pressure gauge reading showing more than a 5 PSI drop across the housing. At $8 to $15 per cartridge, it is the cheapest protection for your downstream treatment equipment.

The included 5-micron cartridge is the most common choice for well water. It catches sand, silt, rust, and fine sediment without restricting flow. If your water has very fine particulates (like clay), you may want a 1-micron cartridge, but it will clog faster. If you have heavy coarse sediment, start with a 20 or 50-micron cartridge and use the 5-micron as a second stage. The housing accepts any standard 4.5" x 10" Big Blue cartridge.

Standard polyspun cartridges are not washable. Once loaded with sediment, they need to be replaced. However, you can buy pleated cartridges for this housing that are washable and reusable. Pleated filters have more surface area and can be rinsed clean with a garden hose. They cost more upfront ($15 to $25 for the 10" size) but last longer between changes. For heavy-sediment wells on a 10" housing, a pleated washable cartridge can be a good upgrade.

After the pressure tank and before everything else. The correct order is: well pump, pressure tank, sediment filter, iron filter, acid neutralizer, water softener, UV system. The sediment filter is always first in the treatment chain because it protects every piece of equipment downstream. Sand and grit will damage valve seals, clog filter media, coat UV quartz sleeves, and shorten the life of every system it reaches.

A clean sediment filter causes minimal pressure drop, typically 1 to 2 PSI on the 10" Big Blue at normal household flow rates. As the cartridge loads with sediment over time, the pressure drop increases. When you notice reduced flow at your faucets, it is time to change the cartridge. Installing shutoff valves on both sides of the filter makes it easy to isolate and change the cartridge quickly. If you constantly run multiple high-flow fixtures (showers + dishwasher + sprinkler), the 20" Big Blue handles those flow rates with less pressure drop.
