Viqua VH200 9 GPM UV Water Filter
Viqua VH200 9 GPM UV Water Filter

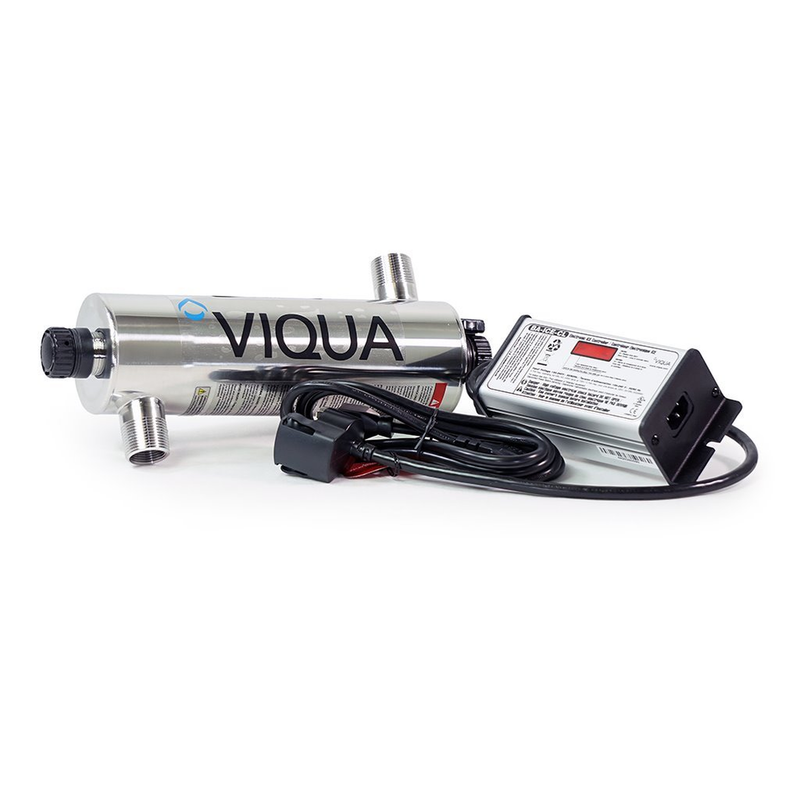

Complete Viqua VH200 System
- ✓ Viqua VH200 UV chamber - 304 stainless steel, 15" x 3.5"
- ✓ High-output UV-C lamp (pre-installed) - 9,000-hour rated life
- ✓ Quartz glass sleeve - protects lamp, easy to clean
- ✓ Electronic ICE controller - digital lamp life countdown + failure alarm
- ✓ Combo inlet/outlet fittings - 3/4" FNPT and 1" MNPT
- ✓ Mounting bracket and hardware
- ✓ Installation guide and owner's manual
Performance
| Flow Rate (30 mJ/cm²) | 9 GPM (34 LPM) |
|---|---|
| Flow Rate (40 mJ/cm² NSF) | 7 GPM (26 LPM) |
| Flow Rate (16 mJ/cm²) | 16 GPM (60 LPM) |
| UV Dose | 40 mJ/cm² NSF 55 Class A |
| Pathogen Kill Rate | 99.99% - bacteria, viruses, and cysts |
| Effective Against | E. coli, coliform, Giardia, Cryptosporidium, Legionella, hepatitis A, norovirus, and more |
Physical
| Chamber Dimensions | 15" x 3.5" (45 cm x 8.9 cm) |
|---|---|
| Controller Dimensions | 7.25" x 3.25" x 2.5" |
| Chamber Material | 304 stainless steel |
| Connections | Combo: 3/4" FNPT / 1" MNPT |
| Shipping Weight | 12 lbs (5.4 kg) |
Electrical
| Voltage | 100-240V (50/60 Hz) - universal input |
|---|---|
| Power Consumption | 35W (less than a light bulb) |
| Annual Electricity Cost | ~$25-$35/year |
Operating Limits
| Max Operating Pressure | 125 PSI (8.62 bar) |
|---|---|
| Water Temperature | 36°F - 104°F (2°C - 40°C) |
| Iron | < 0.3 mg/L (ppm) |
| Hardness | < 7 grains per gallon (120 mg/L) |
| Tannins | < 0.1 mg/L |
| Turbidity | < 1 NTU |
| UV Transmittance | > 75% (ideally above 85%) |
Lamp & Maintenance
| Lamp Life | 9,000 hours (~12 months continuous) |
|---|---|
| Replacement Lamp | S200RL-HO ($100) |
| Replacement Quartz Sleeve | QS-200 ($40-$60, every 2-3 years) |
| Controller Features | Digital lamp life countdown, audible alarm on failure |
Certifications & Manufacturer
| Certification | NSF/ANSI 55 Class A |
|---|---|
| Manufacturer | Viqua (Trojan Technologies) - world's largest residential UV manufacturer |
| Replaces Model | Sterilight S8Q-PA |
Most homeowners install the VH200 themselves in 1-2 hours. The compact size makes it easy to fit in tight spaces. Basic plumbing skills required. No special tools needed.
- 1 Choose location: Mount after all pre-treatment (sediment filter, iron filter) and before the water distributes to the house. Leave 18" clearance below for maintenance.
- 2 Cut into main line: Install shutoff valves on both sides of the UV chamber for easy isolation during maintenance.
- 3 Connect plumbing: Use the combo fittings (3/4" FNPT / 1" MNPT). Use copper fittings at the UV chamber connections - PEX does not work well at these connection points.
- 4 Plug in controller: Connect to a standard 120V GFCI-protected outlet. Power consumption is only 35W. The system must run continuously while the home is in use.
- 5 Turn on and verify: Open water slowly, check for leaks, confirm the controller shows the lamp is active and the countdown timer has started.
UV Lamp Replacement Every 12 months
The only required annual maintenance. Even if the lamp still glows, UV-C output degrades to 60-70% by month 12, not enough for full disinfection. The controller will alert you when it's time. Swap takes about 15 minutes. Replacement lamp: S200RL-HO ($100)
Quartz Sleeve Cleaning During each lamp change
Wipe the quartz sleeve with a soft cloth and white vinegar to remove any mineral film. Inspect for cracks or permanent cloudiness. A clean sleeve is critical for maximum UV transmission.
Quartz Sleeve Replacement Every 2-3 years
Replace the quartz sleeve (QS-200, $40-$60) if it shows cracks, chips, or won't clean clear. Most homeowners get 2-3 years before replacement is needed.
O-Ring Inspection During each lamp change
Check the O-rings at each end of the quartz sleeve. If dried out, cracked, or compressed flat, replace them. A leaking O-ring is the most common (and most preventable) source of drips.
What homeowners are saying
Video Guides
Watch: How to eliminate bacteria from well water has 32 years of industry experience.
Do THIS To Remove Bacteria from Your Well Water
Compact, Proven UV Disinfection for Smaller Homes
NSF 55 Class A certified. Destroys 99.99% of bacteria, viruses, and parasites including Cryptosporidium and Giardia.
| Feature | Our System | Others |
|---|---|---|
| UV Dose | ✔ 40 mJ/cm2 (NSF Class A) | 16 mJ/cm2 (Class B) |
| Flow Rate | ✔ 9 GPM (1-2 Bathrooms) | 4-6 GPM |
| NSF Certification | ✔ NSF 55 Class A Certified | Not Certified |
| UV Intensity Monitor | ✔ Digital Display + Alarm | No Monitoring |
| Chamber Material | ✔ 304 Stainless Steel | Plastic or Thin Steel |
| Lamp Life Tracking | ✔ Digital Countdown Timer | No Display |
| Manufacturer | ✔ Viqua (Trojan Technologies) | Unknown / Generic Brand |
| Connection Size | ✔ Combo 3/4" + 1" MNPT | 3/4" Only |
✔ Free Lifetime Tech Support
Every VH200 comes with free technical support for the life of the system. Call, text, or email anytime. Before, during, or after installation.
Frequently Asked Questions
