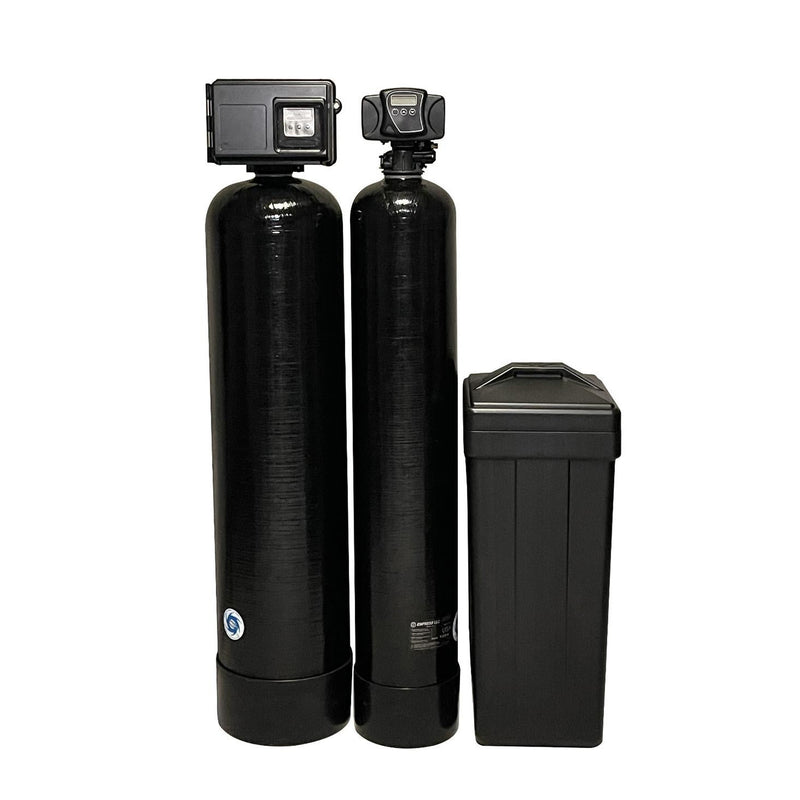

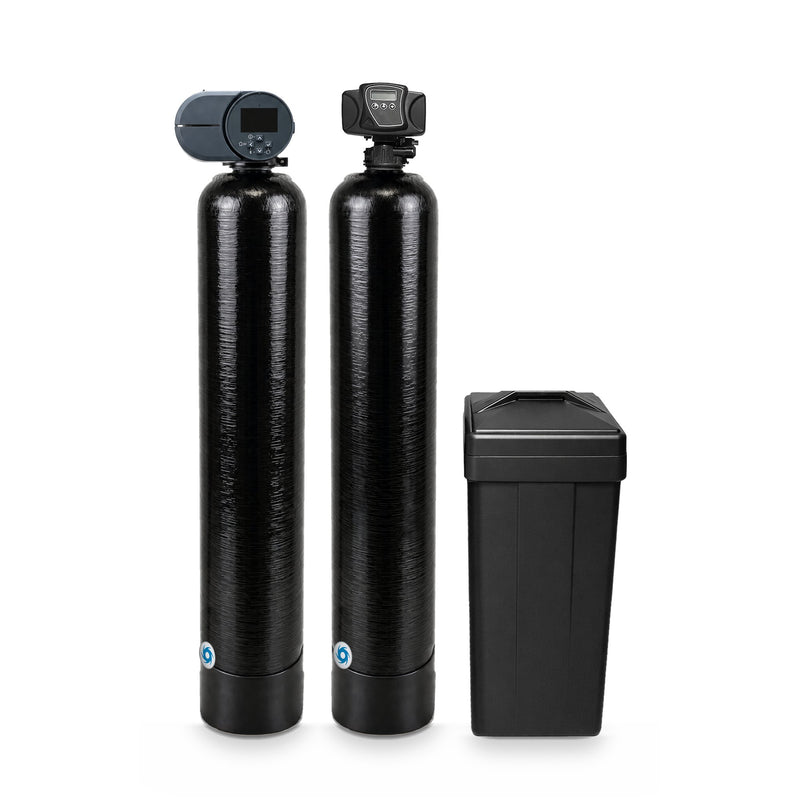

Fleck 2510 AiQ 1.5 Katalox Light Iron Filter & Fleck 5600SXT 48,000 Grain Water Softener

Fleck 2510 AiQ 1.5 Katalox Light Iron Filter & Fleck 5600SXT 48,000 Grain Water Softener

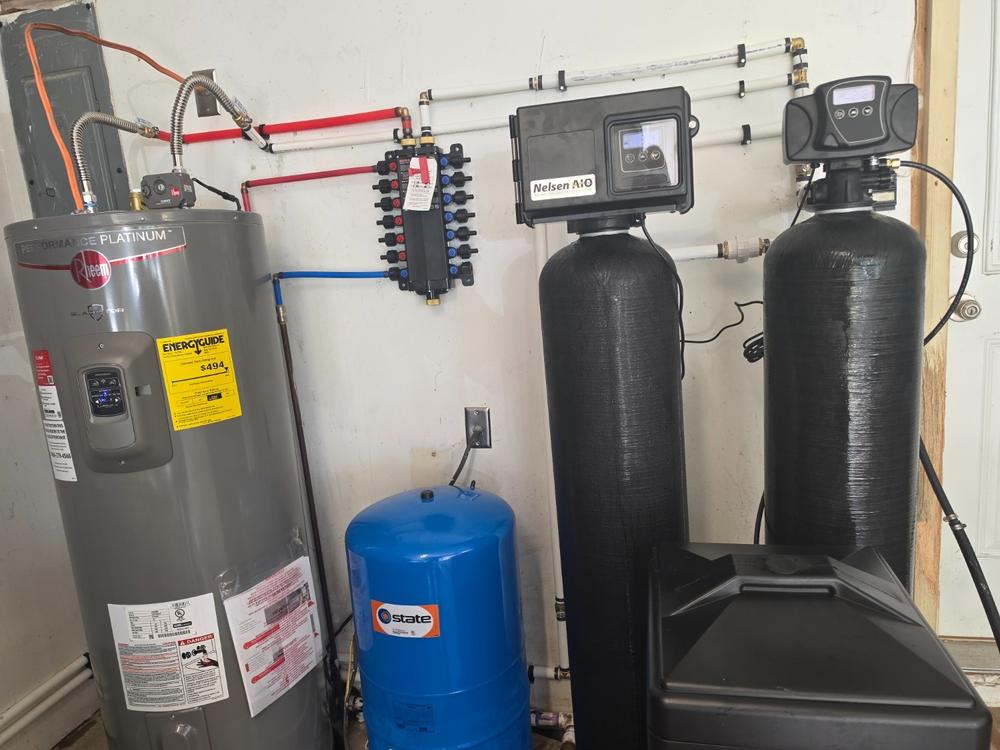

Installed by buyers and their plumbers
Open a photo for the full review.Read all reviews
Watch before you buy
13 videos from our YouTube channel, which has 1.8 million views
I'm the guy in the videos. Text or call me and I'll help you figure it out. No bots, no call center.
Text me from your phone
Scan this with your phone's camera
It opens a text message to me with your question already started. Just hit send.
Or text 443-277-2204
What homeowners are saying

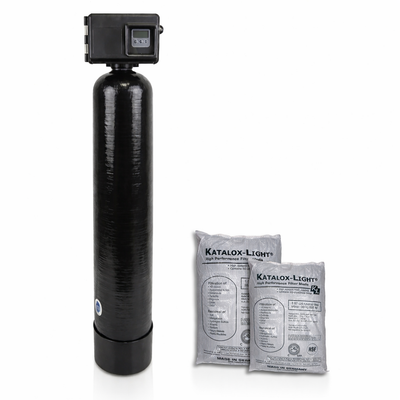

Iron Filter System 1
- ✓ 1.5 cubic foot mineral tank (10" x 54") - handles up to 30 ppm iron, 15 ppm manganese, 10 ppm sulfur
- ✓ Fleck 2510 AiQ control valve with Air Injection technology - no chemicals, no chlorine feed, regenerates itself with fresh air
- ✓ 1.5 cubic feet of Katalox-Light iron and sulfur removal media, in separate bags; it goes into the tank at install
- ✓ Stainless steel bypass valve, already installed on the control valve (your plumber supplies the adapters for your pipe)
- ✓ Upper basket / distributor to prevent media escape during backwash
Water Softener System 2
- ✓ Fleck 5600SXT digital control valve - recharges the resin only when needed, based on the water you use, with backlit LCD; program settings are kept without power
- ✓ Softener tank (10" wide x 54" tall Vortech), ships empty
- ✓ 1.5 cubic feet of 10% crosslink softener resin (the beads that remove hardness), in separate bags; it goes into the tank at install
- ✓ 48,000 grain capacity - sized for 2-4 people / 2-3 bathrooms
- ✓ Brine (salt) tank with safety float and auto-shutoff
- ✓ Stainless steel bypass valve - pre-installed on the control head
Included With Both Systems
- ✓ Free shipping to all lower 48 states - ships freight on a pallet
- ✓ One fill funnel for pouring the media into both tanks
- ✓ Tech support 7 days a week: call 800-460-5810 or text Aidan at 443-277-2204
What ships: both empty mineral tanks, both control valves with bypass valves pre-installed, the brine tank, and all media (softener resin and Katalox-Light) in separate bags; a loaded tank is too heavy to ship without damage. Media is poured into each tank through the included funnel at install. No printed manual ships; the install guide and videos are online. Drain tubing is not included. We recommend installation by a licensed plumber; Aidan supports your plumber by phone at 800-460-5810.
Iron Filter (Fleck 2510 AiQ)
| Model | Fleck 2510 AiQ with Katalox-Light media |
|---|---|
| Technology | Air injection (no chemicals, no chlorine feed) |
| Media | Katalox-Light - 1.5 cubic feet included, in bags, poured in at install |
| Tank Dimensions | 10" x 54" |
| Iron Removal | Up to 30 ppm (ferrous and ferric) |
| Manganese Removal | Up to 15 ppm |
| Sulfur (H2S) Removal | Up to 10 ppm |
| Sediment Filtration | Down to 3 microns |
| pH | Works best near pH 8. If yours is lower, send Aidan your test before you order. |
| Backwash Frequency | Cleans itself every day as shipped (can be set to every 2 to 4 days for light use) |
| Household Flow | Up to 10 gallons per minute |
| Well Flow Needed to Backwash | 5 gallons per minute |
| Media Life | About 6 to 8 years, depending on water use and iron level |
| Connections | Stainless steel bypass valve, already installed (your plumber supplies the pipe adapters) |
| Power | 120V standard outlet |
| Warranty | 5-year valve / 10-year tank |
Water Softener (Fleck 5600SXT)
| Model | Fleck 5600SXT Electronic Demand |
|---|---|
| Resin | 10% crosslink softener resin - 1.5 cubic feet, in bags, poured in at install |
| Grain Capacity | 48,000 grains |
| Household Flow | Up to 12 gallons per minute |
| Salt Use | Aidan's own 3-person home uses about one 40 lb bag every 30 to 45 days; larger households and harder water use more. |
| Tank Dimensions | 10" wide x 54" tall (Vortech) |
| Salt Tank | Separate brine tank with safety float / auto-shutoff |
| Bypass Valve | Stainless steel (pre-installed) |
| Regeneration | Electronic demand - counts gallons |
| Power Outage | Program settings are kept without power |
| Connections | Through the bypass valve (your plumber supplies the pipe adapters) |
| Household Size | 2-4 people / 2-3 bathrooms |
| Warranty | 5-year valve / 10-year tank |
Both Systems
| Shipping | Free - both systems ship on one pallet via freight; tanks ship empty with the media in separate bags; drain tubing not included |
|---|
⚡
We recommend installation by a licensed plumber; Aidan supports your plumber by phone at 800-460-5810. Both tanks ship empty, and the media goes in at install. The iron filter needs a 120V outlet and a drain line (for backwash). The softener needs the same: 120V outlet and a drain. Drain tubing is not included, and your plumber supplies the pipe adapters.
Correct Installation Order (This Matters)
Well / Pressure Tank
→
Sediment Filter (optional)
→
Iron Filter
→
Water Softener
→
House
⚠️ Order matters: The iron filter must come before the water softener. Dissolved iron fouls softener resin and shortens its life. Removing the iron first protects the softener resin, which on hardness alone can last for decades.
Step 1 - Iron Filter (Fleck 2510 AiQ)
- Shut off the main water supply and relieve pressure at a nearby faucet
- Position the tank on a level surface, near a drain (backwash sends water out during regen)
- Load the media: the tank ships empty. With the valve off the tank, cover the top of the center tube and pour the Katalox-Light in through the included funnel
- Connect inlet and outlet to the main water line through the bypass valve (water direction is marked on the valve head)
- Run the drain line from the valve to a floor drain, utility sink, or standpipe; your plumber sizes it for the backwash flow and the length of the run
- Hand-tighten the valve, then only a quarter to half turn with channel locks - over-tightening can crack the tank lip
- Plug the valve into a standard 120V outlet
- Open bypass slowly, let the tank fill, then switch to service
- Set the date and time on the 2510 AiQ valve (DATE/TIME on its Home menu). It comes programmed to clean itself (backwash) every day, which keeps the air pocket fresh
Step 2 - Water Softener (Fleck 5600SXT)
- Position the softener downstream of the iron filter
- Load the resin: the tank ships empty. With the valve off the tank, cover the top of the center tube and pour the resin in through the funnel
- Connect inlet and outlet to the main water line - water direction is marked on the valve head
- Run a 1/2" drain line from the valve to a floor drain, utility sink, or outside (max 20 feet)
- Plug in to a standard 120V outlet
- Add water softener salt to the brine tank; keep the salt level higher than the water level
- Open bypass slowly, fill the resin tank, then switch to service
- Program the 5600SXT valve: time of day, water hardness, and tank capacity
- Run the valve's start-up steps; Aidan walks your plumber through them by phone
Need help? Call 800-460-5810 or text Aidan at 443-277-2204, 7 days a week. He supports your plumber through the install and both valves' settings. No printed manual ships; the install guide and videos are online.
✨
Two simple routines: The iron filter self-regenerates using air injection. You don't dose it with potassium permanganate or chlorine. The softener just needs salt. That's most of it.
Iron Filter Maintenance
- Every Day Automatic backwash. The 2510 AiQ valve cleans itself every day as shipped: it refreshes the air pocket and flushes iron and sediment out the drain. No action needed from you. On light water use it can be set to every 2 to 4 days.
- Annually Test your water. Confirm iron, manganese, and sulfur are still removed. If iron breakthrough starts showing up in toilet tanks or fixtures, regen frequency may need to increase.
- Every 6-8 Years Replace the Katalox-Light media. How long it lasts depends on your water use and iron level. Only the media is replaced; the tank and valve stay.
Water Softener Maintenance
- Monthly Check salt level. Keep the salt level higher than the water level; Aidan keeps a couple of bags in the brine tank.
- Annually Clean the brine tank. Let the salt run low and clean out any salt bridges or mushing that can impair regeneration.
- Rarely Replace the softener resin. On hardness alone resin can last for decades; iron that reaches it shortens its life. Signs of worn resin: hard water returning, increased salt usage, or resin beads in water.
- As Needed Check the venturi and injector. If regeneration seems sluggish, the venturi assembly may need cleaning. Takes 5 minutes with no tools.
Replacement Media & Parts
Pro tip: The Fleck 2510 AiQ's air injection is what makes this system nearly maintenance-free. There's no chemical feed, no potassium permanganate, no chlorine injection. The air bubble in the head oxidizes iron as it passes through, and the Katalox-Light media catches the precipitate. Questions? Call 800-460-5810 or text Aidan at 443-277-2204.
- 🔗Iron Filter vs Water Softener: Do You Need Both?→
- ⚗️Can a Water Softener Remove Iron? (The Truth)→
- 📘Iron Filters for Well Water: The Complete Guide→
- 📘Water Softeners: The Complete Guide→
- ⭐Best Iron Filter for Your Well Water→
- 💰Iron Filter Cost for Well Water (Pricing Guide)→
- 🔢Correct Order for Well Water Treatment Systems→
- 🏠Complete Guide to Well Water Filtration Systems→
What's In This Package
Installed in this order on your main water line.
Stage 1

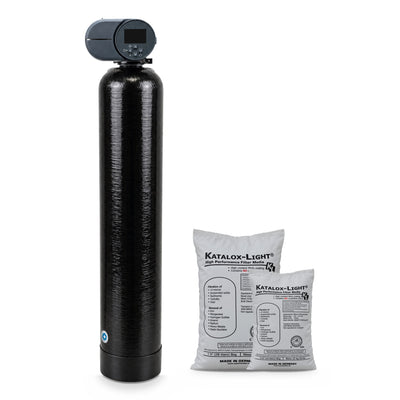

Compact Iron Filter for Well Water, 1.5 cu ft (1-2 Bathrooms)
Removes iron, manganese, and sulfur from well water
$2,495.00 individually
View this system
Stage 2
Fleck 5600SXT 48,000 Grain Electronic Demand Deluxe Water Softener
Removes hardness minerals, protects fixtures and appliances
$1,995.00 individually
View this system
Purchased separately:
$4,490.00
Complete system package: $3,995.00
You save $495.00 when purchased as a complete system
The Complete Iron + Hard Water Solution for Average Well Water Homes
1.5 cu ft Katalox-Light Iron Filter + 48,000 Grain Fleck 5600SXT Softener
Most well water homes deal with both iron staining and hard water at the same time, and trying to solve only one side usually leaves the other still damaging plumbing, appliances, and fixtures. This compact package pairs the Fleck 2510 AiQ with Katalox-Light (removes up to 30 ppm iron, 15 ppm manganese, and 10 ppm sulfur with no chemicals) with the Fleck 5600SXT 48,000 grain water softener (10% crosslink resin, demand-based regeneration). The iron filter protects the softener resin from iron fouling, and the softener handles the scale and soap problems the iron filter can't touch.
This package is sized for 2-4 people, 2-3 bathrooms. Free shipping, 5-year valve warranties, 10-year tank warranties, and tech support from Aidan 7 days a week.
✔
NSF/ANSI 61 Certified Iron Media
✔
Katalox-Light Iron Media
✔
Fleck 2510 AiQ Air Injection
✔
Fleck 5600SXT Softener Valve
✔
10% Crosslink Resin
✔
Electronic Demand Regen
✔
Tech Support 7 Days a Week
✔
New Fleck 2510 AiQ Valve
| Feature | Our System | Others |
|---|---|---|
| Iron Filter Valve | ✔ Fleck 2510 AiQ Air Injection | Generic Timer Valve |
| Softener Valve | ✔ Fleck 5600SXT Electronic Demand | Timer-Based Regeneration |
| Iron Filter Media | ✔ Katalox-Light (Removes up to 30 ppm iron) | Standard Greensand or Birm |
| Softener Resin | ✔ 10% Crosslink Resin | Standard 8% Resin |
| Warranty | ✔ 5-Year Valves / 10-Year Tanks (Both) | 1-Year Limited |
| Expert Support | ✔ 7-Day Phone, Text & Email | Limited or None |
Iron Filter Valve
✅ Us
Fleck 2510 AiQ Air Injection
❌ Them
Generic Timer Valve
Softener Valve
✅ Us
Fleck 5600SXT Electronic Demand
❌ Them
Timer-Based Regeneration
Iron Filter Media
✅ Us
Katalox-Light (Removes up to 30 ppm iron)
❌ Them
Standard Greensand or Birm
Softener Resin
✅ Us
10% Crosslink Resin
❌ Them
Standard 8% Resin
Warranty
✅ Us
5-Year Valves / 10-Year Tanks (Both)
❌ Them
1-Year Limited
Expert Support
✅ Us
7-Day Phone, Text & Email
❌ Them
Limited or None
Got a Question About Your System?
Whether you need help with installation order, plumbing layout, programming the Fleck 2510 AiQ or 5600SXT valves, adding Katalox-Light media, or troubleshooting either system, Aidan is available 7 days a week. Real answers from someone who has been doing this for 29+ years.
Frequently Asked Questions
Customer Reviews
5.0
Based on 2 Reviews
Customer Photos
Fleck 2510 AiQ 1.5 Kat...
$3,995.00
