Fleck 2510SXT 2.5 Cubic Foot Vortech (13x54) Backwashing Acid Neutralizer
Fleck 2510SXT 2.5 Cubic Foot Vortech (13x54) Backwashing Acid Neutralizer
Complete 2.5 Cubic Foot Backwashing Acid Neutralizer System
- ✓ 2.5 cubic foot Vortech media tank (13" x 54") - total height with valve 62", translucent almond color
- ✓ Fleck 2510SXT digital control valve - metered backwashing with programmable cycle timing
- ✓ 5 x 50 lb bags of calcite media (250 lbs total) - naturally raises pH to neutral 7.0
- ✓ 24V transformer - plugs into any standard outlet, connects to the valve head
- ✓ Drain tubing - 3/8" line for the backwash discharge
- ✓ Bypass valve - isolate the tank for service without shutting off water
- ✓ Fill funnel - add calcite without removing the valve head
- ✓ 1" male threaded connections - easily reduced to 3/4"
- ✓ Free shipping to all lower 48 states
| System Model | Fleck 2510SXT 2.5 cu ft Vortech Backwashing |
|---|---|
| Control Valve | Fleck 2510SXT Digital Metered by Pentair |
| Flow Rate Capacity | Up to 15 GPM |
| Capacity | 3-5 Baths (3-8 People) |
| pH Treatment | 5.5-6.9 (Neutralizes to ~7.0) |
| Dimensions | 13" x 54" x 62" H (with valve) |
| Connections | 1" male threaded with bypass valve |
| Media Included | 250 lbs Calcite (5 x 50lb bags) |
| Backwash Cycle | Every 3-5 days, 90-120 gallons per cycle |
| Maintenance | Refill calcite every 6-12 months |
| Requirements | 120V outlet + drain line |
| Hardness Impact | +4-6 Grains/Gallon |
| Warranty | 5 Yr Valve / 10 Yr Tank |
Installation Steps
- Shut off the main water supply and relieve pressure at a nearby faucet
- Mount the system on the main water line after the pressure tank. Water enters the inlet side of the valve and exits the outlet to the house
- Connect the bypass valve (included) for service isolation
- Route the 3/8" drain line from the valve drain port to a floor drain, utility sink, or outside
- Plug the 24V transformer into a standard outlet and connect to the valve head
- Set the current time of day and backwash schedule on the Fleck 2510SXT controller (every 3-5 days is typical)
- Open the bypass slowly, then switch to service position. Run water for 10-15 minutes to flush calcite fines
Recommended System Order
Maintenance Schedule
- Automatic Backwash cycle runs on schedule. Set every 3-5 days on the 2510SXT controller. Each cycle runs for 30-45 minutes (typically at 2 AM), using 60-120 gallons depending on tank size. This prevents channeling, removes trapped sediment, and keeps the calcite bed loose and effective.
- Every 6-12 Months Refill calcite media. Calcite dissolves as it neutralizes acid, so the media level drops over time. Check the level through the fill port every few months. When it gets below the halfway mark, add calcite using the included fill funnel. Refill frequency depends on your pH level and water usage.
- Yearly Check the drain line. Make sure the backwash drain line is clear and flowing freely. A clogged drain line can cause the backwash cycle to fail and may damage the valve.
- Every 3-6 Months Replace sediment pre-filter cartridge (if using a Big Blue upstream). A sediment filter protects the calcite bed and extends media life.
Replacement Calcite Media
Vortech® Technology uses a patented internal distributor system to maximize media contact, reduce channeling, and deliver consistent treatment across the entire tank.
The result is higher efficiency, longer media life, and reliable performance without unnecessary complexity or wasted capacity. Built for real-world conditions and proven across thousands of installs.
Certified Performance
System utilizing proven Vortech™ technology.
Assembled in USA
Designed, engineered, and made in the USA.
5-Year Warranty
On the premium Clack control valve.
10-Year Warranty
On the structural media tank.
Tech Support
Call or Text 443-277-2204
7 Days/Week • 8am–5pm EST
Order Processing & Prep
Orders are verified and sent to our Ohio facility. Your system is picked, palletized, and shrink-wrapped in secure, damage-resistant packaging.
Freight Shipment
In stock and typically ships within 2–4 business days. We use heavy freight carriers (usually RNL). You will receive a tracking number via email.
Transit Time
Free shipping to the lower 48 states.
• 1–2 business days (East Coast/Midwest)
• 4–5 business days (West Coast)
Liftgate Delivery
Due to weight (~400 lbs), delivery is via liftgate truck to your driveway or curb.
Why isn't this 1-day shipping like Amazon?
Unlike a standard Amazon package, this package weighs roughly 400 lbs and gets delivered on a pallet. It requires specialized pallet handling, tractor-trailers, and liftgates to ensure it arrives safely. We prioritize damage-free delivery over speed.
- 📘Acid Neutralizers: The Complete Guide→
- 🏆Best Acid Neutralizer for Well Water (2026 Buyer's Guide)→
- 📐Acid Neutralizer Sizing Guide: What Size Do You Need?→

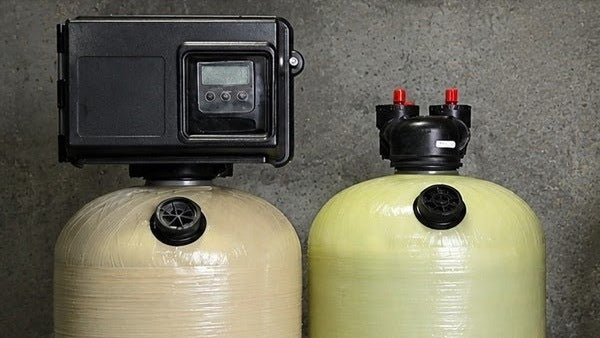

- ⚖️Backwashing vs. Non-Backwashing: Which Do You Need?→
