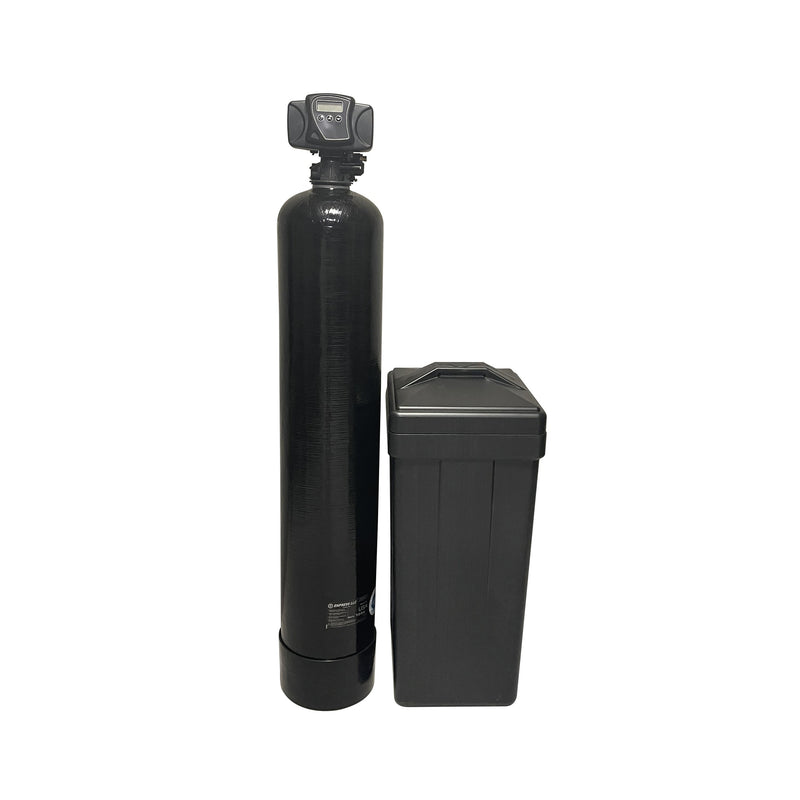

Whole-house tannin removal on the proven Fleck 5600SXT metered valve: 1.5 cubic feet of tannin-selective anion exchange resin in a gravel-free Vortech tank, regenerated with ordinary softener salt.
Watch This Before BuyingMeet Aidan, your water treatment expert
Whole-house tannin removal on the proven Fleck 5600SXT metered valve: 1.5 cubic feet of tannin-selective anion exchange resin in a gravel-free Vortech tank, regenerated with ordinary softener salt.
Watch This Before BuyingMeet Aidan, your water treatment expert
Not sure if it's tannins or iron?I'm the guy in the videos. Yellow water has three suspects: tannins, iron, and manganese, and they need different filters, so send me your well test (or a photo of the overnight glass test) and I'll tell you exactly what fits: the 6 GPM, the Fleck, the 10 GPM, the complete package, or just the $99 test first. If a softener needs to go upstream or an acid neutralizer downstream, I'll tell you that too.
✓Fleck 5600SXT electronic metered control valve - demand regeneration by gallons actually used, digital display, settings retained through power outages.
✓1.5 cubic feet of high-capacity tannin-selective anion exchange resin - captures dissolved organics and releases them to the drain each salt regeneration.
✓10" x 54" Vortech mineral tank - gravel-free distributor plate, less backwash water, corrosion-proof. 10" diameter x 60" high with valve.
✓High-capacity brine tank - holds the water softener salt used for regeneration. Safety float with automatic shutoff.
Recommended add-on: A 20" Big Blue sediment filter installed upstream protects the resin bed from particulates and extends media life. Strongly recommended for any well water installation.
1/2" backwash drain connection, required for regeneration
Power
Standard wall outlet (transformer included)
Service Flow Note
The 5600SXT/10x54 hardware supports up to ~12 GPM peak, but tannin removal is contact-time limited - treat this bed as ~6 GPM continuous tannin duty (1-2 bath homes)
Fleck 5600SXT Control Valve
Type
Electronic demand-metered regeneration (regenerates by gallons used)
Display
Digital SXT display with time, gallons remaining, and error codes
Settings Backup
Programming retained through power outages
Track Record
The most widely used residential control valve platform in America - parts and know-how available everywhere
Bypass
Stainless steel bypass valve included
What It Fixes
✓ Tannins (yellow / tea-colored water)
✓ Natural organic matter (humic / fulvic acids)
✓ Organic color and staining on fixtures and laundry
✓ Earthy / bitter organic taste
Note: tannin systems do not remove iron, hardness, or bacteria. Iron-driven yellow water needs an iron filter, and hardness should be removed upstream by a softener to protect the anion resin. A certified lab test (the parameter reads "Tannin-Lignin") confirms what you are dealing with before you buy.
⚡
Installs like a water softener: inlet, outlet, drain line, and a standard wall outlet. Standard plumbing skills are enough for most homeowners. Call or text us before you start - placement order in the treatment train matters for tannin systems.
Test your water first. Before installing we need your tannin, iron, hardness, and pH numbers. Iron-driven yellow water needs an iron filter instead, hardness should be removed upstream so the anion resin stays healthy, and a near-neutral pH may need an acid neutralizer downstream. Start with a tannins water test kit if you don't have a recent lab report.
What the Install Requires
Shut off the main water supply and relieve pressure at a nearby faucet.
Place the mineral tank and brine tank in their final location (tank stands 10" diameter x 60" high with valve, on a flat solid surface, protected from freezing).
Plumb the inlet to the cold water main, downstream of any iron filter and the water softener.
Plumb the outlet to the house plumbing and set the bypass valve to the service position.
Run a drain line (1/2" backwash drain connection) from the control valve to an approved drain - required for regeneration.
Connect the brine line between the control valve and the brine tank, and add water softener salt.
Plug in the included transformer and program the 5600SXT - we'll walk you through the settings on the phone, including the frequent-regeneration schedule that keeps tannin resin healthy.
Slowly open the inlet, then the outlet, run a manual regeneration, and flush a downstream faucet until the water runs clear.
Hardness fouls anion resin, so the softener goes upstream: it extends resin life and improves tannin removal. And because anion exchange strips some alkaline ions, treated water typically drops about a point of pH; if your well starts near neutral, an acid neutralizer after the tannin unit brings it back to 7.
Need help? Call or text Aidan at 800-460-5810 - 7 days a week. We help with sizing, water test interpretation, plumbing layout, and start-up programming.
✨
Maintenance is the same as a water softener: keep salt in the brine tank. The metered valve regenerates the resin automatically. The one tannin-specific rule: regenerate frequently, so organics never get the chance to foul the bed.
Maintenance Schedule
MonthlyCheck the brine tank salt level and top it up with water softener salt. Tannin systems regenerate every few days by design, so expect somewhat higher salt use than a softener of the same size.
Every 3-6 monthsReplace the upstream sediment cartridge (if running a Big Blue pre-filter). Frequency depends on water sediment load.
Watch for itA fishy or musty odor in the treated water means the resin is fouling. It is the classic symptom of organics stuck in the bed. Call us: an extended regeneration, or a cleaning cycle with salt plus baking soda, usually restores a fouled bed.
AnnuallyWatch the water color in a white tub or bucket. Returning yellow tint means the resin needs attention: more frequent regeneration, a cleaning cycle, or eventually a rebed.
Every few yearsInspect and clean the brine tank when salt bridging or sediment builds up at the bottom.
After years of serviceRebed the tank with fresh resin. Because the bed regenerates with salt, it lasts for years when regenerated frequently. When capacity finally declines, replace the media with replacement tannin resin rather than replacing the system.
Questions about salt usage or resin life on your water? Call or text 800-460-5810 with your tannin level and water use - higher organics mean more frequent regeneration, and we'll give you a realistic estimate instead of a brochure number.
Aidan has 32 years of industry experience. has 32 years of industry experience.
Well Water Testing: The Complete Guide
America's Most Proven Valve, Pointed at Yellow Water
Fleck 5600SXT metered regeneration + tannin-selective anion resin in a gravel-free Vortech tank
Tannins are natural organic matter from decaying vegetation: water picks them up moving through peaty soil, marshland, and shallow aquifers, and arrives at your tap tinted anywhere from faint yellow to tea brown. They are an aesthetic problem rather than a health hazard (the EPA's secondary guideline for color is 15 color units), but they stain laundry and fixtures, give water an earthy or bitter edge, and make every glass look wrong.
This system fixes tannins at every tap with 1.5 cubic feet of high-capacity tannin-selective anion exchange resin, regenerated with ordinary water softener salt. The platform is the part you already know: the Fleck 5600SXT is the most widely used residential control valve in America, which means proven reliability, parts availability everywhere, and a digital metered head that regenerates by gallons actually used.
The 10 inch by 54 inch Vortech mineral tank uses a gravel-free distributor plate that cuts backwash water use and improves flow through the bed. Stainless steel bypass and brine tank with safety float included. Free shipping. 7-day-a-week support from real water treatment specialists with 30+ years of experience.
✔Fleck 5600SXT Metered Valve
✔Fixes Yellow / Tea-Colored Water
✔1.5 Cu Ft Tannin-Selective Resin
✔Gravel-Free Vortech Tank
✔Regenerates With Softener Salt
✔Stainless Steel Bypass Included
Feature
Our System
Others
Control Valve
✔
Fleck 5600SXT - the most proven residential valve in America
No-name valve with unknown parts availability
Tank Design
✔
Vortech gravel-free distributor - less backwash water
Gravel underbed, more backwash waste
Regeneration
✔
Metered demand - ordinary water softener salt
Timer-based, wasteful, or unclear
pH Drop Disclosure
✔
We tell you upfront and spec the neutralizer fix
The ~1 point pH drop is rarely mentioned
Pretreatment Honesty
✔
Softener-first guidance stated plainly before you buy
Pretreatment buried in warranty fine print
Sizing
✔
Expert-sized from your lab test (tannin, iron, hardness, pH)
One-size listing, no water chemistry review
Long-Term Cost
✔
Regenerable resin - rebed after years, not a sealed throwaway
Replace cartridges or whole units when fouled
Expert Support
✔
7 days a week, 30+ years experience
Limited or none
Control Valve
✅ UsFleck 5600SXT - the most proven residential valve in America
❌ ThemNo-name valve with unknown parts availability
Tank Design
✅ UsVortech gravel-free distributor - less backwash water
❌ ThemGravel underbed, more backwash waste
Regeneration
✅ UsMetered demand - ordinary water softener salt
❌ ThemTimer-based, wasteful, or unclear
pH Drop Disclosure
✅ UsWe tell you upfront and spec the neutralizer fix
❌ ThemThe ~1 point pH drop is rarely mentioned
Pretreatment Honesty
✅ UsSoftener-first guidance stated plainly before you buy
❌ ThemPretreatment buried in warranty fine print
Sizing
✅ UsExpert-sized from your lab test (tannin, iron, hardness, pH)
❌ ThemOne-size listing, no water chemistry review
Long-Term Cost
✅ UsRegenerable resin - rebed after years, not a sealed throwaway
❌ ThemReplace cartridges or whole units when fouled
Expert Support
✅ Us7 days a week, 30+ years experience
❌ ThemLimited or none
✔ Free Tech Support
Buy with us and you have a real water-treatment expert to call whenever you need help. Reading a tannin lab report, valve programming, regeneration schedules, install questions, whatever comes up, you have my number.
📞 Call Us800-460-5810
✉️ Email Supportsupport@midatlanticwater.net
🕒 Live Hours7 Days/Week, 8AM-5PM EST
Frequently Asked Questions
By salt-regenerated anion exchange. The Vortech tank holds 1.5 cubic feet of high-capacity tannin-selective anion exchange resin. Tannins carry a slight negative charge, so as water flows through the bed the resin swaps harmless chloride ions for the tannin molecules and holds them by both ion exchange and adsorption. When the Fleck 5600SXT regenerates with a sodium chloride brine (ordinary water softener salt), the organics flush to the drain and the resin restores to chloride form. Same mechanic as a water softener, with a resin selected for organics instead of hardness.
Tannins are an aesthetic problem, not a health hazard. They are natural organic compounds from decaying vegetation, common in shallow wells and in marshy, low-lying, or coastal areas. The EPA covers them under its secondary (non-enforceable) standards: color becomes objectionable to most people above 15 color units. That said, yellow or tea-colored water still deserves a lab test, because discoloration can also signal iron, manganese, or surface water getting into the well, and those have different fixes.
Two checks. The quick one: fill a clear glass and let it sit overnight. Color that settles to the bottom is likely ferric iron or sediment; water that stays uniformly tinted is dissolved organics, meaning tannins. The reliable one: a certified lab test, where the parameter is reported as Tannin-Lignin. The distinction matters because iron needs an iron filter, not anion resin, and if your test shows meaningful iron alongside low tannins, we'll tell you to treat the iron first.
Pick this unit if you value the most field-proven valve platform in residential water treatment. The 5600SXT has decades of track record, a digital metered head, and parts and service knowledge available from virtually any water treatment professional in the country. Its 1.5 cu ft bed suits 1-2 bath homes (tannin duty is contact-time limited, so size by resin volume, not peak valve flow). If you want a larger bed for 3+ bathrooms or heavier tannin loads, the 10 GPM system with 2.5 cu ft is the step up. Either way, call or text us with your bathroom count and water test and we'll size it in two minutes.
No. Softener resin is a cation resin: it captures positively charged calcium and magnesium. Tannins are negatively charged organics and pass straight through. The two systems are partners, not substitutes: hardness fouls anion resin, so the industry-standard order is softener first, tannin system after it. The softener extends the tannin resin's life and improves its removal. Do not mix cation and anion resin in one tank - mixed beds regenerate poorly and underperform at both jobs.
At a single tap, yes - RO rejects dissolved organics well. But tannins are a whole-house problem: they stain laundry, fixtures, and tubs at every tap, not just the kitchen sink. Whole-house RO is a $5,000-$10,000 proposition, and organics are exactly what fouls RO membranes and carbon filters early. That is why salt-regenerated anion exchange is the standard residential fix: it treats every tap, regenerates itself with softener salt, and protects any downstream RO you add for drinking water.
Anion exchange removes some alkaline ions along with the tannins, so treated water typically drops about a point of pH until the resin's capacity for those ions saturates. We see it in the field regularly: a well at 7 lands around 6 after the tannin unit. The fix is an acid neutralizer installed after the tannin system to bring pH back to neutral, protecting your copper pipes and fixtures. If your well already runs low pH, plan the neutralizer into the build from day one - tell us your pH number and we'll spec it.
Tannin systems regenerate more often than a softener on purpose. Organic molecules that sit on the bed too long migrate into the resin matrix and become very hard to strip, so the standard guidance is to regenerate every two to three days rather than stretching capacity. The metered valve handles the schedule automatically; your job is keeping water softener salt in the brine tank. Expect somewhat higher salt use than a same-size softener - that's the cost of keeping the bed healthy for years instead of replacing fouled resin.
Years, if it regenerates frequently. Organics that sit on an anion bed too long migrate into the resin matrix and become hard to strip, which is what normally kills tannin beds - so we program frequent regeneration from day one. The classic warning sign of a fouling bed is a fishy or musty odor in the treated water; a cleaning cycle with salt and baking soda usually restores it. When capacity finally declines after years of service, you rebed the tank with replacement tannin resin (we sell it by the cubic foot) rather than replacing the system.
Yes, always. Yellow water has multiple causes and they need different equipment. Our $99 tannins water test kit is a certified lab analysis that reports Tannin-Lignin plus the iron, hardness, and pH numbers we need to size the system and plan the treatment order. Real example from our support line: a customer's lab showed 1 ppm tannin alongside 1.5 ppm iron, and the right answer was an iron filter, not a tannin system. Send us your results and we'll personally confirm the right system before you spend anything.
Customer Reviews
0.0Be the first to review this item
5 ★
0%
0
4 ★
0%
0
3 ★
0%
0
2 ★
0%
0
1 ★
0%
0

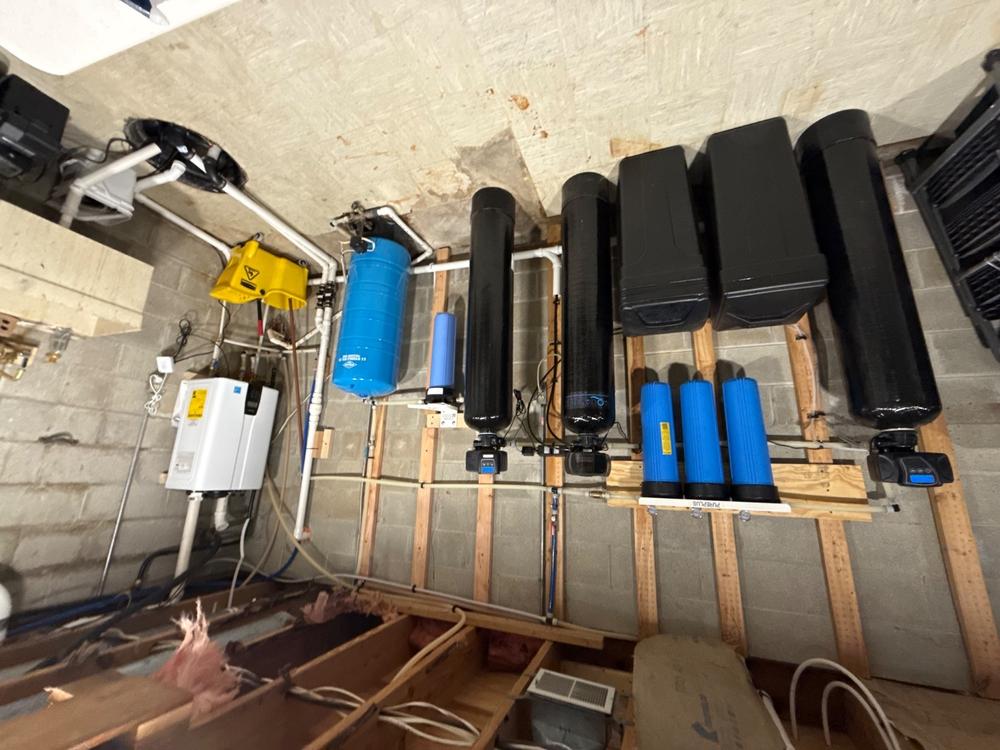

Customer Photos
Write a ReviewAsk a Question
Fleck 5600SXT Whole Ho...$2,695.00
Why Our Tannin System Costs More
A proven valve platform and honest sizing vs generic anion beds and cartridge gimmicks
What you get with budget tannin filters
Cheap 'tannin filters' sold online fall into two traps. The first is unnamed bulk anion resin on a no-name valve: when it fouls or the valve fails, parts and service knowledge are nowhere to be found. The listing never names the components, so you cannot know until it fails.
The second trap is carbon cartridges marketed for tannins. Carbon has very limited capacity for dissolved organics: it works briefly, then exhausts, and you are replacing cartridges every few months chasing a problem that anion exchange handles continuously. Most budget listings also skip the two facts that determine success: hardness must come out upstream, and treated pH drops about a point.
The Real Cost Comparison
Generic Anion 'Tannin Filter'
$800 - $1,800
❌Lifespan: Fails in 3-4 years
❌Result: Frequent repairs, poor water quality, leaks
❌Support: None
Unnamed resin and valve, fouls early, no sizing review
Best Long-Term Value
This System (Fleck 5600SXT, 1.5 cu ft)
$2,695
✅Lifespan: Lasts 15+ years
✅Result: Done right the first time, peace of mind
✅Support: Lifetime USA Support
Proven valve, tannin-selective resin, metered salt regeneration, expert sizing
Over a 10-year period the math favors this build: the resin regenerates with softener salt instead of being replaced, the metered valve runs the frequent cycles that keep the bed healthy, and when a seal or piston eventually wears on the 5600SXT, the part costs dollars and every water treatment pro in the country knows how to fit it. For a problem you see in every glass, every tub, and every load of laundry, the difference between a proven platform and a no-name unit is the difference between fixing tannins once and buying the same fix twice.
What you get with this system
The Fleck 5600SXT is the most widely used residential control valve in America: decades of track record, parts on every supplier's shelf, and any local water treatment pro can service it. The Vortech tank's gravel-free distributor cuts backwash water every single regeneration, and the demand-metered head regenerates on the frequent schedule tannin resin actually needs, using ordinary softener salt.
And every system is sized by a real person against your actual lab report, including the iron, hardness, and pH checks that decide whether a tannin system is even the right purchase. 7-day-a-week support from water treatment specialists with 30+ years of experience, before and after the sale.
Contact Us
800-460-5810
We're here to help.
30-Day Return Policy
30 days from delivery to make sure it's right for your home
If you're not satisfied with this tannin removal system within 30 days of delivery, contact us and we'll arrange the return. You'll get a full refund of the purchase price once the system is back in our warehouse. No restocking fees on unopened systems. We handle the freight logistics so you don't have to figure out how to crate and ship a loaded mineral tank yourself.
10,000+Systems Installed
455+Verified Reviews
30+Success Rate
We've been helping homeowners solve well water problems for over 30 years. We back this system with a straightforward 30-day return window so you can install it, watch the yellow tint clear, and confirm it's the right fit for your home with zero long-term commitment.
The Industry "Return Policy" Trap
+
Most online water treatment retailers offer a return policy that requires you to ship the entire system back at your expense, including a heavy mineral tank. After paying $200+ in return shipping, you often discover a 15-25% restocking fee on top of that. It's designed to make returns impractical.
Our 30-day return is different: no restocking fees on unopened systems, and we coordinate the freight so you're not left figuring out how to ship a mineral tank back to a warehouse.
How Our 30-Day Return Works
1
Contact Us Within 30 Days
Call, text, or email within 30 days of delivery to start the return. We'll ask a few quick questions to confirm the system condition.
2
We Arrange the Return
We coordinate freight pickup or provide return instructions. You don't have to figure out how to crate or ship a heavy mineral tank.
Refund Issued, No Restocking Fee
Once the system is back at our warehouse and inspected, we issue a full refund to your original payment method. No restocking fees on unopened systems.
Tannin problems are visible: you can fill a white tub before and after and see whether the system did its job. You should have time to install it, watch the water clear, and confirm the fix before you're locked in. That's why the return policy is simple: 30 days, no restocking fees, no shipping a loaded tank back at your expense.
