Ozone Iron Filter for Well Water, 2.5 cu ft

Name: Ozone Iron Filter for Well Water, 2.5 cu ft
Brand: Mid Atlantic Water
SKU: AIO-CFM-NWS-OZ-C13-KAT | F250
Price: 2695.0 USD
Availability: InStock

Clack-Based Air Injection + Ozotech Ozone | 2.5 cu ft Katalox Light | 13 x 54 Tank

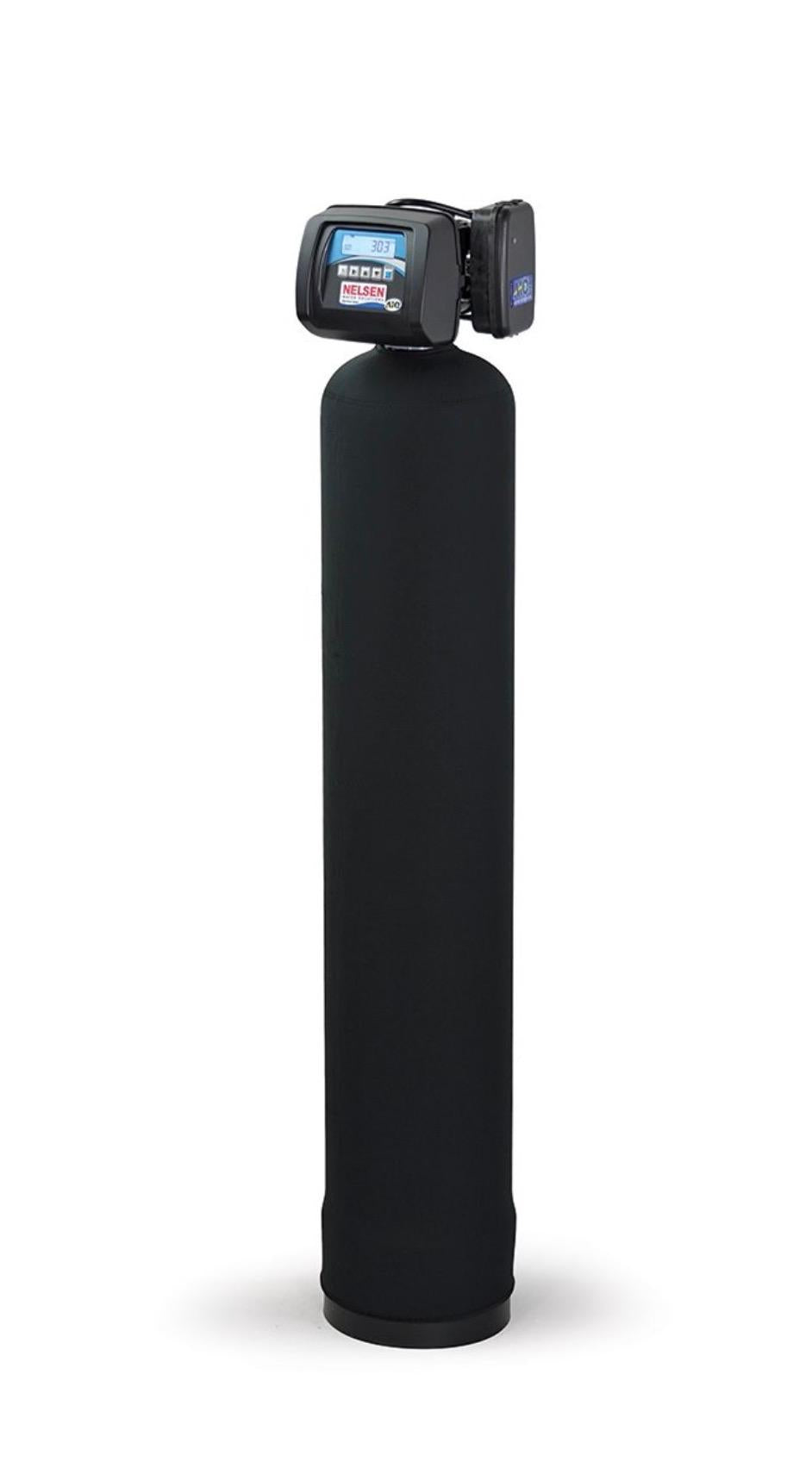

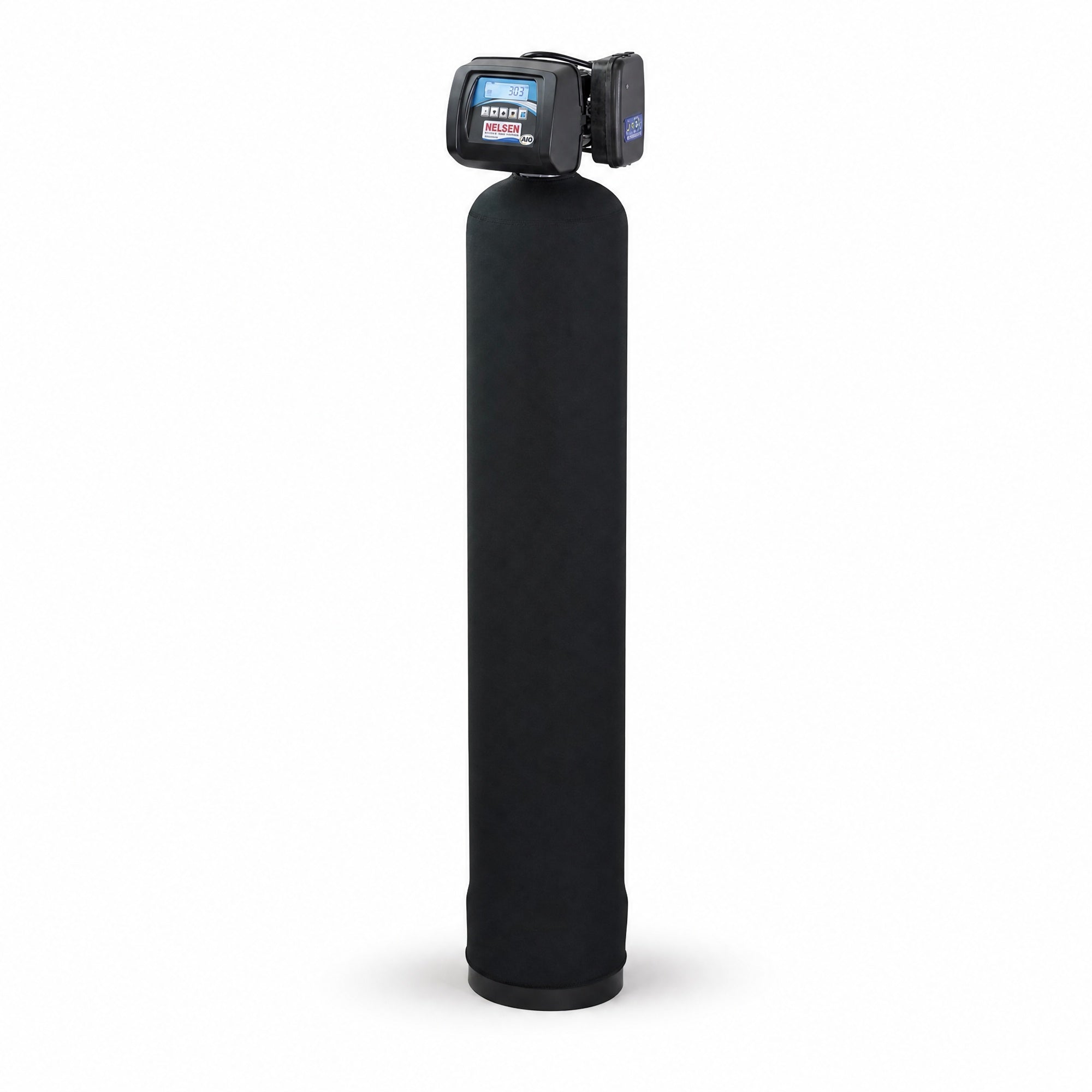

Iron filter with an Ozotech ozone generator on a Clack-based air-injection valve: ozone sanitizes the 2.5 cu ft of Katalox Light filter media at each backwash. Most wells do not need ozone, so send Aidan your water test first.

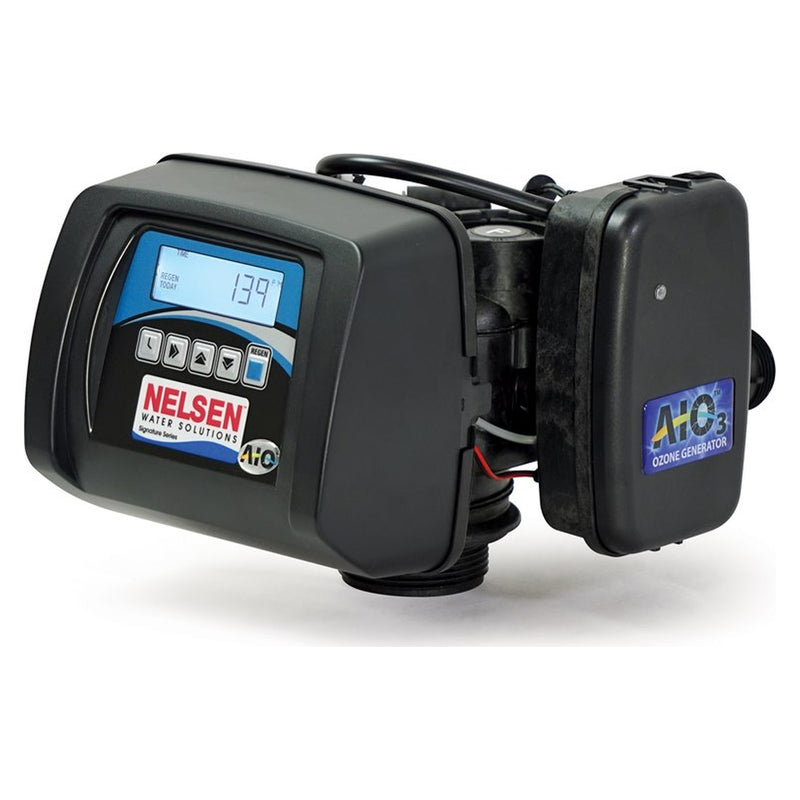

Close-up of the air-injection control valve with the ozone generator mounted on the back in its weatherproof enclosure

Bag of Katalox Light iron filter media, which ships separately and is loaded into the tank at install

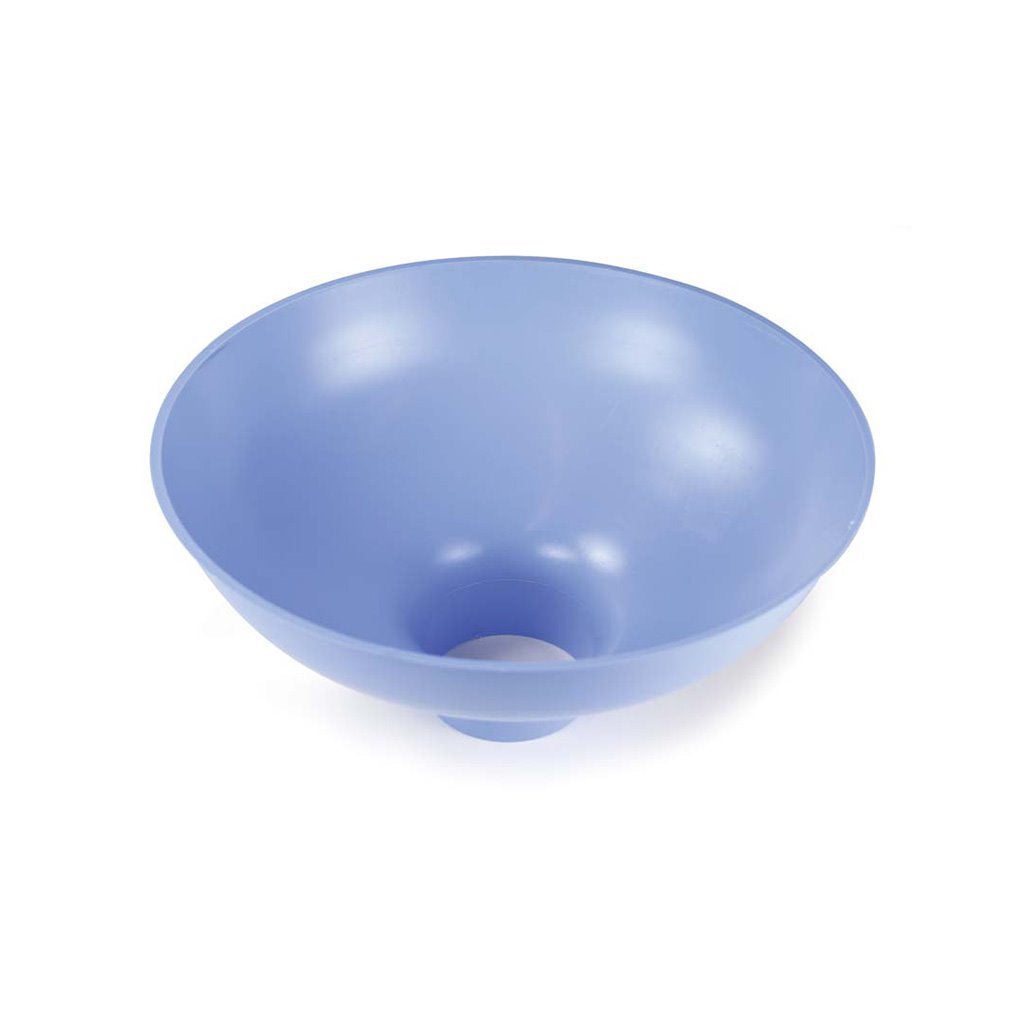

Blue plastic fill funnel included for loading the media into the tank

★★★★★ 10,000+ Homeowners Served

Ozone sanitizes the filter media at each backwash

Ozone Iron Filter for Well Water, 2.5 cu ft

Clack-Based Air Injection + Ozotech Ozone | 2.5 cu ft Katalox Light | 13 x 54 Tank

Free Shipping to the Lower 48

Arrives ... to

Tank Size

1.5 cu ft $2,495.00 2.5 cu ft $2,695.00

Not sure which size? Call Aidan at 800-460-5810

In Stock. Ships from Ohio warehouse by

Not sure you need the ozone? Text me your water test (iron, manganese, hydrogen sulfide, pH and hardness), how many people live in the house, and what you see in the toilet tank. I'll tell you whether this ozone model or our standard iron filter fits, and what goes with it.

Call Call Text Text Chat Email Email

What Aidan usually recommends

Orange or brown stains, a metallic taste, black stains	Usually our standard iron filter with Katalox Light: 1.5 cu ft, $2,095 or 2.5 cu ft, $2,495.
A rotten egg smell (hydrogen sulfide)	Usually the standard iron filter. In Aidan's words: "It's the only thing we use now for sulfur."
Iron bacteria: slime and floating clumps in the toilet tank	Usually the standard iron filter with a UV light after it. The ozone model is the other choice; Aidan has recommended it when iron bacteria kept coming back after the well was shocked, with slime in the tanks.
Bacteria such as coliform in the water you drink	A UV light, last in line. The ozone in this filter treats the filter media during the backwash, not the water you drink.
You want ozone with your iron filter	This model. It is the only filter we sell with ozone.

Most wells do not need ozone. Send Aidan your water test before you order, and a photo of the inside of a toilet tank if you suspect iron bacteria: text 443-277-2204. He will pick between the two from your test. No test yet? Our well water test kit is $199.

What ships

✓13 x 54 inch mineral tank, shipped empty.
✓Clack-based air-injection control valve with the Ozotech ozone generator pre-wired and mounted on it.
✓Bypass valve.
✓2.5 cubic feet of Katalox Light, shipped separately and loaded into the tank at install through the funnel.
✓Fill funnel.
✓Power supply for the valve and the ozone generator (one standard outlet).

Not included

✕Drain tubing. Your plumber runs a drain line sized for the backwash flow.
✕Plumbing adapters. Your plumber supplies the adapters to match your pipe.
✕A UV light for bacteria in the drinking water, if you need one (sold separately).

It ships by freight truck, about 231 lb. Free shipping to the lower 48 states.

From the well to your taps

Water passes through an air pocket at the top of the tank, which oxidizes dissolved iron, manganese and hydrogen sulfide.
The Katalox Light bed filters out what the air oxidized, down to about 3 microns (Watch Water's rating for the media).
On its schedule (set at the factory for every other day, and adjustable), the valve backwashes: it rinses the filter media, sends that water down the drain, and draws in a fresh air pocket.
During that cycle the Ozotech ozone generator switches on, and ozone is drawn into the tank with the air. It sanitizes the filter media. In Aidan's words: "when it backwashes, it sanitizes the media bed and kills the iron bacteria."

The ozone runs only during the backwash cycle. It does not treat the water you drink while you use it; for bacteria in the drinking water, a UV light goes last. There are no chemicals to add.

Media	2.5 cubic feet of Katalox Light (Watch Water, made in Germany)
Mineral tank	13 x 54 inch, shipped empty
Control valve	Clack-based air-injection valve, with bypass valve

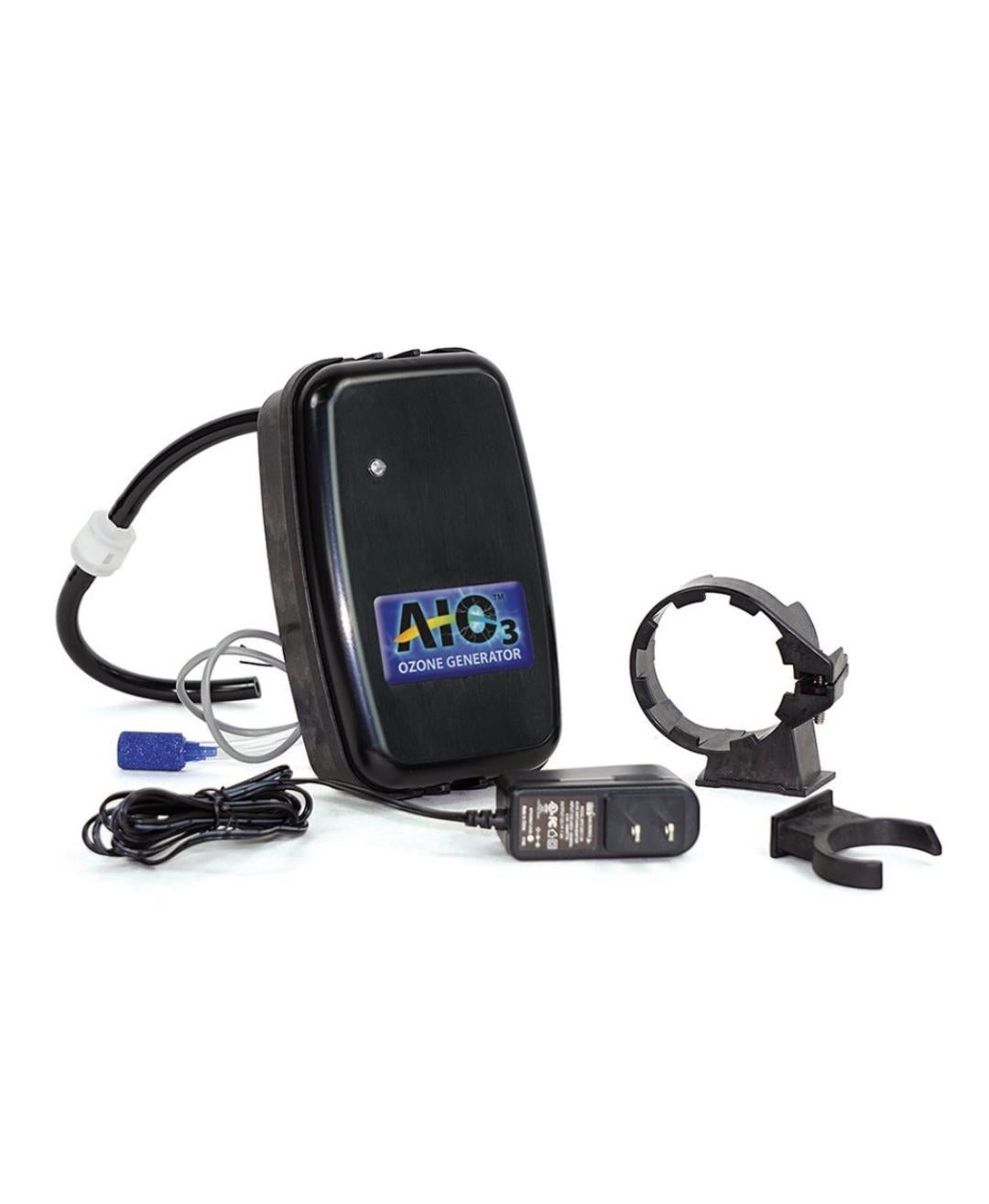

Ozone generator	Ozotech Enhanced Oxidation Generator: stainless steel corona discharge cell, all-weather enclosure, mounted on the valve
When the ozone runs	During each backwash cycle
Backwash flow	About 7 gallons per minute
Backwash schedule	Set at the factory for every other day; adjustable
Power	One standard outlet; one power supply runs the valve and the ozone generator
pH	Works best near pH 8. If yours is lower, send Aidan your test before you order.
Filtration	Down to about 3 microns (Watch Water's rating for the media)
Chemicals	None to add
Yearly service	Clean the ozone cell; replace the two ozone check valves
Media life	About 6 to 8 years
Sizing	Aidan picks the size from your water test
Shipping weight	About 231 lb, by freight truck

Who installs it

We recommend having a plumber install it: about 2 to 3 hours, typically about $800. It is one backwashing tank. Plumbing it in is an inlet and an outlet on the bypass valve; the part that takes planning is the drain line, sized for the backwash flow, with an air gap to a floor drain, standpipe or utility sink. It also needs a standard outlet near the tank for the power supply, which runs the valve and the ozone generator.

Aidan supports your plumber by phone at 800-460-5810. If you'd rather do it yourself, text Aidan at 443-277-2204 with any questions.

Where it goes

After the well's pressure tank.
After a 5 micron sediment filter.
This iron filter.
A water softener, if your water is hard.
A UV light last, if you need one for bacteria.

If your pH is low, an acid neutralizer goes in too, and Aidan sets its place from your test. The box has little or no install paperwork, because the maker expects a plumber or dealer to install it, so call or text Aidan with any setup question.

Once a year

✓Clean the ozone generator's cell (its corona discharge cell).
✓Replace its two small ozone check valves. The maker's manual says skipping them raises the chance of one failing and leaking.

Every 6 to 8 years

✓Replace the Katalox Light. How long it lasts depends on your iron and how much water the house uses.

Nothing else on a schedule

✓No chemicals to add or refill.
✓The backwash schedule can be changed: a small household that uses little water can backwash less often.

Text Aidan at 443-277-2204 when the yearly service is due, or if stains or a smell come back. Help is 7 days a week, 8 AM to 5 PM Eastern.

Iron bacteria in well water: signs, testing and the fix Iron filters for well water: the complete guide How an iron filter works All iron and sulfur filters UV lights for bacteria Well water test kit ($199)

The Ozone Version of Our Air-Injection Iron Filter

Katalox Light filter media, a Clack-based air-injection valve, and an Ozotech ozone generator that sanitizes the filter media at each backwash.

This is the ozone version of our air-injection iron filter. In service, an air pocket at the top of the 13 x 54 inch tank oxidizes iron, manganese and hydrogen sulfide, and 2.5 cubic feet of Katalox Light filters them out. When it backwashes, an Ozotech ozone generator mounted on the valve draws ozone into the tank, which sanitizes the filter media. In Aidan's words: "when it backwashes, it sanitizes the media bed and kills the iron bacteria."

Most wells do not need ozone. Aidan's usual pick for iron, manganese and sulfur is our standard 2.5 cu ft iron filter, which costs $200 less. He offers this model to buyers who want ozone, and has recommended it for iron bacteria that kept coming back after the well was shocked, with slime in the tanks. For bacteria in the water you drink, a UV light goes last either way.

The tank ships empty; the Katalox Light ships separately and is loaded at install. We recommend having a plumber install it, and Aidan supports your plumber by phone. Send him your water test before you order.

✔ Ozotech Ozone Generator

✔ Ozone Sanitizes the Filter Media

✔ Katalox Light Media

✔ Clack-Based Air-Injection Valve

✔ No Chemicals to Add

Feature	This ozone filter	Standard filter (Aidan's usual pick)
Price	$2,495 (1.5 cu ft), $2,695 (2.5 cu ft)	$2,095 (1.5 cu ft), $2,495 (2.5 cu ft)
Control valve	Clack-based, air injection	Fleck 2510 AiQ, air injection
Ozone generator	Ozotech, runs at each backwash	None
Media	Katalox Light	Katalox Light
Yearly upkeep	Clean the ozone cell, replace two check valves	Typically none
Aidan's usual pick for	Buyers who want ozone; iron bacteria that keeps coming back	Most iron, manganese and sulfur; iron bacteria with a UV light after it

Price

This ozone filter $2,495 (1.5 cu ft), $2,695 (2.5 cu ft)

Standard filter (Aidan's usual pick) $2,095 (1.5 cu ft), $2,495 (2.5 cu ft)

Control valve

This ozone filter Clack-based, air injection

Standard filter (Aidan's usual pick) Fleck 2510 AiQ, air injection

Ozone generator

This ozone filter Ozotech, runs at each backwash

Standard filter (Aidan's usual pick) None

Media

This ozone filter Katalox Light

Standard filter (Aidan's usual pick) Katalox Light

Yearly upkeep

This ozone filter Clean the ozone cell, replace two check valves

Standard filter (Aidan's usual pick) Typically none

Aidan's usual pick for

This ozone filter Buyers who want ozone; iron bacteria that keeps coming back

Standard filter (Aidan's usual pick) Most iron, manganese and sulfur; iron bacteria with a UV light after it

✔ Help after you buy

Aidan reviews your water test and supports your plumber by phone. The box has little install paperwork, so call or text with any question about setup, the backwash schedule or the yearly ozone service.

📞 Call Us 800-460-5810

✉️ Email Support support@midatlanticwater.net

🕒 Live Hours 7 days a week, 8 AM to 5 PM Eastern

Frequently Asked Questions

Most wells do not need ozone. For iron, manganese and sulfur, Aidan's usual pick is our standard iron filter with Katalox Light: it costs less (1.5 cu ft, $2,095; 2.5 cu ft, $2,495) and he prefers its Fleck valve, which he calls "better and easier to work on" and quieter when it backwashes.

He offers the ozone model to buyers who want ozone, and has recommended it for iron bacteria that kept coming back after the well was shocked, with slime in the tanks. Text your water test to Aidan at 443-277-2204 and he will pick between the two.

No. The ozone generator runs during the backwash, not while you use water, and it sanitizes the filter media inside the tank. For bacteria in the water you drink, such as coliform, a UV light goes last, after the iron filter and any softener.

A Clack-based air-injection control valve, with the Ozotech ozone generator mounted on it and a bypass valve. Ozotech makes the generator to work with Clack valves, so this model does not use the Fleck 2510 AiQ valve on our standard iron filters. The backwash schedule is set at the factory for every other day.

Send Aidan your water test before you order. He checks your iron, manganese, hydrogen sulfide and pH against this unit and tells you whether it fits or whether the standard iron filter is the better choice. It works best near pH 8; if your pH is low, an acid neutralizer goes in too, and Aidan sets its place from your test. No test yet? Our well water test kit is $199.

Once a year, the ozone generator's cell is cleaned and its two small ozone check valves are replaced; the maker's manual says skipping the check valves raises the chance of one failing and leaking. The Katalox Light is replaced about every 6 to 8 years. There are no chemicals to add. Text Aidan at 443‑277‑2204 when the yearly service is due.

We recommend one. It is one backwashing tank: an inlet and an outlet, a drain line sized for the backwash flow with an air gap to a floor drain, standpipe or utility sink, and a standard outlet near the tank for the power supply that runs the valve and the ozone generator. A plumber takes about 2 to 3 hours, typically about $800. Aidan supports your plumber by phone at 800‑460‑5810. If you'd rather do it yourself, you can; text Aidan at 443‑277‑2204 with any questions.

Ozone Iron Filter for Well Water, 2.5 cu ft

Ozone Iron Filter for ... $2,695.00

Most wells do not need ozone

For iron, manganese and sulfur, Aidan's usual pick is our standard 2.5 cu ft iron filter ($2,495). The ozone model is for buyers who want ozone, and for iron bacteria that keeps coming back after the well was shocked. Send Aidan your water test first.

Up front, before your plumber

No Iron Filter

$0 Up Front

❌ Lifespan: Nothing to replace; the iron stays
❌ Result: Whatever stains, smell or slime you have stays
❌ Support: None

Iron stays in the water

Best Long-Term Value

This 2.5 cu ft Ozone Iron Filter

$2,695 Up Front

✅ Lifespan: Katalox Light every 6 to 8 years; ozone cell serviced yearly
✅ Result: Iron and manganese filtered out; filter media sanitized at each backwash
✅ Support: Lifetime USA Support

Plus your plumber's install

Not sure you need the ozone? Our standard 2.5 cu ft iron filter is $2,495, with the same Katalox Light and no yearly ozone service. Text your test to Aidan at 443‑277‑2204 and he will tell you which one fits.

What you are paying for

The Ozotech ozone generator, pre-wired and mounted on the control valve. It runs during each backwash and sanitizes the filter media.
2.5 cubic feet of Katalox Light for the 13 x 54 inch tank, shipped separately and loaded at install.
A Clack-based air-injection valve with its bypass valve, and a fill funnel.
Aidan's help reading your water test before you buy, and supporting your plumber by phone at 800‑460‑5810.

500+ Systems Installed

After 30 years of testing acidic water solutions, the data led us to this exact system. With a track record of 1,000+ successful installations, we have the evidence to offer a true risk-free guarantee based on results, rather than an empty marketing gimmick.

The Industry "Return Policy" Trap +

Most water filter companies offer standard "Money Back Guarantees" or return policies fully knowing that you aren't going to drain, package, and pay heavy freight costs to ship a 600lb wet tank back to them. It's an illusion of safety. Our guarantee requires zero return shipping.

How Our Real Guarantee Works

It Fails to Remove The Iron, Sulfur, or Manganese

The system does not remove the Iron, Sulfur, or Manganese within EPA standards.

Aidan Troubleshoots With You

You'll work directly with the expert who designed your system to ensure it's set up correctly for your specific well chemistry.

You Get Refunded

If it still doesn't solve the problem, we refund you entirely.
No return shipping required.

Not sure if this is the perfect system? Don't guess. If you aren't 100% sure this is the correct size for your well, text me your water test or call me directly. I'll personally review it.
