6-Stage High-Flow Whole House Well Water Filter System (5+ Bath)

Name: 6-Stage High-Flow Whole House Well Water Filter System (5+ Bath)
Brand: Mid Atlantic Water
Price: 9495.0 USD
Availability: InStock

Oversized 6-stage system for 5+ bathroom homes. 3.5 CF iron and AN tanks, 80K-grain softener, carbon, and UV. Built for high demand.

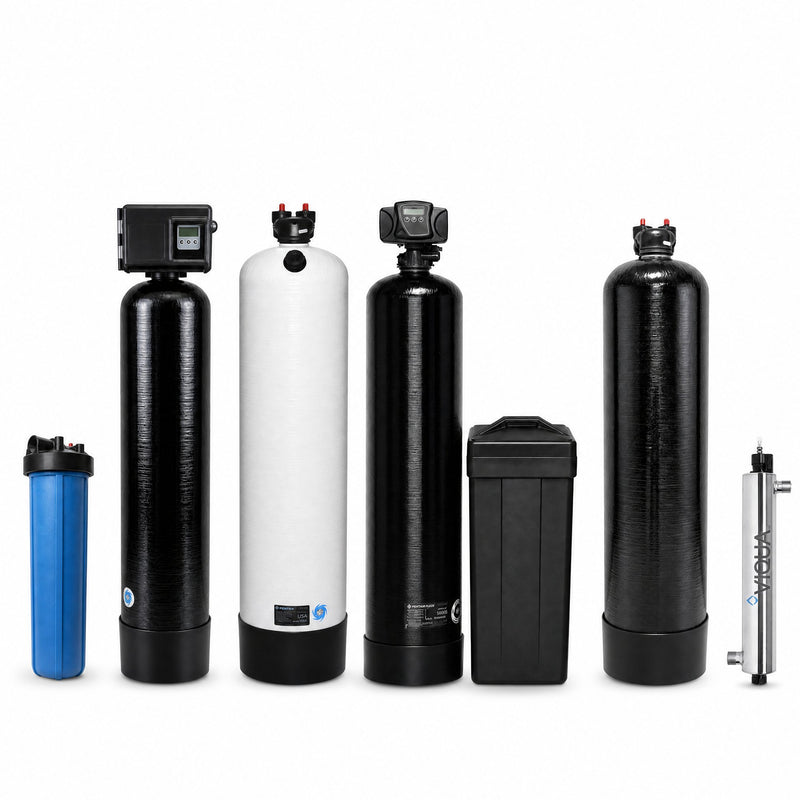

Large Home Well Water System: 6-stage oversized well water treatment for homes with 5+ bathrooms, including 3.5 cubic foot iron filter, 3.5 cubic foot acid neutralizer, 80,000 grain water softener, whole-house carbon filter, and Viqua VH410 UV sterilizer

Complete Guide to Whole House Water Filters

Step 1Watch This Before Buying Meet Aidan and get a breakdown of how these systems work. Watch Video

Step 2Order a Mail-In Lab Test Your water chemistry determines the right equipment and size. Without test results, you're guessing. Order Test$199

Step 3Save Install Instructions Hand this to your plumber. Print, share, or use it for DIY. View Instructions

Chat With Aidan Feeling overwhelmed? Call Aidan. He'll tell you exactly what your house requires, even if it's less than what's on this page.

Call Call Text Text Chat Email Email

★★★★★ 10,000+ Homeowners Served

NSF-Certified Components

🇺🇸 Made in USA

6-Stage High-Flow Whole House Well Water Filter System (5+ Bath)

Oversized 6-stage system for 5+ bathroom homes. 3.5 CF iron and AN tanks, 80K-grain softener, carbon, and UV. Built for high demand.

Step 1Watch This Before Buying Meet Aidan and get a breakdown of how these systems work. Watch Video

Step 2Order a Mail-In Lab Test Your water chemistry determines the right equipment and size. Without test results, you're guessing. Order Test$199

Step 3Save Install Instructions Hand this to your plumber. Print, share, or use it for DIY. View Instructions

Chat With Aidan Feeling overwhelmed? Call Aidan. He'll tell you exactly what your house requires, even if it's less than what's on this page.

Call Call Text Text Chat Email Email

You save $475.00 as a complete system

Free Shipping Included

Arrives ... to

In Stock — Ships from Ohio warehouse by

Big Home or High Demand? Most people calling about this system have a large home and know standard-sized equipment will not keep up. Aidan will review your water test results, ask about your household size and peak usage, and confirm whether 3.5 CF tanks and the 80K softener are the right fit. If your home is smaller and the standard Ultimate system works, he will tell you and save you $1,200. No pressure, no upsell.

Call Call Text Text Chat Email Email

Stage 1 Big Blue Sediment Filter

✓ 4" x 20" Big Blue filter housing with mounting bracket
✓ 5-micron sediment cartridge included
✓ Filter wrench for easy cartridge changes

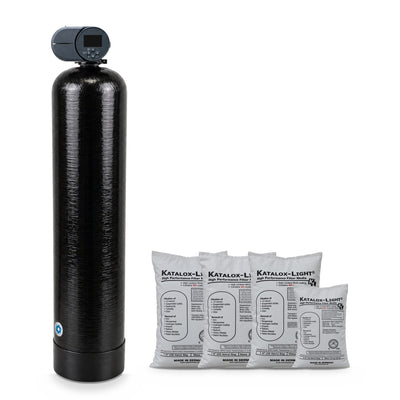

Stage 2 Iron and Sulfur AIO Filter (3.5 Cubic Foot)

✓ Fleck 2510AIO air-injection valve with electronic demand control
✓ 16" x 65" Vortech mineral tank (gravel-free)
✓ 3.5 cubic feet of Katalox-Light media
✓ Handles up to 10 ppm iron, 3 ppm manganese, 5 ppm H2S sulfur
✓ Bypass valve with 1" connections
✓ Designed for homes running 4+ bathrooms simultaneously

Stage 3 Acid Neutralizer (3.5 Cubic Foot Non-Backwashing)

✓ Clack C1190 non-backwashing upflow valve
✓ 16" x 65" Vortech mineral tank
✓ 350 lbs of calcite media (7 x 50 lb bags)
✓ No electricity or drain connection needed
✓ Fillport for easy calcite additions

Stage 4 Water Softener (80,000 Grain)

✓ Fleck 5600SXT electronic demand valve (NSF certified)
✓ 16" x 65" Vortech mineral tank
✓ 2.5 cubic feet of 10% crosslink resin
✓ 18" x 33" salt brine tank with safety float
✓ 1" stainless steel bypass valve (pre-installed)
✓ Sized for 5+ bathroom homes with high simultaneous demand

Stage 5 Carbon Filter (2.5 Cubic Foot Non-Backwashing)

✓ Clack C1190 non-backwashing upflow valve
✓ 13" x 54" Vortech mineral tank
✓ 2.5 cubic feet of activated carbon media
✓ No electricity or drain connection needed

Stage 6 Viqua VH410 UV Sterilizer

✓ 18 GPM stainless steel UV chamber
✓ UV lamp and quartz sleeve included
✓ Controller with lamp life countdown
✓ 99.99% bacteria and virus disinfection

Included With Every System

✓ Free shipping to all lower 48 states (ships freight on pallet)
✓ Fill funnel for calcite, carbon, and resin
✓ 7-day expert support from Aidan at 800-460-5810

Iron and Sulfur AIO Filter (3.5 CF)

Model	Fleck 2510AIO Air-Injection Oxidation
Media	Katalox-Light -- 3.5 cubic feet
Tank	16" x 65" Vortech (gravel-free)
Iron Capacity	Up to 10 ppm
Sulfur Capacity	Up to 5 ppm H2S
Service Flow	Up to 14 GPM continuous
Connections	1" male threaded
Drain	Required (backwashing system)
Electricity	120V outlet required

Acid Neutralizer (3.5 CF)

Model	Clack C1190 Non-Backwashing Upflow
Media	Calcite -- 350 lbs (7 bags)
Tank	16" x 65" Vortech (gravel-free)
pH Range	5.5 - 6.9 (raises to ~7.0)
Service Flow	Up to 14 GPM continuous
Electricity	None required
Drain	None required

Water Softener (80,000 Grain)

Model	Fleck 5600SXT Electronic Demand
Resin	10% crosslink -- 2.5 cubic feet
Tank	16" x 65" Vortech (gravel-free)
Salt Tank	18" x 33" with safety float
Service Flow	Up to 14 GPM continuous
Bypass	1" stainless steel, pre-installed
Power Backup	48-hour capacitor

Carbon Filter (2.5 CF)

Model	Clack C1190 Non-Backwashing Upflow
Media	Activated carbon -- 2.5 cubic feet
Tank	13" x 54" Vortech (gravel-free)
Electricity	None required
Drain	None required

UV Sterilizer

Model	Viqua VH410
Flow Rate	18 GPM (40 mJ/cm2 dose)
Chamber	Stainless steel
Electricity	120V outlet required
Lamp Life	~9,000 hours (annual replacement)

Sediment Pre-Filter

Housing	4" x 20" Big Blue
Cartridge	5-micron sediment (included)
Replacement	Every 3-6 months depending on sediment load

All tanks and valves made in the USA. 5-year valve warranty, 10-year tank warranty on all systems.

Call before you install. With 6 oversized systems, placement and plumbing order matter even more. The 16" x 65" tanks are larger than standard, so confirm clearance first. Aidan walks customers through the layout over the phone -- call 800-460-5810 with your basement or utility room dimensions.

Installation Order (From Well to House)

Pressure tank (your existing tank)
Sediment filter (Big Blue housing)
Iron/sulfur AIO filter (3.5 CF -- requires 120V outlet + drain line)
Acid neutralizer (3.5 CF -- no power, no drain)
Water softener (80K grain -- requires 120V outlet + drain line)
Carbon filter (2.5 CF -- no power, no drain)
UV sterilizer (requires 120V outlet, install last before house entry)

Electrical Requirements

Three systems need power: the iron filter, the water softener, and the UV sterilizer. You will need 3 available 120V outlets in your utility area. The acid neutralizer, carbon filter, and sediment filter are fully passive.

Drain Requirements

The iron filter and water softener need drain lines for backwash/regeneration. Route 1/2" tubing to a floor drain, utility sink, or outside (max 20 feet each). The 3.5 CF iron filter uses more backwash water than the standard 2.5 CF, so confirm your drain can handle 5-7 GPM during regeneration.

Space Planning

Plan for roughly 10-12 linear feet of wall space. The three 16" x 65" tanks (iron, AN, softener) are each about 16 inches in diameter and 5.5 feet tall. The carbon filter is standard size (13" x 54"). The UV sterilizer mounts horizontally on the wall. Confirm ceiling clearance for the 65" tall tanks (you need room to service the valve on top).

Time Estimate

Most homeowners complete the full install in 8-12 hours over a weekend. If you hire a plumber, they can call Aidan at 800-460-5810 for programming help with the Fleck valves.

Sediment Filter Every 3-6 months

Replace the 5-micron cartridge when flow drops or it looks dirty. Unscrew the housing with the included wrench, swap the cartridge, and reinstall.

Iron / Sulfur AIO Filter (3.5 CF) Minimal

The Fleck 2510AIO backwashes automatically on a schedule you set during installation. Katalox-Light media lasts 7-10+ years under normal conditions. No media changes unless iron levels are extreme.

Acid Neutralizer (3.5 CF) Every 12-18 months

Add calcite through the fillport when the media level drops to about 2/3 full. The 3.5 CF tank holds more media so refills may stretch slightly longer than standard systems. Calcite is available in 50 lb bags.

Water Softener (80K) Monthly salt check

Keep the brine tank at least 1/4 full with salt. Larger homes typically go through a 40 lb bag every 3-6 weeks depending on hardness and usage. The Fleck 5600SXT regenerates automatically based on usage.

Carbon Filter Every 3-5 years

Non-backwashing carbon eventually exhausts. When taste or odor returns, replace the activated carbon media (pour out old, pour in new through the fillport).

UV Sterilizer Annual lamp swap

Replace the UV lamp once a year (the controller counts down lamp hours). Clean the quartz sleeve during replacement. Replacement lamps available here.

Questions about maintenance? Call or text 800-460-5810, available 7 days a week.

What homeowners are saying

"We have a 6 bathroom house and the standard systems were not keeping up. Aidan suggested the larger tanks and the difference is night and day." ★★★★★

Michael R., Verified Buyer

"Aidan was incredibly helpful on the phone. He walked me through exactly what I needed for my well." ★★★★★

Steven P., Verified Buyer

"The whole system works perfectly. Water tested neutral pH and soft for the first time in 15 years." ★★★★★

Daniel B., Verified Buyer

What's In This Package

Installed in this order on your main water line.

Stage 1

20" Big Blue Sediment Filter Kit

Traps rust, sand, and particulate before it reaches the rest of the system

$195.00 individually

View this system

Stage 2

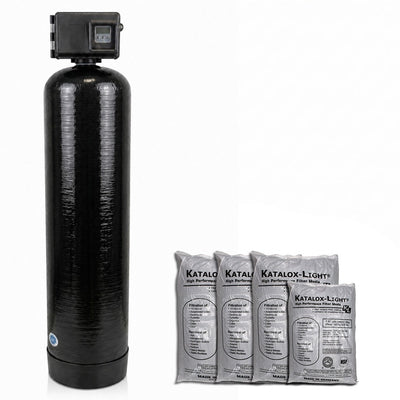

Fleck 2510AIO 3.5 Cubic Foot Advanced Iron Filter (Katalox-Light™) (AIO™ Air Injection)

Removes iron, manganese, and sulfur smell (high-flow homes)

$2,895.00 individually

View this system

Stage 3

Clack 3.5 Cubic Foot Vortech Non Backwashing Acid Neutralizer

Corrects low pH / acidic well water using calcite (high-flow)

$1,695.00 individually

View this system

Stage 4

Fleck 5600SXT 80,000 Grain Electronic Demand Deluxe Water Softener

Removes hardness minerals (sized for large / high-demand homes)

$2,495.00 individually

View this system

Stage 5

Clack 2.5 Cubic Foot, Non Backwashing Whole House Carbon Filter

Polishes taste, odor, chlorine, and VOCs

$1,695.00 individually

View this system

Stage 6

Viqua VH410 UV System

Disinfects water with UV light at high flow rates

$995.00 individually

View this system

Purchased separately: $9,970.00

Complete system package: $9,495.00

You save $475.00 when purchased as a complete system

Video Guides

Watch our well water treatment guides has 32 years of industry experience.

Complete Guide to Well Water Filtration Systems

Best Sediment Filter for Well Water

Iron Filters for Well Water: The Complete Guide

Acid Neutralizer for Well Water: The Complete Guide

Best Water Softener for Well Water

Best Whole House Carbon Filter

Best UV Light for Well Water: Viqua VH410 Review

Why Choose the Large Home System?

Oversized Tanks for Homes That Run Everything at Once

Big homes have big flow demands. When 4 showers, a dishwasher, and a washing machine are all running at once, standard-sized treatment tanks become a bottleneck. Pressure drops, iron breaks through, and the softener runs out of capacity. This system solves that problem with oversized components. The iron filter and acid neutralizer use 3.5 cubic foot tanks (vs. standard 2.5 CF) to handle 14+ GPM without flow restriction. The 80,000-grain softener (vs. standard 64K) goes longer between regeneration cycles so it never runs out mid-week in a large household. Same 6-stage treatment sequence as our Ultimate system: sediment, iron removal, pH correction, softening, carbon polish, UV disinfection. Same expert support. Just bigger, for homes that need more capacity. Free shipping to the lower 48 on pallet.

✔ 6-Stage System

✔ 3.5 CF Oversized Tanks

✔ 80,000 Grain Softener

✔ High-Flow Design

✔ All Media Included

✔ Free Shipping

✔ 7-Day Expert Support

Feature	Our System	Others
System Count	✔ 6 Matched Stages	2-3 Mismatched Units
Iron Filter Size	✔ 3.5 CF Katalox-Light (14 GPM)	1.5-2.5 CF (8-12 GPM)
pH Correction	✔ 3.5 CF Clack Non-Backwashing	1.5 CF or Often Missing
Softener Capacity	✔ 80,000 Grain / 10% Crosslink	32-48K / Standard 8% Resin
Service Flow Rate	✔ 14+ GPM Across All Stages	8-10 GPM (Bottlenecks at Peak)
Carbon Filtration	✔ 2.5 CF Whole-House Tank	Small Under-Sink Only
UV Disinfection	✔ Viqua VH410 (18 GPM)	Often Not Included
Expert Support	✔ 7-Day Phone + Text + Email	Limited or None
Warranty	✔ 5-Year Valves + 10-Year Tanks	1-Year Limited

System Count

✅ Us 6 Matched Stages

❌ Them 2-3 Mismatched Units

Iron Filter Size

✅ Us 3.5 CF Katalox-Light (14 GPM)

❌ Them 1.5-2.5 CF (8-12 GPM)

pH Correction

✅ Us 3.5 CF Clack Non-Backwashing

❌ Them 1.5 CF or Often Missing

Softener Capacity

✅ Us 80,000 Grain / 10% Crosslink

❌ Them 32-48K / Standard 8% Resin

Service Flow Rate

✅ Us 14+ GPM Across All Stages

❌ Them 8-10 GPM (Bottlenecks at Peak)

Carbon Filtration

✅ Us 2.5 CF Whole-House Tank

❌ Them Small Under-Sink Only

UV Disinfection

✅ Us Viqua VH410 (18 GPM)

❌ Them Often Not Included

Expert Support

✅ Us 7-Day Phone + Text + Email

❌ Them Limited or None

Warranty

✅ Us 5-Year Valves + 10-Year Tanks

❌ Them 1-Year Limited

✔ Got a Question About Your System?

Whether you need help with installation order, plumbing layout, valve programming, media refills, or troubleshooting any of the 6 stages, Aidan is available 7 days a week. Real answers from someone who has been doing this for 29+ years.

📞 Call Us 800-460-5810

✉️ Email Support support@midatlanticwater.net

🕒 Live Hours 7 days a week, 8am-5pm Eastern

Frequently Asked Questions

Flow rate. In a home with 5+ bathrooms, you can easily run 3-4 fixtures simultaneously during peak hours (morning showers, dishwasher, laundry). Standard 2.5 CF tanks handle about 10-12 GPM before pressure drops. The 3.5 CF tanks in this system handle 14+ GPM without bottlenecking. If your home is smaller (3-4 bathrooms), the Ultimate Well Water System with 2.5 CF tanks is a better fit and saves $1,200.

Plan for 10-12 linear feet of wall space. The three large tanks (iron filter, acid neutralizer, softener) are 16 inches in diameter and 5.5 feet tall. Confirm ceiling clearance in your utility area, because you need room to service the valve on top of each tank. The carbon filter is standard size (13" x 54"). You will also need 3 available 120V outlets and drain access for the iron filter and softener.

Yes, most of our customers do. The plumbing connections are the same as the standard-sized systems. The main difference is weight: the 3.5 CF tanks are heavier, so plan to have a second person help you stand them upright and position them. Aidan walks people through the full installation over the phone, 7 days a week. Plan 8-12 hours over a weekend.

Tank size and softener capacity. The Ultimate uses 2.5 CF iron and AN tanks with a 64K-grain softener, which is right for most homes (2-4 bathrooms). This Large Home system uses 3.5 CF iron and AN tanks with an 80K-grain softener, designed for homes with 5+ bathrooms that run many fixtures at once. Same 6 stages, same treatment order, same expert support. The difference is flow capacity.

The biggest recurring items are: salt for the softener (a 40 lb bag every 3-6 weeks depending on usage), calcite for the acid neutralizer (top off every 12-18 months), sediment filter cartridges (every 3-6 months), and the UV lamp (once a year). The iron filter media and carbon media last years before needing replacement. None of these tasks are complicated. Call us if you need help.

Call us at 800-460-5810 and we will build a custom quote that excludes whatever you already own. If you already have a water softener but need the oversized iron filter and acid neutralizer, we do that regularly. We can also confirm whether your existing systems are sized right for your flow demand.

6-Stage High-Flow Whole House Well Water Filter System (5+ Bath)

6-Stage High-Flow Whol... $9,495.00

What Happens With Undersized Systems

Budget whole-house filter bundles cut corners where it counts: undersized tanks that cannot keep up with real household flow rates, cheap resin that degrades in a few years, timer-based regeneration that wastes salt and water, and partial media fills that need immediate topping off.

For a large home, the consequences are worse. Undersized tanks drop pressure the moment multiple showers run simultaneously. The iron filter cannot regenerate fast enough. The softener runs out of capacity halfway through the week. And when you call the seller for help, nobody picks up.

The Real Cost Comparison

Standard-Size 'Whole House' Bundle

$5,000-7,000

❌ Lifespan: Fails in 3-4 years
❌ Result: Frequent repairs, poor water quality, leaks
❌ Support: None

$1.50-2.00/day (pressure drops, premature media exhaustion)

Best Long-Term Value

Our Large Home System

$9,495

✅ Lifespan: Lasts 15+ years
✅ Result: Done right the first time, peace of mind
✅ Support: Lifetime USA Support

$0.87/day over a 30-year system life

When you factor in the oversized components, full media fills, and unlimited expert support, this system delivers better long-term value than undersized alternatives that bottleneck at peak demand, need more frequent regeneration, waste more salt, and leave you without help when something needs adjustment. The 3.5 CF tanks alone give you 40% more media contact time than standard 2.5 CF systems.

What You Get With Our System

This package uses oversized professional-grade components designed for high-demand homes: 3.5 cubic foot Katalox-Light iron tanks, 3.5 CF calcite acid neutralizer tanks, and an 80,000-grain water softener with 10% crosslink resin. All Fleck 2510AIO and 5600SXT valves, Clack C1190 non-backwashing valves, and Viqua VH410 UV rated for 18 GPM.

You also get Aidan on the phone 7 days a week. Before the purchase, during installation, and for the life of your system. With 6 oversized systems, having someone who knows the exact configuration you installed is worth more than most people realize.

10,000+ Systems Installed

455+ Verified Reviews

29+ Success Rate

After 29+ years of selling and supporting water treatment systems, we know what works for large homes. This is our highest-capacity package, built for homeowners with 5+ bathrooms who need oversized tanks to keep up with simultaneous demand. We pair proven components at the right size because that combination delivers years of trouble-free performance without pressure drops.

The Industry "Return Policy" Trap +

Most online retailers offer a return policy that requires you to ship everything back at your expense. For a 6-stage oversized system, that is 700+ pounds of wet equipment on a pallet. After paying $500+ in return freight, you often find a 15-25% restocking fee on top. It is designed to make returns impractical.

How Our Real Guarantee Works

The System Doesn't Fix Your Water

If your water test still shows problems after installation, that is on us. Every stage should be performing.

You Call Us, We Fix It

We troubleshoot with you: water test results, installation order, valve settings, flow rates. Most issues are resolved with a simple adjustment.

Full Refund, No Hassle

If we cannot resolve the issue, you get a full refund. We handle the logistics. You do not ship anything back. That is the difference between a real guarantee and a return policy.

This is the system I recommend for big homes with bad well water. When you have 5 or 6 bathrooms and everyone is showering at the same time, standard-sized tanks bottleneck. The 3.5 CF iron and AN tanks plus the 80K softener give you the flow capacity to handle peak demand without pressure drops. I have helped hundreds of large-home owners size and install these exact components.

Aidan

Call Aidan Text Aidan

Your Cart

6-Stage High-Flow Whole House Well Water Filter System (5+ Bath)

6-Stage High-Flow Whole House Well Water Filter System (5+ Bath)

Stage 1 Big Blue Sediment Filter

Stage 2 Iron and Sulfur AIO Filter (3.5 Cubic Foot)

Stage 3 Acid Neutralizer (3.5 Cubic Foot Non-Backwashing)

Stage 4 Water Softener (80,000 Grain)

Stage 5 Carbon Filter (2.5 Cubic Foot Non-Backwashing)

Stage 6 Viqua VH410 UV Sterilizer

Included With Every System

Iron and Sulfur AIO Filter (3.5 CF)

Acid Neutralizer (3.5 CF)

Water Softener (80,000 Grain)

Carbon Filter (2.5 CF)

UV Sterilizer

Sediment Pre-Filter

Installation Order (From Well to House)

Electrical Requirements

Drain Requirements

Space Planning

Time Estimate

Sediment Filter Every 3-6 months

Iron / Sulfur AIO Filter (3.5 CF) Minimal

Acid Neutralizer (3.5 CF) Every 12-18 months

Water Softener (80K) Monthly salt check

Carbon Filter Every 3-5 years

UV Sterilizer Annual lamp swap

What homeowners are saying

What's In This Package

Video Guides

Why Choose the Large Home System?

✔ Got a Question About Your System?

Frequently Asked Questions

Why the Large Home System Costs More

The Real Cost Comparison

1-Year Risk-Free Guarantee
