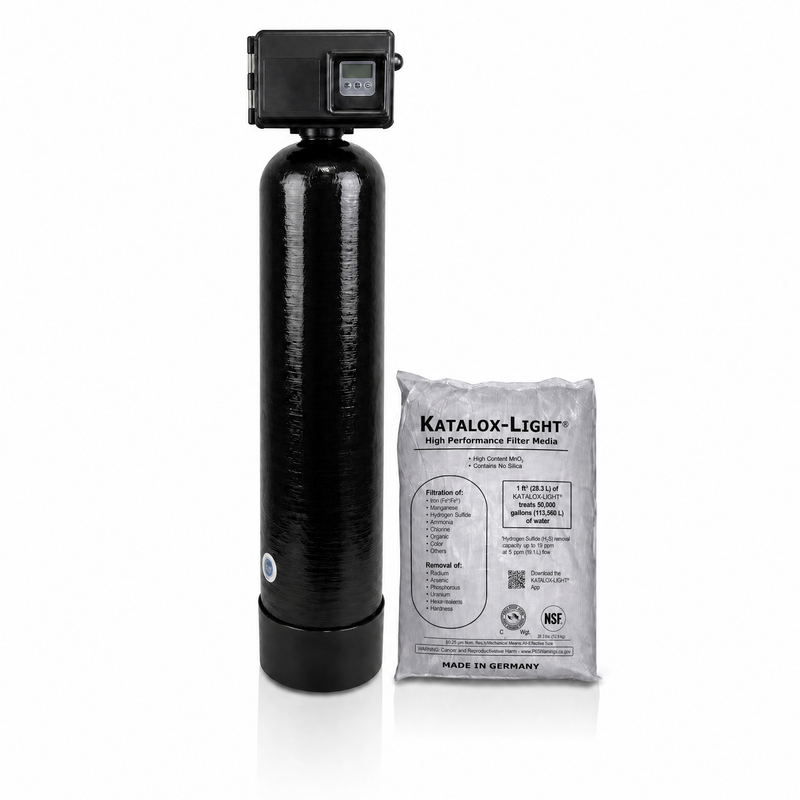

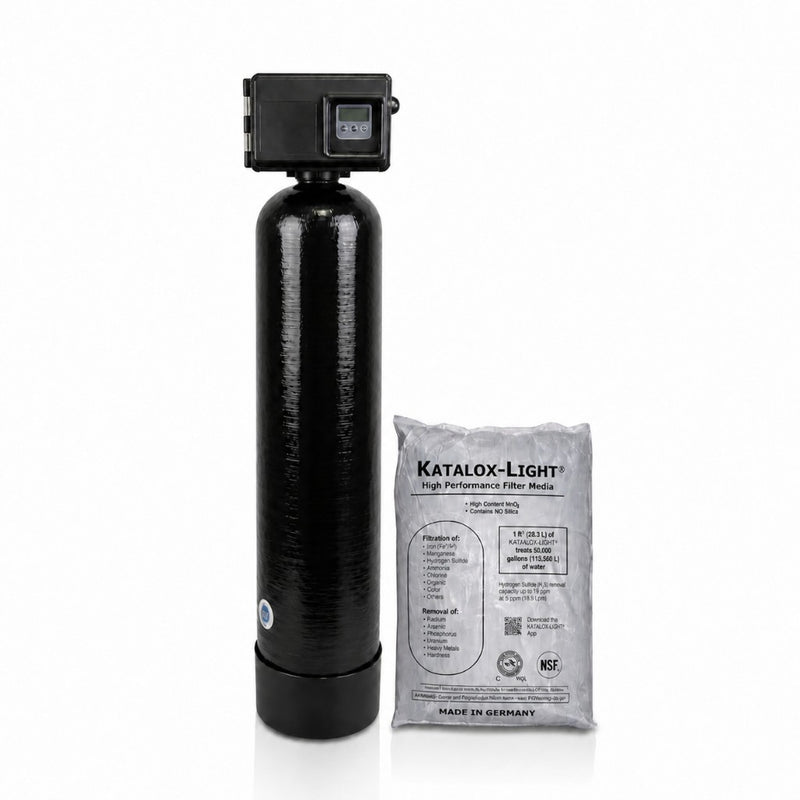

Short Iron Filter for Well Water, 1.0 cu ft (Low Ceilings)
Removes up to 30 ppm iron, 15 ppm manganese, and 10 ppm sulfur (rotten egg smell). The short size: about 52 inches tall installed, for spots where the 62 inch 1.5 will not fit. Handles up to 10 gpm; needs about 5 gpm for backwash. No chemicals added. No yearly maintenance.
Fleck 2510 AiQ Air Injection | 1.0 cu ft Katalox Light | 10x44 Vortech Tank
Short Iron Filter for Well Water, 1.0 cu ft (Low Ceilings)
Removes up to 30 ppm iron, 15 ppm manganese, and 10 ppm sulfur (rotten egg smell). The short size: about 52 inches tall installed, for spots where the 62 inch 1.5 will not fit. Handles up to 10 gpm; needs about 5 gpm for backwash. No chemicals added. No yearly maintenance.
Fleck 2510 AiQ Air Injection | 1.0 cu ft Katalox Light | 10x44 Vortech Tank
Watch before you buy
11 videos from our YouTube channel, which has 1.8 million views
Parts and supplies for the install: standard plumbing supplies such as PVC, PEX, SharkBite fittings, pipe, a nearby drain connection (drain tubing is not included), and a standard 120V outlet for the control valve. The system connects where the main water line enters the home.
We recommend installation by a licensed plumber, who handles the plumbing connections, drain hookup, and startup; Aidan supports your plumber by phone at 800-460-5810.
Estimated Cost$500 - $1,000Professional Labor & Parts
What your plumber will do: The tank arrives empty, so it is easier to carry into place. After it is set and plumbed, your plumber loads the Katalox-Light™ media through the included fill funnel, then connects the drain line and plugs the Fleck control valve into a 120V outlet.
System Model
Fleck 2510 AiQ 1.0 cu ft Iron Filter (Katalox-Light™)
Working Flow Rate
10 GPM - the maximum flow the tank can handle during normal use. Higher flow rate = less pressure drop in your home.
Backwash Flow Rate Requirement
About 5 GPM - the flow your well pump should deliver for the standard backwash. On a weaker well, Aidan can lengthen the backwash.
Household Size
One or two people with lower iron levels, where a taller tank will not fit. If the 1.5 fits, Aidan usually recommends it. Send Aidan your test.
Contaminant Removal
Up to 30 ppm Iron • 10 ppm Sulfur • 15 ppm Manganese
Dimensions
10" Diameter Tank × about 52" H Installed (the shortest in the line)
Connections
Female Threaded Inlet/Outlet on the Stainless Steel Bypass
Media Included
1.0 cu ft Katalox-Light™ Advanced Filter Media
Filtration Level
Down to 3 Microns (Sediment / Particulates)
Maintenance
Automatic Backwash • Media Life ~6-8 Years
Requirements
120V Power Outlet • Drain Line Connection
pH
Works best near pH 8. If yours is lower, send Aidan your test before you order.
Warranty
10 Yr Tank / 5 Yr Fleck Control Valve
This system uses air injection and Katalox-Light™ filtration media to remove iron, sulfur, and manganese without chemicals.
1
Air Injection
The Fleck 2510 AiQ valve creates and maintains a pocket of air at the top of the tank. As well water enters the system, it passes through this air chamber first.
2
Contaminants Oxidize
Contact with the air causes dissolved iron, sulfur (rotten egg odor), and manganese to oxidize. This converts them from dissolved minerals into solid particles that can be filtered out.
3
Katalox-Light Filtration
The oxidized particles are captured by the Katalox-Light™ media bed, leaving your water cleaner, clearer, and odor-free.
Self-cleaning system: The Vortech tank design lifts and circulates the media during the automatic backwash cycle, flushing trapped contaminants out of the system. This keeps the media clean and working efficiently without chemicals. Katalox-Light™ media typically lasts 6–8 years depending on water usage.
Vortech® Technology uses a patented internal distributor system to maximize media contact, reduce channeling, and deliver consistent treatment across the entire tank.
The result is higher efficiency, longer media life, and reliable performance without unnecessary complexity or wasted capacity.
Certified Components
Built with NSF/ANSI 61 certified components and proven Vortech™ technology.
Assembled in USA
Assembled in the USA and shipped from Ohio. The Katalox-Light™ media is made in Germany.
5-Year Warranty
Backed by a 5-year warranty on the Fleck 2510 AiQ control valve.
10-Year Warranty
Includes a 10-year warranty on the structural Vortech™ media tank.
Tech Support
Call 800-460-5810 or text Aidan at 443-277-2204 7 Days/Week • 8am–5pm EST
Order Processing & Prep
Orders are verified and sent to the warehouse in Ohio. Your system is picked, palletized, and shrink-wrapped.
Freight Shipment
Ships by heavy freight carrier (usually R+L Carriers). You get a tracking number through your order page when it leaves the warehouse. The media can arrive in a separate delivery, and so can the tank on the 3.5 cu ft size.
Free Freight Shipping
Free shipping to the lower 48 states. For the current ship date, text Aidan at 443-277-2204 before you order.
Liftgate Delivery
The freight is delivered by liftgate truck to your driveway or curb.
Why isn't this 1-day shipping like Amazon?
Unlike a standard Amazon package, this system ships by freight on a pallet. It needs pallet handling, a tractor-trailer and a liftgate truck to arrive safely.
The 1.0 cubic foot Fleck 2510 AiQ iron filter is the shortest size in the line. It uses the same valve, air injection and Katalox-Light media as the larger sizes in a 10 by 44 inch Vortech tank, and like every size it handles up to 30 ppm of iron. The media ships in a bag and is loaded at install.
Who it fits: The 1.0 is the short size: its 10 by 44 inch tank stands about 52 inches tall with the valve, about 10 inches shorter than the 1.5, for a basement, closet or crawl space where the 62 inch 1.5 will not fit. It holds less media than the 1.5, so it suits one or two people with lower iron levels. If the 1.5 fits, Aidan usually recommends it instead. It backwashes on about 5 gpm, the same as the 1.5. Not sure which size? Call 800-460-5810 or text Aidan at 443-277-2204 with your water test, how many people live in the house and how much height you have.
Frequently Asked Questions
Many iron filters online use the same stock photos and product names, which makes them look alike, but the parts inside can differ. Before you compare prices, compare the media volume, the valve model, the bypass, the contaminant ratings, what ships, and who answers your questions after the sale. Ours use genuine Fleck valves, full media loads and NSF/ANSI 61 certified components, and Aidan supports you and your plumber by phone.
This system removes up to 30 ppm of iron, 10 ppm of sulfur, and 15 ppm of manganese, which covers the vast majority of well water issues. It uses air injection and Katalox-Light media to oxidize and filter contaminants without chemicals. If you're unsure whether it fits your water test, you can call 800-460-5810 or text Aidan, our water expert with 30+ years of experience, at 443-277-2204 for help selecting the right system.
Every size handles the same 30 ppm of iron, so the size follows your household and your well. Most homes buy the 2.5 cubic foot, sized for 4 to 10 people or any home with 4 to 5 bathrooms. Smaller households and weaker wells may fit the 1.5 or 2.0, and the 3.5 is for very large homes and irrigation off the well. Text Aidan how many people live in the house and what your well pump puts out, and he will tell you the size.
No chemicals or yearly maintenance are required. The system automatically backwashes to clean the media. The Katalox-Light media typically lasts 6–8 years depending on water usage before replacement is needed.
We recommend installation by a licensed plumber, who typically completes it in 2–3 hours. The system connects with threaded fittings, includes a bypass valve, and installs where your water line enters the home. The media ships in separate bags and is loaded at install, and drain tubing is not included. Aidan supports your plumber by phone at 800-460-5810.
Iron filters are often installed with other systems depending on your water test. For example:
Acidic water → Acid neutralizer too (Aidan sets the order from your test)
Hard water → Water softener after the iron filter
Sediment → Sediment filter before the system
If you're unsure about system order, a quick call with a water expert can confirm the right setup.
Don't let identical stock photos fool you. The cheapest option often costs you thousands more in the long run.
⚠️ The Amazon & Discount Site Illusion
Many discount retailers and Amazon sellers use the exact same manufacturer stock photos (like a Clack valve) and product titles. But behind the scenes, they drastically cut costs to offer a lower upfront price. When you buy 'cheap', you are often getting uncertified thin-walled tanks, stripped-down media quantities, and absolutely zero technical support. When things go wrong, their support vanishes.
The True Cost Over Time
Cheap Alternative
~$995 Upfront
❌Lifespan: Fails in 3-4 years
❌Result: Frequent repairs, poor water quality, leaks
❌Support: None
~ $0.91 / Day
Best Long-Term Value
Our Premium System
~$2,495 to $3,495 Upfront
✅Lifespan: Lasts 15+ years with routine media replacement
✅Result: Done right the first time, peace of mind
✅Support: Lifetime USA Support
~ $0.46 to $0.64 / Day
Do it right the first time. By investing a little more upfront, you prevent early replacement costs, plumbing repair headaches, and the frustration of poor water quality. This is without a doubt the best long-term option for your home.
What You're Actually Paying For
No Media Skimming: Every system ships with the full, correct amount of high-grade media for its tank, in separate bags that are loaded at install. Competitors frequently underfill tanks by 20-30% to cut costs, severely reducing your system's effectiveness.
Premium Structural Tanks: Our systems utilize heavy-duty, pressure-tested USA structural tanks built to last decades, preventing cracked tanks and flooded basements.
Genuine Warranties: Discount retailers are often unauthorized sellers, meaning manufacturers will void your warranty. Our systems carry full manufacturer backing.
Lifetime USA Tech Support: With over 30 years of industry experience, we actually pick up the phone. We provide exact programming settings and phone support 7 days a week.
Contact Us
800-460-5810
We're here to help.
1-Year Risk-Free Guarantee
Proven in Hundreds of Real Homes
The Policy: If it doesn’t remove your water's iron within EPA standards, we’ll refund you. No returns required.
500+Systems Installed
After 30 years of testing acidic water solutions, the data led us to this exact system. With a track record of 1,000+ successful installations, we have the evidence to offer a true risk-free guarantee based on results, rather than an empty marketing gimmick.
The Industry "Return Policy" Trap
+
Most water filter companies offer standard "Money Back Guarantees" or return policies fully knowing that you aren't going to drain, package, and pay heavy freight costs to ship a 600lb wet tank back to them. It's an illusion of safety. Our guarantee requires zero return shipping.
How Our Real Guarantee Works
1
It Fails to Remove The Iron, Sulfur, or Manganese
The system does not remove the Iron, Sulfur, or Manganese within EPA standards.
2
Aidan Troubleshoots With You
You'll work directly with the expert who designed your system to ensure it's set up correctly for your specific well chemistry.
You Get Refunded
If it still doesn't solve the problem, we refund you entirely. No return shipping required.
Not sure if this is the perfect system? Don't guess. If you aren't 100% sure this is the correct size for your well, text me your water test or call me directly. I'll personally review it.
