Acid Neutralizer Domehole Funnel
Already own one of our neutralizers? ▾
Acid Neutralizer Domehole Funnel
Already own one of our neutralizers?
Look at the shoulder of the tank
| Our complete non-backwashing Clack acid neutralizers, 1.0 to 2.5 cu ft | This funnel. Ordered since mid-2024, one came in the box. |
|---|---|
| Our complete backwashing Fleck 2510SXT acid neutralizers (1.5 to 2.5 cu ft) and Fleck 2510SXT sediment filter | This funnel. Ordered since mid-2024, one came in the box. |
| One of our neutralizers ordered before 2024, or a tank-only listing sold without calcite | This funnel, for top-offs. Most of those shipped with no side-port funnel. |
| A fill port built into the valve (a flat disc on top of it), the Clack 3.5 cu ft, the Fleck 5600SXT 1.5, or another brand's tank | Text Aidan a photo of the top of the tank before you order. |
| No fill port on the tank: carbon filters, iron filters, softeners | The Filter Media Funnel ($35), in the top opening with the valve off. |
What ships

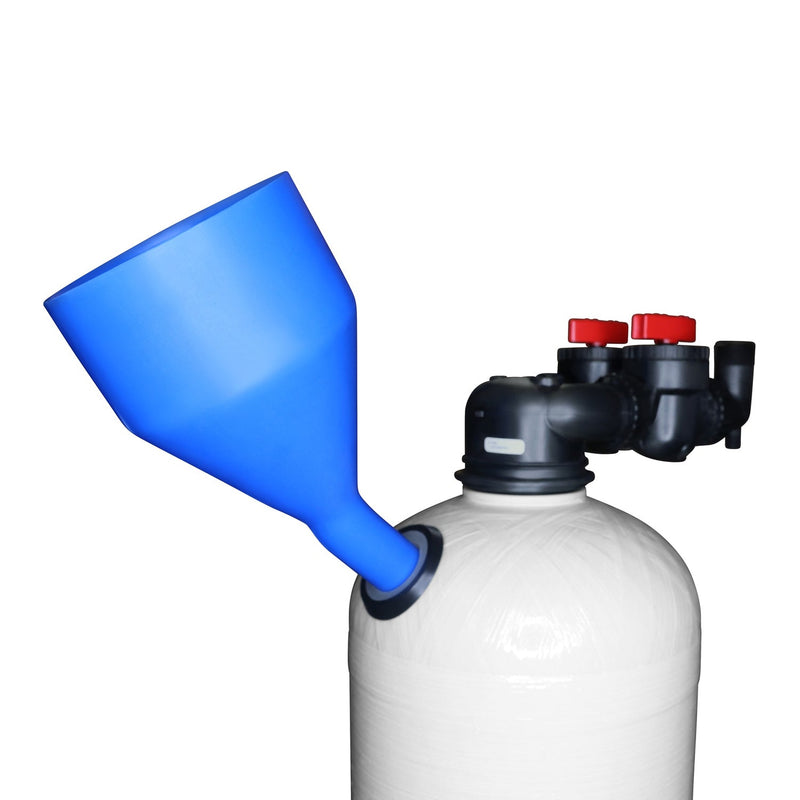

- ✓One dome hole funnel that seats in a 1-1/4 inch side fill port. We order it as Pentair's Structural dome hole funnel, part CH20851.
- ✓Its color has varied. The main photo shows a blue one; recent boxes have held a black one (second photo). Both sit in the fill port and stand on their own.
- ✓Free shipping to the lower 48 states and DC.
Not included
- ✕Calcite. Our calcite, 50 lb is $145.
- ✕The fill port cap stays with your tank. If yours cracks or goes missing, the replacement is our Dome Hole Cap ($65); the O-ring is not sold on its own.
- ✕A top-opening funnel for a first fill with the valve off: the Filter Media Funnel ($35).
A calcite top-off, valve on
- Shut off the water to the neutralizer and run a cold faucet until it stops.
- Take off the fill port cap (channel-lock pliers if it is tight) and siphon about 5 gallons of water into a bucket with a 3 foot hose, so the calcite has room.
- Seat the funnel in the port and pour until the calcite is about 10 inches below the port. Can't lift the bag? Scoop it into the funnel with a cup.
- Take the funnel out and put the cap on loosely.
- Open the water slowly. When water spits out at the cap, hand-tighten it, let the tank come up to full pressure, then give it a quarter to a half turn with the pliers. Over-tightening splits the lip of the fill port.
| Part | Pentair Structural dome hole funnel, part CH20851 (as we order it) |
|---|---|
| Fits | A 1-1/4 inch side fill port (dome hole) on the tank's shoulder |
| Used for | Calcite top-offs, and a calcite and FloMag blend, with the control valve on the tank |
| Ships with | Our complete Clack 1.0 to 2.5 cu ft and Fleck 2510SXT 1.5 to 2.5 cu ft acid neutralizers ordered since mid-2024 |
| Not for | Tanks with no side fill port: use the 2-1/2 inch Filter Media Funnel ($35) with the valve off |
| Color | Blue in the main photo; recent boxes have held a black one |
| Shipping weight | 0.55 lb |
| Price | $99, free shipping to the lower 48 states and DC |
| Returns | New and unopened, within 30 days of delivery, with approval first |
What homeowners are saying
The Service Funnel for an Acid Neutralizer's Side Fill Port
The 1-1/4 inch dome hole funnel that ships with our complete Clack 1.0 to 2.5 and Fleck 2510SXT 1.5 to 2.5 cu ft acid neutralizers ordered since mid-2024.
The funnel for topping off calcite through the side fill port, the 1-1/4 inch capped opening on the shoulder of the tank. Take the cap off, seat the funnel and pour; the valve and plumbing stay where they are. In Aidan's words, it "fits right in the hole, supports itself, and it makes it easy for you just to pour the calcite in."
Our complete Clack (1.0 to 2.5 cu ft) and Fleck 2510SXT (1.5 to 2.5 cu ft) acid neutralizers ordered since mid-2024 ship with this funnel in the box. Owners order it on its own for neutralizers from other sellers, for our systems from before 2024, and for our tank-only listings. On another brand's tank, text a photo of the fill port first: dome hole sizes differ by maker.
| Feature | This funnel ($99) | Filter Media Funnel ($35) |
|---|---|---|
| Goes into | The 1-1/4 inch side fill port | The 2-1/2 inch top opening |
| Control valve | Stays on the tank | Comes off first |
| The job | Calcite top-offs | A first fill or a full media change |
| Our tanks | Clack 1.0 to 2.5 and Fleck 2510SXT 1.5 to 2.5 neutralizers | Tanks with a 2-1/2 inch top opening |
| Price | $99 | $35 |
✔ Help with your top-off
Call or text about how much calcite to add, the fill port cap, or letting the air out after a top-off. Help is by phone and text.
Frequently Asked Questions
30-Day Returns on Unopened Parts
Tell us within 3 days of delivery if the item is damaged, missing or wrong. For shipping damage, you file the carrier claim and we help with it.
Call 800-460-5810 within 30 days of delivery for approval before you send anything back. New, unopened items can be returned. A 25% restocking fee applies (waived on an exchange of equal or greater value), and you pay the return freight.
Before you order, check your box: our complete Clack 1.0 to 2.5 cu ft and Fleck 2510SXT 1.5 to 2.5 cu ft neutralizers ordered since mid-2024 come with one of these. On another brand's tank, text me a photo of the fill port first.
