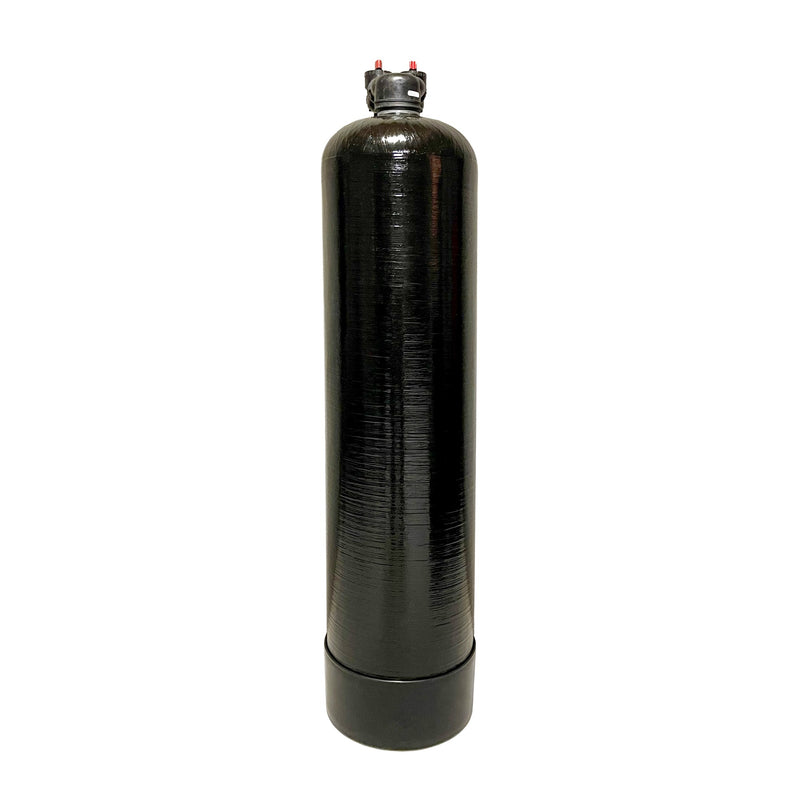

Salt-Free Water Conditioner | 2.5 cu ft High-Capacity Filtersorb SP3 (Clack C1190 + Vortech)
|
Salt-Free Water Conditioner | 2.5 cu ft High-Capacity Filtersorb SP3 (Clack C1190 + Vortech)
Not sure if salt-free is right for your water?
Salt-free conditioners only work in specific water conditions. Iron under 0.5 ppm. pH between 6.5 and 9.5. Free chlorine under 3 ppm. If your water test results are outside those numbers, you will need pre-treatment first, or you may be a better fit for a traditional salt softener. Call or text me with your water test and I will tell you straight up whether this system is right for your home, or whether something else fits better. No sales pressure.
Complete High-Capacity Salt-Free Conditioning System
- ✓ 2.5 cubic foot Vortech mineral tank (13" diameter x 54" tall), gravel-free distribution plate for even up-flow contact
- ✓ Clack C1190 non-electric in/out valve, NSF Certified, 1" male NPT inlet/outlet, no programming or timers
- ✓ 14 liters of Watch Water Filtersorb SP3, NAC scale-prevention media (NSF/ANSI 61 certified), nearly 2x the standard fill for higher contact time and longer life
- ✓ Bypass valve with 1" male threaded connections for easy isolation and service
- ✓ Free shipping to all lower 48 states, ships in 2 to 4 business days
- ✓ Free 7-day-a-week tech support from Aidan and the Mid Atlantic Water team
Heads up: A salt-free conditioner is not a salt-based softener. It does not remove calcium and magnesium. It transforms them into stable micro-crystals so they cannot stick to pipes, water heaters, or fixtures. Read the honest comparison here.
System Overview
| System Type | Non-electric, salt-free, up-flow scale prevention |
|---|---|
| Service Flow Rate | 12 to 15 GPM (continuous), good for 3 to 5 bathroom homes |
| Total System Height | 58" (with valve installed) |
| Connections | 1" male NPT inlet/outlet |
| Operating Pressure | 15 to 100 PSI |
| Operating Temperature | 41 to 149°F |
| Electricity | None |
| Drain Line | None |
| Salt | None, ever |
| Wastewater | Zero (no backwash, no regeneration) |
| Certification | Filtersorb SP3 NSF/ANSI 61 |
| Warranty | 5-year valve / 10-year tank |
| Made In | USA (system assembly), Germany (Filtersorb media) |
Vortech Mineral Tank (13" x 54")
| Dimensions | 13" diameter x 54" tall |
|---|---|
| Material | Polyglass composite over polyethylene liner |
| Distribution | Vortech bottom plate, gravel-free, slotted for circular up-flow |
| Tank Capacity | 2.5 cubic foot media volume |
| Top Opening | 2.5" x 8" NPT |
Clack C1190 Control Valve
| Type | Non-electric, in/out up-flow valve |
|---|---|
| Connections | 1" male NPT |
| Tank Thread | 2.5" NPSM |
| Material | Thermoplastic resin (NSF Certified) |
| Bypass | Included, lever-actuated |
Filtersorb SP3 Media (Watch Water Germany)
| Manufacturer | Watch Water GmbH (Germany) |
|---|---|
| Technology | Nucleation Assisted Crystallization (NAC), often marketed as Template Assisted Crystallization (TAC) |
| Composition | Modified ceramic beads, food-grade |
| Particle Size | 0.55 to 0.75 mm |
| Volume in This System | 14 liters (~2x the typical 7.5 L fill for a 13x54 tank) |
| Media Life | 5 to 7 years under typical residential conditions |
| Certification | NSF/ANSI 61 (material safety), tested by WQA, USA |
| Adds to Water | Nothing (no salt, no sodium, no chemicals) |
| Changes pH | No |
| Changes TDS | No |
Maximum Source Water Limits
| Hardness | Up to 75 grains per gallon (1338 ppm) |
|---|---|
| pH Range | 6.5 to 9.5 (use an acid neutralizer first if pH is below 6.5) |
| Iron | Less than 0.5 ppm (use an iron filter first if higher) |
| Manganese | Less than 0.05 ppm |
| Free Chlorine | Less than 3 ppm (use a carbon filter first on heavily chlorinated city water) |
| Copper | Less than 1.3 ppm |
Important: Filtersorb SP3 is a scale-prevention media, not a contaminant filter. It will not remove iron, sulfur, low pH, or chlorine. If you have any of these issues, install the matching pre-treatment system upstream.
⚡
No electricity. No drain line. No programming. This is one of the simplest whole-house water treatment systems to install. Most plumbers can install it in under an hour. DIY-friendly if you can sweat copper or work with PEX.
Installation Steps
- Shut off the main water supply and relieve pressure at a nearby faucet
- Place the tank where you want it (allow ~60" of vertical clearance for the valve and fill access)
- Plumb the inlet line to the valve inlet. Water enters through the center tube and flows down to the Vortech plate at the bottom of the tank
- Plumb the outlet line to your house plumbing
- Open the bypass valve, then slowly pressurize the system to fill the tank from the bottom up
- Run cold water at a fixture for 5 to 10 minutes to flush any media fines (water may look slightly cloudy at first, this is normal)
- Switch the valve to service position. Done. There is no programming, no schedule, no priming chemicals to add.
Recommended System Order
Well / City Supply
→
Pressure Tank
→
Sediment Filter
→
Acid Neutralizer (if pH<6.5)
→
Iron Filter (if iron>0.5 ppm)
→
Salt-Free Conditioner (this unit)
→
House
Need help with placement or sizing? Call or text Aidan at 800-460-5810. Real water treatment expert, 32 years of experience, available 7 days a week. We will look at your water test and tell you whether a salt-free conditioner is the right call for your home, or whether a traditional salt-based softener would serve you better.
✨
Almost zero maintenance. No salt to add, no brine tank to clean, no drain to monitor, no electricity to troubleshoot. The only thing you do is replace the Filtersorb SP3 media every 5 to 7 years.
Maintenance Schedule
- Daily / Monthly Nothing. No salt to add. No filter cartridges to swap. No backwash cycles to manage.
- Yearly Visual inspection. Look for leaks at the valve fittings. Check that the bypass valve still moves freely.
- Every 5 to 7 Years Replace the Filtersorb SP3 media. Watch Water rates the media for 5 to 7 years of normal residential use. If you notice scale starting to build up on faucets or in the water heater again, that is the signal that it is time.
- Every 3 to 6 Months Replace the sediment pre-filter cartridge (if you have a Big Blue or Rusco upstream). Sediment is the #1 enemy of any water treatment media. Shop sediment filters.
Replacement media: When it is time to replace, call or text us at 800-460-5810 and we will quote a 14-liter refill of genuine Watch Water Filtersorb SP3 (we keep it in stock). Plan to be without water for about 60 to 90 minutes during the swap.
Video Guides
Watch the complete water softener buyer's guide has 32 years of industry experience.
Complete Guide to Water Softeners (32 Years of Experience)
Complete Guide to Well Water Filtration Systems
The Honest #1 Salt-Free Water Conditioner for Whole-Home Use
Built with 14 liters of genuine German Filtersorb SP3, the gold standard for non-salt scale prevention
This is the high-capacity, professionally-built version of the salt-free water conditioner. It uses 14 liters of genuine Watch Water Filtersorb SP3 (the German original, NSF/ANSI 61 certified), nearly 2x the typical 13x54 tank fill, packed into a 13 x 54 Vortech mineral tank with a non-electric Clack C1190 in/out valve. Sized for a 3 to 5 bathroom home with 12 to 15 GPM continuous service flow.
Filtersorb SP3 uses Nucleation Assisted Crystallization (often marketed as Template Assisted Crystallization or TAC) to convert dissolved calcium and magnesium into stable, microscopic crystals that cannot adhere to pipes, water heaters, glass, or fixtures. The result: no new scale buildup, gradual removal of existing scale, and clean appliances, without adding salt or sodium to your water.
What it does NOT do: it does not soften water (you will not feel the slick, slippery feel of softened water on skin), it does not remove iron, sulfur, chlorine, or low pH, and it does not change pH or TDS. If you have any of those issues, install the matching pre-treatment first. We sell every component you need, and we will tell you exactly what to put in front of this system based on your water test.
✔
NSF/ANSI 61 Certified Media
✔
No Salt, Ever
✔
No Electricity Needed
✔
No Drain Required
✔
12-15 GPM Service Flow
✔
5 to 7 Year Media Life
✔
5-Yr Valve / 10-Yr Tank Warranty
| Feature | Our System | Others |
|---|---|---|
| Scale Prevention Media | ✔ 14 L Watch Water Filtersorb SP3 (Germany) | 5 to 7 L generic ceramic beads |
| Tank | ✔ 13 x 54 Vortech (2.5 cu ft) | 10 x 44 stock tank (1.0 cu ft) |
| Control Valve | ✔ Clack C1190 (NSF Certified) | Generic plastic head |
| Service Flow Rate | ✔ 12 to 15 GPM (3 to 5 bath homes) | 8 to 10 GPM (1 to 2 bath homes) |
| Media Life | ✔ 5 to 7 years | 2 to 3 years |
| Bypass Valve | ✔ Included, lever-actuated | Sold separately |
| NSF/ANSI 61 Media | ✔ Yes | Often unverified |
| Warranty | ✔ 5-yr valve / 10-yr tank | 1-year limited |
| Expert Phone Support | ✔ 7 days a week with Aidan | Email ticket queue |
Scale Prevention Media
✅ Us
14 L Watch Water Filtersorb SP3 (Germany)
❌ Them
5 to 7 L generic ceramic beads
Tank
✅ Us
13 x 54 Vortech (2.5 cu ft)
❌ Them
10 x 44 stock tank (1.0 cu ft)
Control Valve
✅ Us
Clack C1190 (NSF Certified)
❌ Them
Generic plastic head
Service Flow Rate
✅ Us
12 to 15 GPM (3 to 5 bath homes)
❌ Them
8 to 10 GPM (1 to 2 bath homes)
Media Life
✅ Us
5 to 7 years
❌ Them
2 to 3 years
Bypass Valve
✅ Us
Included, lever-actuated
❌ Them
Sold separately
NSF/ANSI 61 Media
✅ Us
Yes
❌ Them
Often unverified
Warranty
✅ Us
5-yr valve / 10-yr tank
❌ Them
1-year limited
Expert Phone Support
✅ Us
7 days a week with Aidan
❌ Them
Email ticket queue
✔ Real expert support, before and after the sale
I install these systems myself. I have done it for 32 years. When you call, you get me, not a script. We will talk through your installation, your maintenance schedule, and what to expect from a salt-free conditioner. And in 5 years when it is time to replace the Filtersorb SP3 media, just call back. We keep it in stock.
📞 Call Us
800-460-5810
✉️ Email Support
support@midatlanticwater.net
🕒 Live Hours
7 days a week
Frequently Asked Questions
