Pioneer Arsenic Removal System

Whole-house certified arsenic removal - removes both Arsenic III & V, no backwashing, no drain, no electricity

Video thumbnail
Watch This Before Buying Meet Aidan, your water treatment expert
Trusted by 10,000+ Homeowners
|
🇺🇸 Made in USA

Pioneer Arsenic Removal System

Whole-house certified arsenic removal - removes both Arsenic III & V, no backwashing, no drain, no electricity

Video thumbnail
Watch This Before Buying Meet Aidan, your water treatment expert
Free Shipping Included
Arrives ... to
Add-Ons
In Stock — Ships from Ohio warehouse by
Aidan
Not sure if this is the right arsenic filter for your water? Arsenic removal depends on your whole water chemistry, especially iron, hardness, and pH, and arsenic has to be the last stage in the treatment train. Send us your water test results and Aidan will review them personally. He'll tell you whether the Pioneer cartridge system or our tank-based arsenic system is the better fit, and whether you need iron removal upstream first.

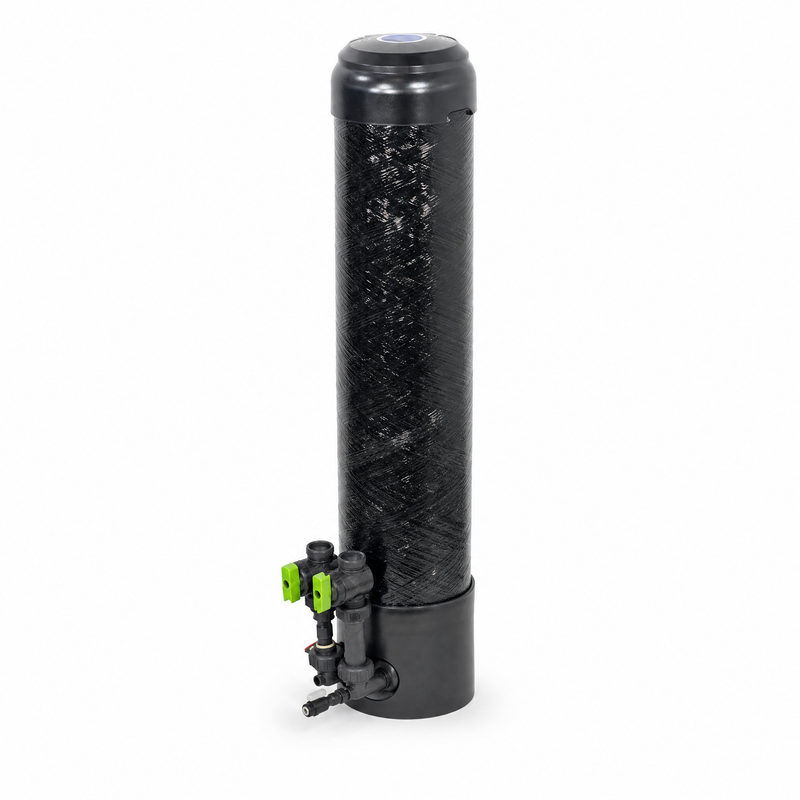

Complete Pioneer Arsenic Removal System

  • Enpress PIONEER cartridge tank (8" diameter x 40" tall) - 100% non-metallic construction that will not rust, rated to 125 PSI
  • ATOMUS F11 arsenic cartridge (CT-5020-0640RD-F11) - binary mixed-metal adsorption media that removes both Arsenic III and Arsenic V, WQA and IAPMO R&T certified
  • Bypass manifold with 1" MNPT connectors - standard threaded fittings, no gluing required, isolate the system without shutting off your house
  • 3/8" PEX drain valve kit with shut-off - makes draining the tank for cartridge change-outs clean and simple
  • Snap-ring top cap with red pressure-relief button - no tools needed for cartridge replacement
  • Free shipping to all lower 48 states
Metered Tank upgrade: Choosing the Metered Tank configuration adds the LED metered umbrella cap (3 AAA batteries) that tracks the gallons you have used and gives a color-coded signal as the cartridge nears its rated 125,000 gallon capacity. Because arsenic is invisible and breakthrough cannot be tasted or smelled, the meter is the easiest way to know you are replacing the cartridge on time.
Recommended: Install a 5 micron (or finer) sediment pre-filter upstream to keep particulates off the cartridge. If your water also has iron, that iron must be removed before this system. See the Installation tab for the correct treatment order.

System Overview

System TypeWhole-house cartridge tank arsenic filtration (point-of-entry)
MediaATOMUS F11 binary mixed-metal adsorption media (CT-5020-0640RD-F11)
Tank Size8" diameter x 40" tall PIONEER cartridge tank
Connections1" MNPT inlet/outlet (threaded, no gluing)
Rated Service FlowUp to 7 GPM
Operating Pressure20 - 125 PSI
Operating Temperature34 - 120 F
Operating pH Range5.5 - 9.5 (water above pH 8 may need adjustment for best performance)
Backwash / Drain / PowerNone required to operate (drain valve is for cartridge change-outs only)
Construction100% non-metallic - will not rust or corrode
Metered Tank UpgradeLED metered umbrella cap, 3 AAA batteries (optional configuration)

Certifications

NSF/ANSI 53 NSF/ANSI 61 NSF/ANSI 372 WQA Certified IAPMO R&T
Arsenic ReductionTested to NSF/ANSI 53 for both Arsenic III and Arsenic V reduction (WQA and IAPMO R&T certified system)
Material SafetyATOMUS F11 media certified to NSF/ANSI 61
Low Lead ContentATOMUS F11 media certified to NSF/ANSI 372
Disposal SafetyNon-leachable arsenic bond, passes USEPA TCLP and California WET tests (landfillable per local regulations)

Arsenic Removal Performance

Arsenic V (arsenate): reduced below 10 ppb
Arsenic III (arsenite): reduced below 10 ppb
Tested: 0.050 mg/L reduced to < 0.010 mg/L
No pre-oxidation of As III required
Resistant to silica, phosphate, vanadium interference
No air-oxidation control valve, no backwashing

Cartridge Life

Certified Capacity125,000 gallons at 7 GPM (reduces arsenic below the EPA 10 ppb MCL)
Replacement CartridgeATOMUS F11 (CT-5020-0640RD-F11)
New Cartridge FlushFlush to drain about 60 minutes at 7 GPM before use
No drain line. No electricity. No backwashing. Standard 1" NPT plumbing. The Pioneer installs inline on your main water line. The base configuration is fully passive. Only the optional Metered Tank upgrade uses 3 AAA batteries for its LED usage meter.
Treatment order matters for arsenic. Arsenic should be the last stage in your treatment train. If your water has iron, the iron must be removed first or it will foul the arsenic media. The recommended order is: sediment, then iron removal, then a softener if needed, then this arsenic filter. If your water test shows iron, call us before ordering so we can confirm the full system.

Installation Steps

  1. Shut off the main water supply and relieve pressure at a nearby faucet
  2. Cut into the main water line after any iron filter or softener and install the 1" MNPT connections (standard threaded fittings, no gluing)
  3. Attach the bypass manifold using the included 1" MNPT elbow or straight connectors
  4. Connect the 3/8" PEX drain valve kit so you can drain the tank for cartridge change-outs
  5. If you chose the Metered Tank, install 3 AAA batteries in the LED umbrella cap and set the meter to the cartridge capacity
  6. Open the bypass slowly, switch to service, and flush the new cartridge to drain for about 60 minutes at 7 GPM before use

Recommended System Placement

Well Pressure Tank Sediment Filter Iron Filter (if needed) Softener (if needed) Pioneer Arsenic Filter (this unit) House
Need help? Call or text Aidan at 800-460-5810 - available 7 days a week. Send your water test results and we will confirm the right treatment order and whether you need iron removal upstream first.
One cartridge, no backwashing, no salt, no drain. The ATOMUS F11 media works by adsorption, so there is no regeneration cycle to manage. You simply replace the cartridge when it reaches its rated capacity.

Maintenance Schedule

  • ~125,000 gal Replace the ATOMUS F11 arsenic cartridge at its rated capacity. Actual life depends on your arsenic level and water usage. The Metered Tank upgrade tracks gallons and signals when you are getting close.
  • Every 3-6 Months Replace the sediment pre-filter cartridge (if using one upstream) to keep particulates off the arsenic media.
  • Annual Test your treated water for arsenic to confirm the system is performing and to catch breakthrough early. Replace the 3 AAA meter batteries (Metered Tank only).

Cartridge Replacement

The Pioneer uses a snap-ring top cap, so no tools are required. Press the red pressure-relief button, drain the tank through the PEX drain valve, pull the snap ring, lift off the cap, and swap the cartridge. The replacement is the ATOMUS F11 (CT-5020-0640RD-F11). Because the spent media holds arsenic in a non-leachable bond, it passes USEPA TCLP and California WET tests and is landfillable where local regulations allow. Contact us for replacement cartridge pricing and availability.

Important: Arsenic has no color, taste, or smell, so cartridge breakthrough is invisible. Do not run the cartridge past its rated capacity. The Metered Tank upgrade exists for exactly this reason, and we recommend an annual arsenic test on the treated water regardless of which configuration you choose.
Questions about when to replace? Call or text 800-460-5810. We can help you estimate cartridge life from your water test results and household usage.

Video Guides

Watch how Aidan helps homeowners solve well water problems has 32 years of industry experience.


Why Choose the Pioneer for Whole-House Arsenic Removal?

Certified Removal of Both Arsenic III and Arsenic V for Your Entire Home

Arsenic is a naturally occurring contaminant in many groundwater wells, and it has no color, taste, or smell, so the only way to know it is there is a water test. There is no safe amount of long-term arsenic exposure, and the EPA enforceable limit for drinking water is 10 ppb. It occurs in two forms, Arsenic III (arsenite) and Arsenic V (arsenate), and most arsenic filters only remove one of them. The Pioneer Arsenic Removal System uses ATOMUS F11, a binary mixed-metal adsorption media that removes both Arsenic III and Arsenic V at the same time, with no pre-oxidation, no air-oxidation control valve, and no backwashing. The complete system is certified by WQA and IAPMO R&T and tested to NSF/ANSI 53 to reduce 0.050 mg/L of arsenic to below the 0.010 mg/L (10 ppb) limit for 125,000 gallons at 7 GPM. The media is also certified to NSF/ANSI 61 and NSF/ANSI 372. Built around the 8 by 40 PIONEER cartridge tank, the system is 100% non-metallic and treats your entire home at the point of entry. The cartridge swaps with a snap ring and no tools, and the spent media holds arsenic in a non-leachable bond that passes the USEPA TCLP and California WET tests. Because arsenic must be the last stage in your treatment train, send us your water test first so we can confirm iron and pH are handled upstream.
Removes Arsenic III & V
WQA & IAPMO Certified
125,000 Gallon Capacity
No Pre-Oxidation Needed
No Backwash, No Drain, No Power
Snap-Ring Cartridge Swap
100% Non-Metallic Tank
Mid Atlantic Water Trust Logos
Feature Our System Others
Arsenic Forms Removed Both As III and As V Simultaneously Often As V Only (Needs Pre-Oxidation)
Certification WQA + IAPMO R&T to NSF/ANSI 53 Uncertified or Untested
Pre-Treatment No Oxidation or Control Valve Needed May Require Chlorine / Air Injection
Operation No Backwash, No Drain, No Electricity Backwashing or Powered Valves
Coverage Whole House (Point of Entry) Single Faucet (Point of Use)
Spent Media Disposal Non-Leachable, Passes TCLP / WET May Leach Arsenic in Landfill
Cartridge Change No-Tool Snap Ring Design Wrench / Tools Required
Expert Support 7-Day Phone, Text & Email Limited or None
Arsenic Forms Removed
✅ Us Both As III and As V Simultaneously
❌ Them Often As V Only (Needs Pre-Oxidation)
Certification
✅ Us WQA + IAPMO R&T to NSF/ANSI 53
❌ Them Uncertified or Untested
Pre-Treatment
✅ Us No Oxidation or Control Valve Needed
❌ Them May Require Chlorine / Air Injection
Operation
✅ Us No Backwash, No Drain, No Electricity
❌ Them Backwashing or Powered Valves
Coverage
✅ Us Whole House (Point of Entry)
❌ Them Single Faucet (Point of Use)
Spent Media Disposal
✅ Us Non-Leachable, Passes TCLP / WET
❌ Them May Leach Arsenic in Landfill
Cartridge Change
✅ Us No-Tool Snap Ring Design
❌ Them Wrench / Tools Required
Expert Support
✅ Us 7-Day Phone, Text & Email
❌ Them Limited or None
Aidan

Expert Arsenic & Well Water Support

From reading your water test to getting the treatment order right to installation guidance, Aidan provides hands-on support at every step. Real person, real expertise, 29+ years of water treatment experience. No bots, no scripts.

📞 Call Us 800-460-5810
✉️ Email Support support@midatlanticwater.net
🕒 Live Hours 7 days a week

Frequently Asked Questions

Yes. The ATOMUS F11 media is a binary mixed-metal adsorption media engineered to remove both Arsenic III (arsenite) and Arsenic V (arsenate) at the same time. Many arsenic medias only capture Arsenic V and require you to chemically pre-oxidate the Arsenic III first. The Pioneer does not need any pre-oxidation, chlorine injection, or air-oxidation control valve. It is tested to NSF/ANSI 53 to reduce 0.050 mg/L of either form to below 0.010 mg/L, the EPA limit of 10 ppb.

Yes, if your water has iron. Iron will foul the arsenic media and shorten its life, so arsenic removal should be the last stage in your treatment train: sediment first, then iron removal, then a softener if needed, then this arsenic filter. If your water test shows iron, call or text Aidan at 800-460-5810 before ordering and we will confirm the full system you need. Skipping this step is the most common reason an arsenic filter underperforms.

Both are excellent whole-house options, they just use different technology. Our tank-based arsenic system uses an arsenic-selective ion-exchange resin. This Pioneer system uses a sealed ATOMUS F11 adsorption cartridge inside an 8 by 40 cartridge tank. The cartridge approach means no media handling, no backwashing, and a simple snap-ring cartridge swap when capacity is reached. If you are deciding between them, send us your water test and we will tell you which fits your water chemistry and budget. You can compare both on our arsenic filters collection page.

The ATOMUS F11 cartridge is certified for 125,000 gallons at 7 GPM while keeping arsenic below the EPA limit. Real-world life depends on your starting arsenic level and how much water your household uses. A typical household using 80 to 120 gallons per day will get several years from a cartridge. The Metered Tank upgrade tracks gallons used and signals as you approach capacity, which is especially useful because arsenic breakthrough is invisible.

The Standard (Bypass Tank) configuration is fully passive and includes the bypass manifold and drain valve. The Metered Tank upgrade adds an LED metered umbrella cap that counts the gallons you have used and gives a color-coded warning as the cartridge nears capacity. Because arsenic has no taste, color, or smell, you cannot detect breakthrough on your own. We recommend the Metered Tank for most homes so you replace the cartridge on time, and an annual arsenic test on the treated water either way.

The system operates between pH 5.5 and 9.5. Performance is best within that range. If your water is above pH 8, it may need adjustment for top performance, and very acidic water below 5.5 should be neutralized first. The ATOMUS F11 media is also more resistant to interference from silica, phosphate, and vanadium than many other arsenic medias. Send us your full water test and we will confirm it is a good fit before you buy.

Yes. The Pioneer uses standard 1" MNPT threaded connections with no gluing, and the bypass manifold comes ready to connect. You cut into your main line downstream of any iron filter or softener, which is standard residential plumbing. The base configuration needs no drain and no power. Plan a new-cartridge flush of about 60 minutes at 7 GPM before use. Call or text Aidan at 800-460-5810 if you want to be walked through it.

Yes. The ATOMUS F11 media binds arsenic in a stable, non-leachable form that has been evaluated against the USEPA TCLP and California WET tests, so it does not release the captured arsenic in landfill conditions. The cartridge is landfillable when disposed of in accordance with your local, state, and federal regulations.

Pioneer Arsenic Removal System
Pioneer Arsenic Remova... $1,995.00

Why the Pioneer Costs More Than Basic Arsenic Filters

Certified Whole-House Arsenic Removal vs Point-of-Use Alternatives

What You Get With Budget Arsenic Filters

Most budget arsenic filters are point-of-use units that only treat one faucet, or they use medias that capture Arsenic V but not Arsenic III. Removing only one form leaves the other in your water, and many wells contain both. To make those filters work on Arsenic III you have to add chlorine or air injection to pre-oxidate it first, which adds cost and complexity.

Plenty of arsenic cartridges are also uncertified, so there is no third-party verification that they actually bring arsenic below the EPA limit. And some spent arsenic medias can leach the captured arsenic back out in a landfill, creating a disposal problem.

The Real Cost Comparison

Budget Point-of-Use Arsenic Filter
$150-600
  • Lifespan: Fails in 3-4 years
  • Result: Frequent repairs, poor water quality, leaks
  • Support: None
One faucet only, often As V only
Best Long-Term Value
Pioneer Arsenic Removal System
$1,995
  • Lifespan: Lasts 15+ years
  • Result: Done right the first time, peace of mind
  • Support: Lifetime USA Support
Whole house, both As III & V, certified

A typical household uses 80 to 120 gallons per day. At 125,000 gallons of certified arsenic capacity, the cartridge lasts several years for most homes, which works out to a low daily cost for certified, whole-house arsenic protection. Cheaper point-of-use filters cost less upfront but only protect one faucet and may not be certified to remove both forms of arsenic.

What You Get With the Pioneer

The Pioneer uses ATOMUS F11, a binary mixed-metal adsorption media that removes both Arsenic III and Arsenic V at once with no pre-oxidation, no control valve, and no backwashing. The complete system is certified by WQA and IAPMO R&T and tested to NSF/ANSI 53, with the media certified to NSF/ANSI 61 and NSF/ANSI 372. It treats your whole house at the point of entry, not just one tap.

The 8 by 40 cartridge tank is 100% non-metallic, the cartridge swaps with a snap ring and no tools, and the spent media holds arsenic in a non-leachable bond that passes the USEPA TCLP and California WET tests. You also get 7-day-a-week expert support from people with 29+ years of water treatment experience.
