Not sure which lead system you need?
I'm the guy in the videos. Lead treatment is sized from a lab number and your plumbing, not fear. Send me your test result or your utility's service line notice and I'll tell you exactly what fits: the certified whole-house Pioneer, a certified RO at the kitchen tap, or just the $199 test first.

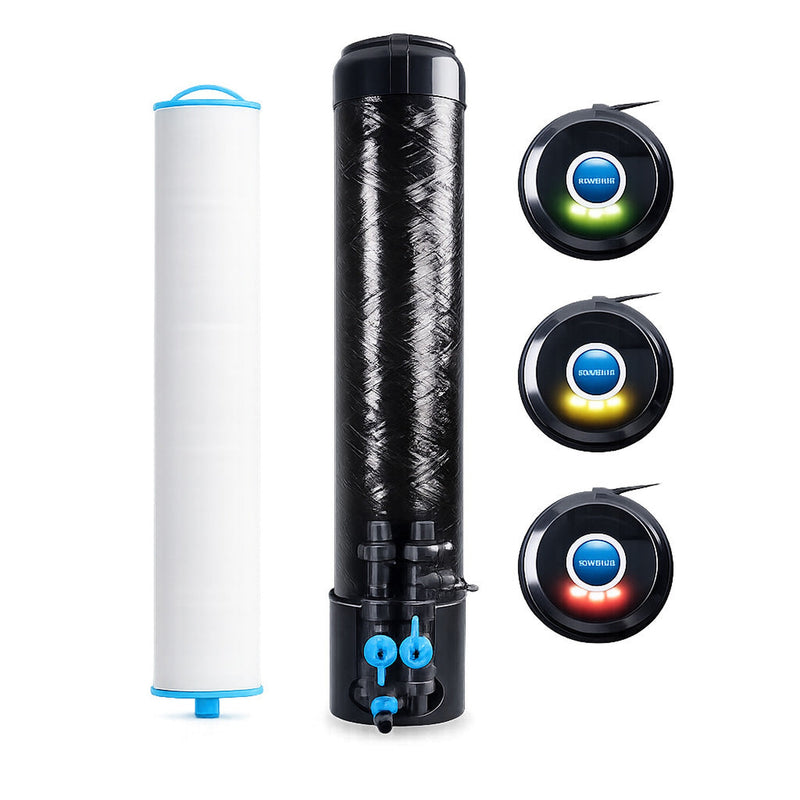

Complete Pioneer Lead Removal System
- ✓ Enpress E3-M cartridge tank (8" diameter x 40" tall) - 100% non-metallic, NSF 44 and 61 listed, tested to 150 PSI with 4:1 burst safety factor
- ✓ CT-05-CB-AMCYL 0.5 micron carbon block filter - NSF/ANSI 53 certified for lead and cyst reduction, NSF/ANSI P473 certified for PFOA/PFOS removal
- ✓ Integrated bypass valve with 1" MNPT connectors - no gluing required, standard threaded fittings
- ✓ Metered umbrella cap with LED status indicator - tracks water usage and alerts you when it's time to replace the filter (color-coded notification)
- ✓ 3/8" drain fitting with shut-off - integrated into the inlet side for draining during filter change-out
- ✓ Snap-ring top cap - no tools needed for filter replacement
- ✓ Free shipping to all lower 48 states
Recommended: Install a sediment pre-filter upstream to protect the carbon block from particulates and extend cartridge life. Especially important for well water applications.
System Overview
| System Type | Whole-house cartridge tank filtration (point-of-entry) |
|---|---|
| Filter Type | 0.5 micron certified carbon block (CT-05-CB-AMCYL) |
| Tank Size | Approx. 8" diameter x 40" tall |
| Connections | 1" NPT inlet/outlet |
| Max Flow Rate | 15 GPM (lead removal rated at 4.51 GPM) |
| Operating Pressure | 20 - 125 PSI |
| Operating Temperature | 34 - 120 F |
| Electrical | Grounded 110V outlet + 3 AAA batteries (for LED meter) |
| Pressure Relief | Yes - button on top cap |
| System Weight | ~41 lbs (tank 21 lbs + cartridge 20 lbs) |
| Construction | 100% non-metallic - will not rust |
| Made In | USA |
Certifications
NSF/ANSI 53
NSF/ANSI P473
NSF 44 & 61
IAPMO R&T
| NSF/ANSI 53 | Certified for lead and cyst reduction (IAPMO R&T) |
|---|---|
| NSF/ANSI P473 | Certified for PFOA and PFOS removal |
| NSF 44 & 61 | Materials and structural integrity (NSF Intl.) |
| Burst Test | Tested to 150 PSI with 4:1 safety factor |
Contaminant Removal Performance
✓ Lead: 99.62% (100K gal at 4.51 GPM)
✓ PFOA/PFOS: 97.8% (100K gal at 4.51 GPM)
✓ Chlorine: >90% (300K gal at 15 GPM)
✓ Chloramine: >85% (150K gal at 8 GPM)
✓ Giardia/Cryptosporidium: >99.95%
✓ Sediment: 0.5 micron filtration
Cartridge Life
| Lead/PFOA/PFOS | 100,000 gallons at 4.51 GPM |
|---|---|
| Chlorine | >300,000 gallons at 15 GPM |
| Chloramine | >150,000 gallons at 8 GPM |
⚡
No drain line. No programming. Standard 1" NPT plumbing. The Pioneer installs inline on your main water line. Just needs a grounded 110V outlet nearby for the LED usage meter.
Installation Steps
- Shut off the main water supply and relieve pressure at a nearby faucet
- Cut into the main water line and install the Pioneer's 1" NPT connections (standard threaded fittings, no gluing)
- Connect the bypass valve using the included 1" MNPT elbow or straight connectors
- Connect the 3/8" drain fitting (John Guest quick-connect) to a nearby drain or bucket for cartridge change-outs
- Plug the LED meter into a grounded 110V outlet and insert 3 AAA batteries
- Open the bypass slowly, switch to service position, and run water for 10-15 minutes to flush carbon fines
Recommended System Placement
City Supply / Well
→
Pressure Tank (well)
→
Sediment Pre-Filter
→
Pioneer Lead Filter (this unit)
→
House
Need help? Call or text Aidan at 800-460-5810 - available 7 days a week for installation guidance. The Pioneer is designed for DIY installation, but we're here to walk you through it step by step.
✨
The LED meter does the thinking for you. The built-in metered umbrella cap tracks water usage and provides a color-coded status indicator, so you know exactly when the cartridge needs replacing.
Maintenance Schedule
- LED Indicator Replace the carbon block cartridge when the LED meter signals replacement. Typical life: 100,000 gallons for lead/PFOA/PFOS removal, up to 300,000 gallons for chlorine removal. Actual life depends on your water quality and usage.
- Every 3-6 Months Replace sediment pre-filter cartridge (if using one upstream). Protects the Pioneer's 0.5 micron carbon block from clogging with sediment, extending cartridge life.
- Annual Replace 3 AAA batteries in the LED meter unit.
Cartridge Replacement
The Pioneer uses snap-ring technology - no tools required. Press the red pressure relief button, pull the snap ring, lift off the top cap, and swap the cartridge. The replacement cartridge is the CT-05-CB-AMCYL (Enpress part number). Contact us for replacement cartridge pricing and availability.
Important: If you have high chlorine or chloramine levels in your water, they will consume the carbon block capacity faster, reducing the cartridge's lead removal life. Consider adding a whole-house carbon filter upstream to handle chlorine/chloramine and let the Pioneer focus on lead and PFAS removal. This can extend your Pioneer cartridge life significantly.
Questions about when to replace? Call or text 800-460-5810. We can help you estimate cartridge life based on your water test results and household usage.
What homeowners are saying
Video Guides
Watch how Aidan helps homeowners solve water quality problems has 32 years of industry experience.
Complete Guide to Well Water Filtration Systems
Why Choose the Pioneer for Whole-House Lead Removal?
NSF 53 Certified Lead Removal for Your Entire Home
Lead in drinking water is a serious health risk with no safe exposure level. It enters your water through corroding pipes, solder joints, and brass fixtures - not from your water source. Homes built before 1986 are at highest risk, but lead service lines affect communities nationwide. The EPA action level is 15 ppb, but health experts increasingly recommend treatment at any detectable level.
The Pioneer Lead Removal System is one of the few whole-house filters independently certified to remove both soluble and particulate lead. The 0.5 micron carbon block removes 99.62% of lead at 4.51 GPM for 100,000 gallons - certified by IAPMO R&T to NSF/ANSI Standard 53. It also carries NSF P473 certification for PFOA/PFOS removal at 97.8%, plus removes >99.95% of Giardia and Cryptosporidium cysts.
Unlike standard cartridge housings that use coarse 5-25 micron filters, the Pioneer's 0.5 micron carbon block uses ionic bonding to capture dissolved lead that passes through ordinary filters. The built-in LED metered cap tracks usage and signals when it's time to replace the cartridge. No guessing, no calendar reminders. Designed for both well water and city water applications.
✔
NSF 53 Certified for Lead
✔
NSF P473 for PFOA/PFOS
✔
99.62% Lead Removal
✔
0.5 Micron Carbon Block
✔
LED Usage Meter
✔
No-Tool Cartridge Swap
✔
Made in USA
| Feature | Our System | Others |
|---|---|---|
| Lead Removal | ✔ 99.62% (NSF 53 Certified) | Varies - Often Uncertified |
| PFOA/PFOS Removal | ✔ 97.8% (NSF P473 Certified) | Not Certified or Tested |
| Cyst Removal | ✔ >99.95% (Giardia, Crypto) | Not Rated for Cysts |
| Filtration Level | ✔ 0.5 Micron Carbon Block | 5-25 Micron Typical |
| Filter Life Tracking | ✔ LED Metered Status Display | Manual Guessing |
| Cartridge Replacement | ✔ No-Tool Snap Ring Design | Wrench/Tools Required |
| Certifications | ✔ NSF 53, P473, 44, 61 + IAPMO | Limited or None |
| Expert Support | ✔ 7-Day Phone, Text & Email | Limited or None |
| Construction | ✔ 100% Non-Metallic | Metal Housings (Corrosion Risk) |
Lead Removal
✅ Us
99.62% (NSF 53 Certified)
❌ Them
Varies - Often Uncertified
PFOA/PFOS Removal
✅ Us
97.8% (NSF P473 Certified)
❌ Them
Not Certified or Tested
Cyst Removal
✅ Us
>99.95% (Giardia, Crypto)
❌ Them
Not Rated for Cysts
Filtration Level
✅ Us
0.5 Micron Carbon Block
❌ Them
5-25 Micron Typical
Filter Life Tracking
✅ Us
LED Metered Status Display
❌ Them
Manual Guessing
Cartridge Replacement
✅ Us
No-Tool Snap Ring Design
❌ Them
Wrench/Tools Required
Certifications
✅ Us
NSF 53, P473, 44, 61 + IAPMO
❌ Them
Limited or None
Expert Support
✅ Us
7-Day Phone, Text & Email
❌ Them
Limited or None
Construction
✅ Us
100% Non-Metallic
❌ Them
Metal Housings (Corrosion Risk)
✔ Free Tech Support
Buy with us and you have a real water-treatment expert to call whenever you need help. Reading a lead lab report, cartridge replacement timing, install questions, whatever comes up, you have my number.
