0% Complete
Installation Video
1-2 Hours

Install Guide

Non-Backwashing Acid Neutralizer

In This Package

Needed for Installation

Available at Lowe’s or Home Depot

1

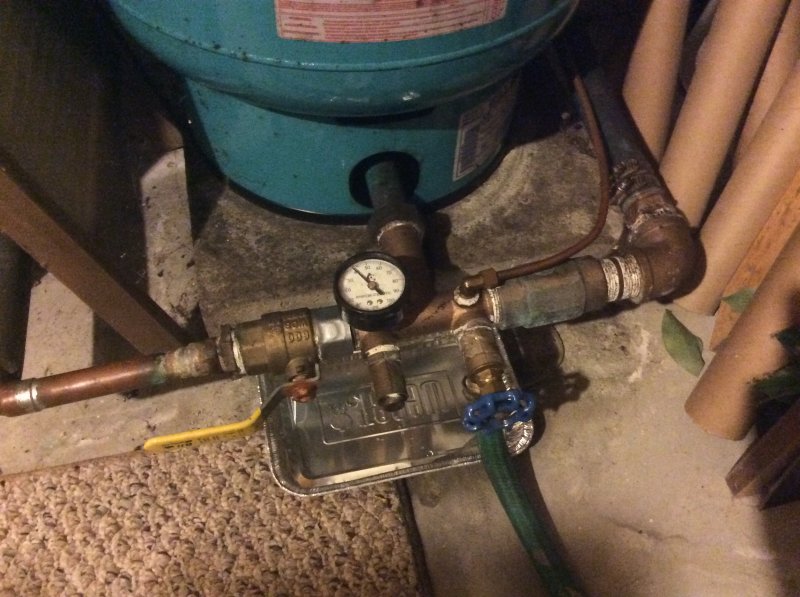

Remove Old Copper

Cut out any untreated copper plumbing from the well tank to where the unit will sit. Copper corrodes with acid water.

Tip Use CPVC from well tank to unit.
Mark Done
2

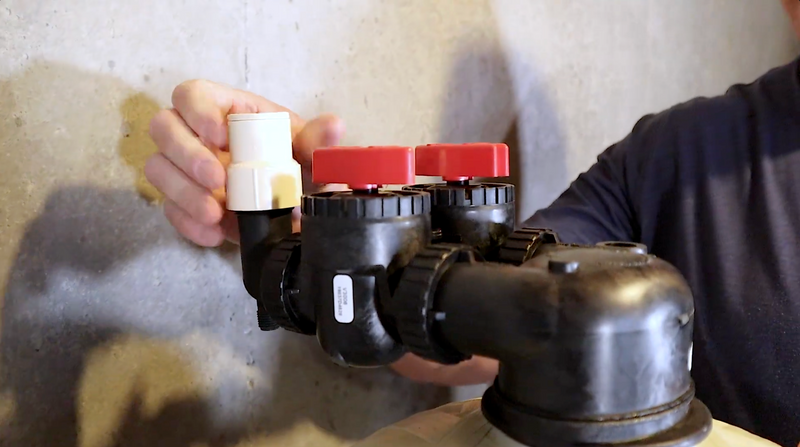

Prepare Threaded Adapters

You need to convert the unit's 1" threads to ¾" pipe. Use a 1" Female Adapter and glue a 1" x ¾" Bushing into it.

[IF:pipe_size=3/4 inch]

Mark Done
3

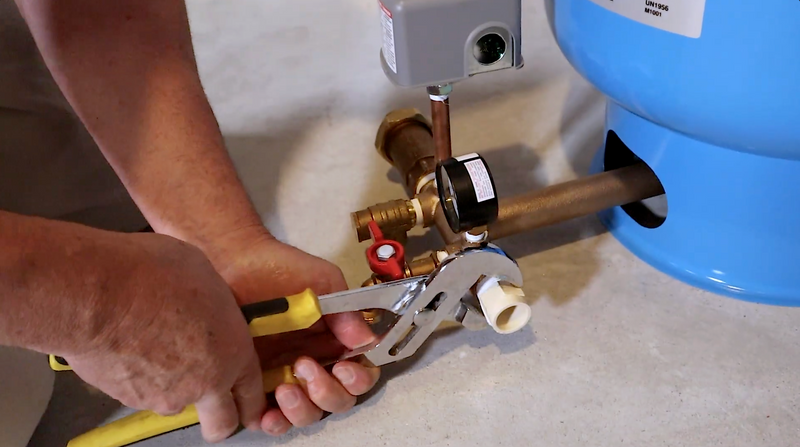

Prepare Well Tank Connection

Use a 1" [MATERIAL] Female Adapter. Wrap the threads with Teflon tape 6 to 8 times. Tighten by hand, then finish snug with channel locks.

[IF:pipe_size=1 inch]

Danger Do not overtighten or you will crack the fitting.
Mark Done
4

Prepare Well Tank Connection

Use a ¾" [MATERIAL] Male Adapter. Wrap the threads with Teflon tape 6 to 8 times. Tighten by hand, then finish snug with channel locks.

[IF:pipe_size=3/4 inch]

Danger Do not overtighten or you will crack the fitting.
Mark Done
5

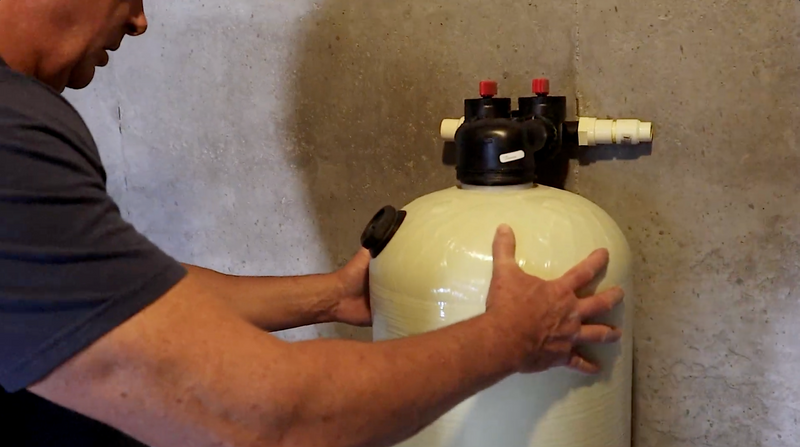

Position the Tank

Place the tank where you want it installed. It should sit about 1.5 to 2 inches away from the wall.

Mark Done
6

Fill Tank with Calcite+FloMag Mix

When using calcite and FloMag you will need a storage bin for mixing which is available at Walmart. Using a storage bin dump in 1 bag of calcite and the required amount of FloMag. Mix well then add to the tank. Remember to tape of center tube. Repeat this process until all bags of calcite are used. Store the remaining FloMag for future use.

[IF:media=Calcite & FloMag]

Mark Done
7

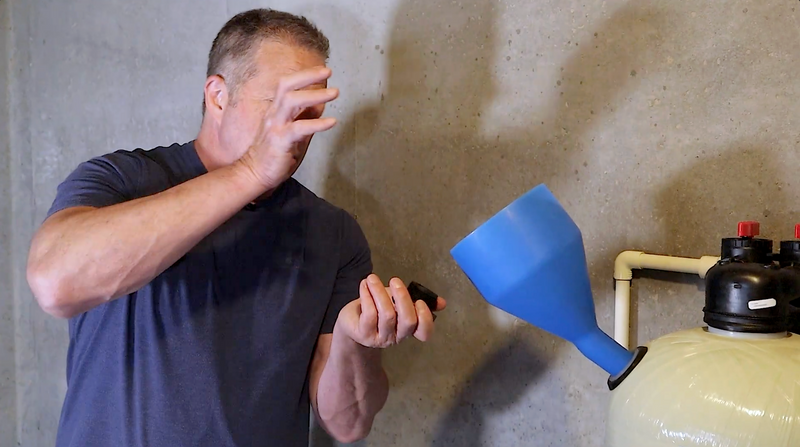

Fill With Media

1. Place tape over center tube to prevent calcite from getting in.
2. Insert the Fill Funnel.
3. Pour in all bags of Calcite.
4. Remove the tape when done.

[IF:media=Calcite]

Mark Done
8

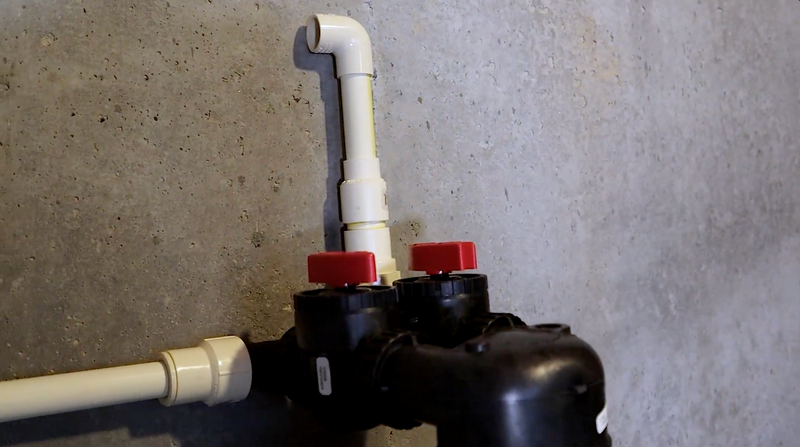

Connect Inlet (Upflow)

Connect the pipe from your well tank to the upflow or riser inlet on the valve. Install the Shut-Off Ball Valve in this line.

Mark Done
9

Connect Outlet

Connect the downflow outlet side back to the main house line.

Tip Connecting to copper? Use a SharkBite fitting for an easy push-to-connect seal.
Mark Done
10

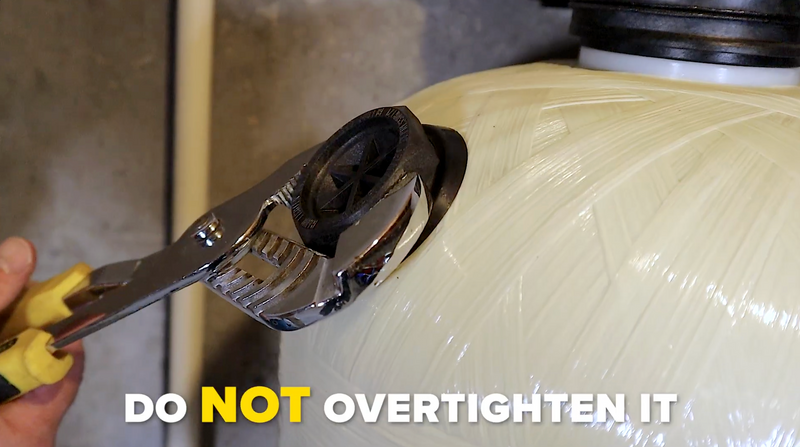

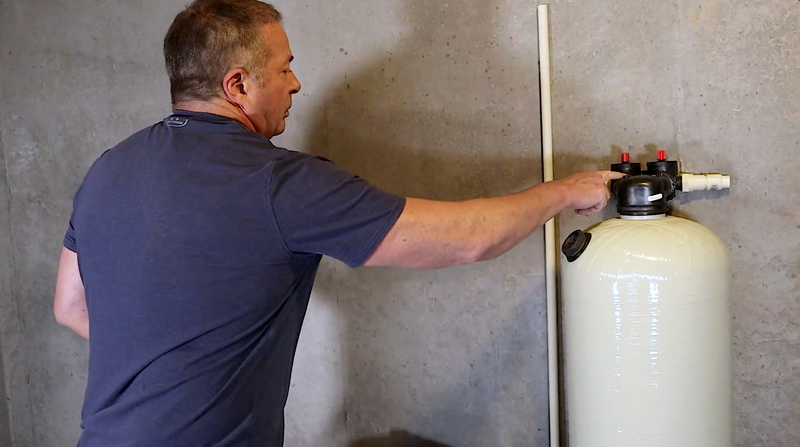

Pressurize System

1. Open ball valve ¼ turn to fill tank slowly. Listen for air escaping.
2. Hand tighten the head when water reaches top.
3. Use channel locks to turn ¼ to ½ turn more.

Danger Do not over-tighten; doing so could crack the tank, voiding the warranty.
Mark Done
11

Flush & Finish

Run water from an outside hose or tub for 10-15 minutes until the water runs clear. Once clear, you can run water to the rest of the house.

Success You have successfully installed the system.
Mark Done

Install Guide

Non-Backwashing Acid Neutralizer
SUPPORT: 800-460-5810
TIME: 1-2 Hours

In The Box

  • 5 Bags Calcite Media
  • Clack C1190 Control Head
  • Clack Bypass Valve
  • 1" Threaded Male Connectors
  • Fill Funnel & Service Funnel

Hardware Store List

  • Pipe Cutters & Channel Locks
  • 20ft of [PIPE_SIZE] [MATERIAL] Pipe
  • x15-20 [PIPE_SIZE] [MATERIAL] 90° Elbows
  • [PIPE_SIZE] [MATERIAL] Ball Valve (Shut-off)
  • Oatley CPVC Yellow Glue [IF:material=CPVC]
  • Teflon Tape
  • 1" Female Adapter (x2)
  • 1" x ¾" Bushing (x2) [IF:pipe_size=3/4 inch]
  • Storage bin for mixing Calcite & FloMag [IF:media=Calcite & FloMag]
1

Remove Old Copper

Cut out any untreated copper plumbing from the well tank to where the unit will sit. Copper corrodes with acid water.

TIP: Use CPVC from well tank to unit.
Done ☐
2

Prepare Threaded Adapters

You need to convert the unit's 1" threads to ¾" pipe. Use a 1" Female Adapter and glue a 1" x ¾" Bushing into it.

[IF:pipe_size=3/4 inch]

Done ☐
3

Prepare Well Tank Connection

Use a 1" [MATERIAL] Female Adapter. Wrap the threads with Teflon tape 6 to 8 times. Tighten by hand, then finish snug with channel locks.

[IF:pipe_size=1 inch]

DANGER: Do not overtighten or you will crack the fitting.
Done ☐
4

Prepare Well Tank Connection

Use a ¾" [MATERIAL] Male Adapter. Wrap the threads with Teflon tape 6 to 8 times. Tighten by hand, then finish snug with channel locks.

[IF:pipe_size=3/4 inch]

DANGER: Do not overtighten or you will crack the fitting.
Done ☐
5

Position the Tank

Place the tank where you want it installed. It should sit about 1.5 to 2 inches away from the wall.

Done ☐
6

Fill Tank with Calcite+FloMag Mix

When using calcite and FloMag you will need a storage bin for mixing which is available at Walmart. Using a storage bin dump in 1 bag of calcite and the required amount of FloMag. Mix well then add to the tank. Remember to tape of center tube. Repeat this process until all bags of calcite are used. Store the remaining FloMag for future use.

[IF:media=Calcite & FloMag]

Done ☐
7

Fill With Media

1. Place tape over center tube to prevent calcite from getting in.
2. Insert the Fill Funnel.
3. Pour in all bags of Calcite.
4. Remove the tape when done.

[IF:media=Calcite]

Done ☐
8

Connect Inlet (Upflow)

Connect the pipe from your well tank to the upflow or riser inlet on the valve. Install the Shut-Off Ball Valve in this line.

Done ☐
9

Connect Outlet

Connect the downflow outlet side back to the main house line.

TIP: Connecting to copper? Use a SharkBite fitting for an easy push-to-connect seal.
Done ☐
10

Pressurize System

1. Open ball valve ¼ turn to fill tank slowly. Listen for air escaping.
2. Hand tighten the head when water reaches top.
3. Use channel locks to turn ¼ to ½ turn more.

DANGER: Do not over-tighten; doing so could crack the tank, voiding the warranty.
Done ☐
11

Flush & Finish

Run water from an outside hose or tub for 10-15 minutes until the water runs clear. Once clear, you can run water to the rest of the house.

SUCCESS: You have successfully installed the system.
Done ☐
